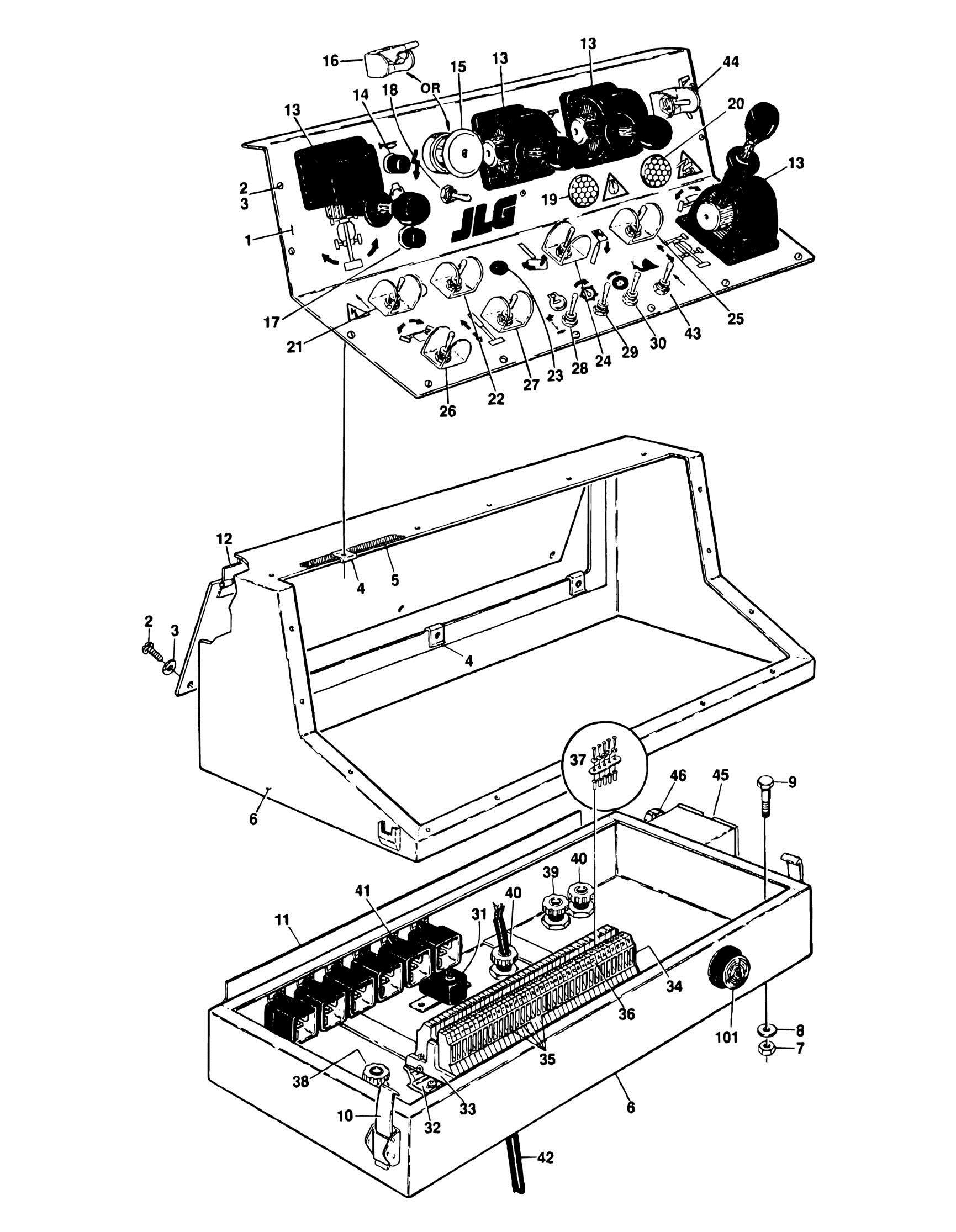

FIGURE 4-7. CONSOLE BOX ASSEMBLY - PQ CONTROLLERS AND VICKERS VALVE
ITEM PART NUMBER QTY
DESCRIPTION
Ref CONSOLE BOX ASSEMBLY - PQ CONTROLLERS AND
VICKERS VALVE
0860659 Ref Gas, Diesel and Dual Fuel Machines Built (April 1990 to
January 1993)
0860837 Ref Gas, Diesel and Dual Fuel Machines Built (January 1993 to
Present) without Steer In Drive Controller
0860850 Ref Gas, Diesel and Dual Fuel Machines Built (January 1993 To
Present) with Steer In Drive Controller
0254438 Ref Receptacle Installation - 110V 1 Ref Decal/Lid Plate Options: 1 3251894 1 Lid (English Language) (Prior to January 1993) 1 3252224 1 Lid (International Symbols) (January 1993 to May 1994) 1 3252382 1 Lid (International Symbols) (May 1994 to November 1994) 1 3538392 1 Plate, Lid (November 1994 to Present) 1 1702402 1 Decal, Console (November 1994 to Present) 2 0751006 18 Screw, Pan Head #10-24NC x 3/4in 3 4740120 18 Washer, Nylon 4 3300177 18 Nut, Tinnerman 5 4420037 14 ft Tape, Insulation 6 0860538 1 Box, Control (Includes Items 10, 11 & 12) 7 3311505 4 Nut 5/16in-18NC 8 4751500 4 Flatwasher 5/16in 9 0641508 4 Bolt 5/16in-18NC x 1in 10 2940052 2 Latch 11 2600132 1 Hinge (Top to Bottom) 12 2600105 1 Hinge (Access Door) 13 Ref Controller Assembly Options (Note: Refer to JLG Manual 3120351 for more information): 13 1600094 4 Controller, PQ (April 1990 to January 1993) 13 7003737 4 Electric Assembly 13 1600141 3 Controller, PQ (Switch and Lift Machines Built January 1993 to Present) 13 7011907 1 Electrical Assembly 13 7003751 1 Potentiometer 13 1600140 1 Controller, PQ - With Steer Switch in Controller (Drive) (Machines Built January 1993 to Present) 13 7011903 1 Electrical Assembly 13 7003751 1 Potentiometer 13 7003789 1 Switch, Roller 13 1600141 4 Controller, PQ - Without Steer Switch in Controller (Drive) (Machines Built January 1993 to Present) 13 7011907 1 Electrical Assembly 13 7003751 1 Potentiometer 13 2560038 AR Knob (Lift) 13 2560040 AR Knob (Swing) 13 2560041 AR Knob (Drive) 13 2560112 AR Knob (Plain) 14 4360274 1 Switch, Push Button (Horn) 14 3790015 1 O-Ring 15 4360289 1 Switch, Push-Pull (Emergency Stop) (Machines Built January 1993 to Present) 15 7012611 1 Mushroom Head
REV
D
5
5
2
ITEM PART NUMBER QTY DESCRIPTION
15 7012612 1 Boot 15 4360282 1 Block, Contact - 2 P.N.C. (Machines Built January 1993 to Present) 16 4360199 1 Switch, Toggle (Emergency Stop) (Machines Built Prior to January 1993) 16 3790012 1 O-Ring 16 4060229 1 Shield 16 4360141 1 Guard 17 4360274 1 Switch, Push Button (Start) 17 3790015 1 O-Ring 18 3520026 1 Plug, Hole (Standard) 18 4360199 1 Switch, Toggle (Glow Plug - Optional) 18 3790012 1 O-Ring (Glow Plug - Option) 18 3251872 1 Nameplate (Glow Plug Option) 19 Ref Lamp Options (Engine Distress) (Optional): 19 2920015 1 Lamp (January 1993 to Present) 19 2920026 1 Lamp (Prior to January 1993) 19 2920029 1 Bulb 19 3252074 1 Nameplate 19 3740049 1 Relay 19 4921361 1 Harness (Deutz Only) 20 2920015 1 Lamp (Chassis Out of Level) 21 4360200 1 Switch, Toggle (Auxiliary Power) 21 3790012 1 O-Ring 21 4060229 1 Shield 22 4360199 1 Switch, Toggle (Lights) (Optional) 22 3790012 1 O-Ring 23 3520028 1 Plug, Hole 24 4360202 1 Switch, Toggle (Rotate) (Optional) 24 4060229 1 Shield 24 3790012 1 O-Ring 25 4360202 1 Switch, Toggle (Level) 25 4060229 1 Shield 25 3790012 1 O-Ring 26 Ref Switch, Toggle (Steer) Options: 26 4360198 1 Switch, Toggle (Prior to January 1993) 26 4360202 1 Switch, Toggle (January 1993 to Present) 26 4060229 1 Shield 26 3790012 1 O-Ring 27 4360202 1 Switch, Toggle (Main Tele) 27 4060229 1 Shield 27 3790012 1 O-Ring 28 4360199 1 Switch, Toggle (Engine Speed) 28 3790012 1 O-Ring 29 4360199 1 Switch, Toggle (Pump Volume) 29 3790012 1 O-Ring 30 4360199 1 Switch, Toggle (Wheel Speed) 30 3790012 1 O-Ring 31 4360209 1 Breaker, Circuit - 20 Amp 32 3640500 1 Rail, Mounting 32 3910608 2 Screw, Round Head #6-32NC x 1/2in 32 4750600 2 Flatwasher #6
REV
ITEM PART NUMBER QTY DESCRIPTION
32 4760600 2 Lockwasher #6 32 3310601 2 Nut #6-32NC 33 4460299 2 Stop, Terminal Strip 34 4460300 1 Barrier, Terminal End 35 4460298 AR Block, Terminal 36 4460301 1 Strip, Marking 37 4460311 1 Bar, Buss 37 4460305 3 Screw, Terminal Block 37 4460306 3 Washer, Terminal Block 37 4460307 3 Sleeve, Terminal Block 38 4460052 1 Connector 38 0960239 1 Bushing, Insulating 38 3300047 1 Nut, Conduit 39 4460244 1 Connector 39 0960238 1 Bushing, Insulating 39 3300048 1 Nut, Conduit 40 4460071 2 Connector 40 0960238 2 Bushing, Insulating 40 3300048 2 Nut, Conduit 41 3740049 AR Relay - SPDT 41 3311001 1 Nut #10-24NC 41 4761000 1 Lockwasher #10 42 1060309 2.4 m Cable, Control - 12/4 (To Footswitch) 43 4360199 1 Switch, Toggle - SPST (Creep) (Machines Built January 1993 to Present Only) 43 4060229 1 Shield 43 3790012 1 O-Ring 44 Ref Switch, Toggle (Tower Tele) Options: 44 4360198 1 Switch, Toggle (Prior to January 1993) 44 4360202 1 Switch, Toggle (January 1993 to Present) 44 4060229 1 Shield 44 3790012 1 O-Ring 45 0860038 1 Box, Receptacle 45 4460190 1 Receptacle - 110VAC 45 4060092 1 Cover, Weatherproof - 110VAC 45 3900294 2 Screw, Self-Tapping #10-16NC x 1in 45 3311001 2 Nut #10-24NC 45 4761000 2 Lockwasher #10 45 1060514 70 ft/21.3m Cable, Electric - 12/3 (Was p/n 1060268) 46 4460071 1 Connector, Strain Relief 0253077 Ref TILT ALARM INSTALLATION 101 0140026 1 Alarm
