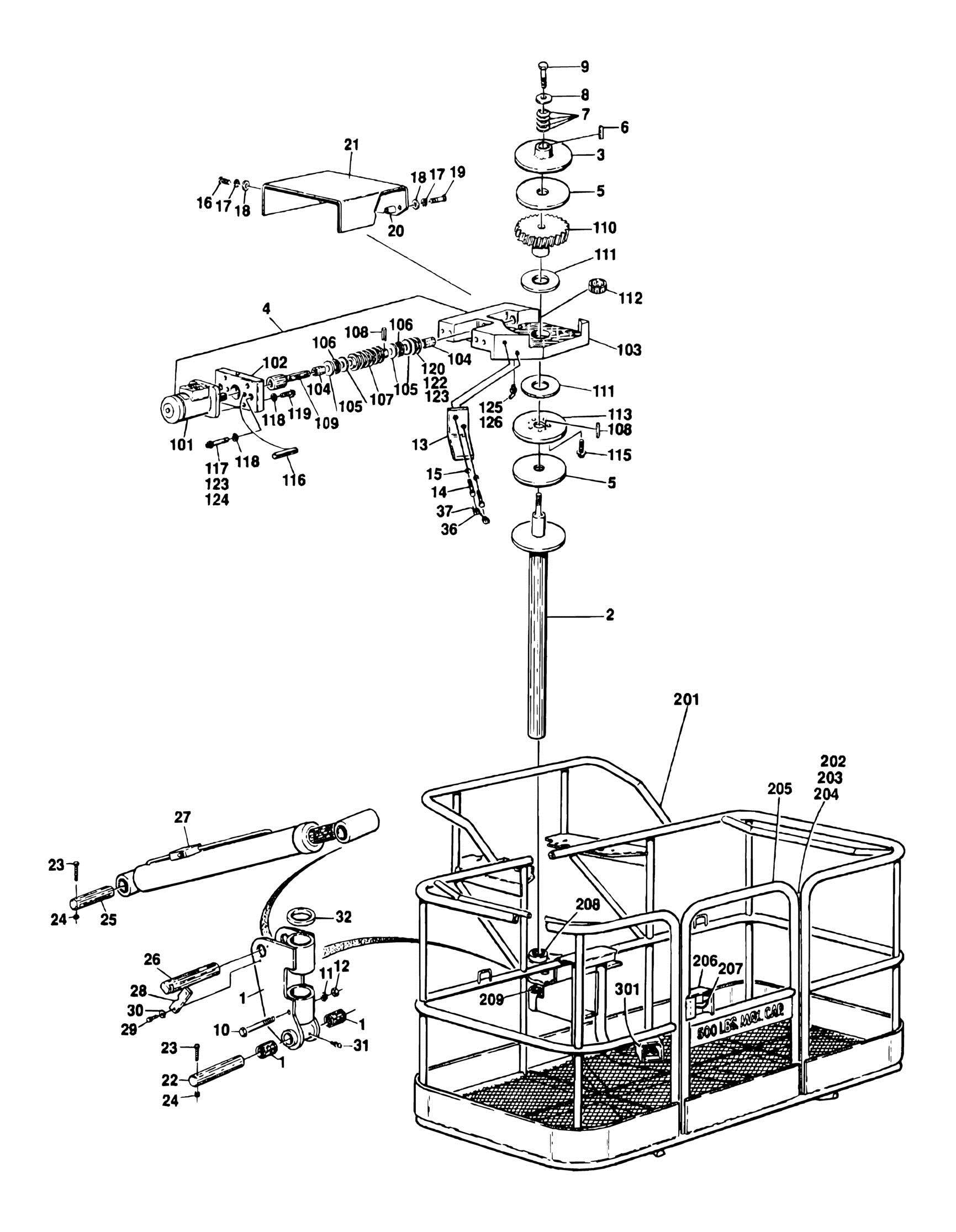

FIGURE 4-2. LOW MOUNT PLATFORM AND FOOTSWITCH INSTALLATIONS
ITEM PART NUMBER QTY
DESCRIPTION
Ref SUPPORT INSTALLATION - DOMESTIC 0250593 Ref ANSI Spec with Rotating Platform 1281433 Ref ANSI Spec with Fixed Platform (Not Shown) 0252135 Ref CSA Spec with Rotating Platform 0252136 Ref CSA Spec with Fixed Platform (Not Shown) 1 0238540 1 Pivot Attach Weldment 1 0961257 2 Bushing, Bronze 2 Ref Shaft Weldment Options: 2 4040215 1 Shaft Weldment ANSI Spec with Rotating Platform 2 4564579 1 Shaft Weldment ANSI Spec with Fixed Platform 2 4040222 1 Shaft Weldment CSA Spec with Rotating Platform 2 4040227 1 Shaft Weldment CSA Spec with Fixed Platform 3 1120299 1 Cap (Rotating Platform Only) 4 0235238 1 Rotator Assembly (See Item 101-126 for Breakdown) (Rotating Platform Only) 5 3340454 2 Pad, Brake (Rotating Platform Only) 6 2880404 1 Key (Rotating Platform Only) 7 4160026 8 Washer, Belleville (Rotating Platform Only) 8 4752000 1 Flatwasher 5/8in (Rotating Platform Only) 9 0652014 1 Bolt 5/8in-18NF x 1 3/4in (Rotating Platform Only) 10 0641836 1 Bolt 1/2in-13NC x 4 1/2in 11 4751800 3 Flatwasher 1/2in 12 3311805 1 Locknut 1/2in-13NC 13 0901756 1 Bracket (Rotating Platform Only) 14 0641811 2 Bolt 1/2in-13NC x 1 3/8in (Rotating Platform Only) 15 4761800 2 Lockwasher 1/2in (Rotating Platform Only) 16 0641404 1 Bolt 1/4in-20NC x 1/2in (Rotating Platform Only) 17 4761400 2 Lockwasher 1/4in (Rotating Platform Only) 18 4751400 2 Flatwasher 1/4in (Rotating Platform Only) 19 0641408 1 Bolt 1/4in-20NC x 1in (Rotating Platform Only) 20 4562083 1 Tube, Spacer (Rotating Platform Only) 21 1670630 1 Cover (Rotating Platform Only) 22 Ref Pin, Nose Options: 22 3421490 1 Pin ANSI Spec 22 3421968 1 Pin CSA Spec 23 0641522 2 Bolt 5/16in-18NC x 2 3/4in 24 3311505 2 Locknut 5/16in-18NC 25 3421491 1 Pin, Attach (Lower) 26 3421494 1 Pin, Attach (Upper) 27 Ref Platform Level Cylinder Assy (See CYLINDER SECTION for Breakdown) 27 1682178 1 Platform Level Cylinder Assy (Prior to October 1992) 27 1682793 1 Platform Level Cylinder Assy (October 1992 to SN 33104) (TUV Style) 27 1683526 1 Platform Level Cylinder Assy (TUV Style) (SN 33105 to
Present)
28 3532054 1 Plate, Retainer 29 0641506 2 Bolt 5/16in-18NC x 3/4in 30 4761500 2 Lockwasher 5/16in 31 2160002 3 Fitting, Grease
REV
9 B 4 2
ITEM PART NUMBER QTY DESCRIPTION
32 4740158 1 Washer, Thrust 33 4220137 2 Bar, Stop (Fixed Platform Only) 34 1320160 1 Clamp (Fixed Platform Only) (Not Shown) 35 3520035 1 Plug (Fixed Platform Only) 36 1380137 1 Clip Retainer (Rotating Platform Only) 37 4920986 1 ft/.3m Wire, Mechanics (Rotating Platform Only) 0235238 Ref ROTATOR ASSEMBLY: E
Ref Note: For Machines Built (Prior to September 1991) refer to
Service Information Bulletin #91-5 for required upgrade.
101 3160083 1 Rotator Motor Assy (See ROTATOR MOTOR ASSEMBLY for Breakdown) 102 0080099 1 Adapter, Motor 103 2760064 1 Housing, Gear 104 0440134 2 Bearing, Sleeve 105 4740199 4 Washer, Thrust 106 0440120 2 Bearing, Thrust 107 2440043 1 Gear, Worm 108 3440816 4 Rollpin 1/4in x 1in 109 0080098 1 Adapter, Motor to Worm Gear 110 2440044 1 Gear, Worm 111 4740256 2 Washer, Thrust 112 0440135 1 Bearing, Sleeve 113 1760068 1 Disc, Brake 115 3931010 5 Bolt, Socket Head #10-24NC x 5/8in 116 3441228 2 Rollpin 3/8in x 1 3/4in 117 3931620 2 Bolt, Socket Head 3/8in-16NC x 1 1/4in 118 4761600 6 Lockwasher 3/8in 119 3931612 4 Bolt, Socket Head 3/8in-16NC x 3/4in 120 4070585 AR Shim .010 121 4070586 AR Shim .005 122 4070587 AR Shim .002 123 0100019 AR Loctite #271 124 0100021 AR Primer 125 2160001 1 Fitting, Grease - 90 126 3020025 AR Grease Ref PLATFORM WELDMENTS Ref Note: Replacement Decals Must Be Ordered Separately - See
DECALS SECTION for Breakdown.
201
Ref Low Mount Platform Options: 201 Ref 30in x 48in Platforms: 201 3510239 1 Platform for Machines Built (Prior to April 1990) (Was p/n 3510233) 201 3510239 1 Platform for Machines Built (April 1990 to Present) 201 3510323 1 Platform with Bumpers 201 Ref 30in x 60in Platforms: 201 3510240 1 Platform 201 3510261 1 Platform with Bumpers 201 3510480 1 Platform with Mesh to Mid-Rail 201 3510482 1 Platform with Mesh to Top Rail 201 Ref 30in x 72in Platforms: 201 3510241 1 Platform 201 Ref 30in x 96in Platforms:
REV
ITEM PART NUMBER QTY
DESCRIPTION
201 3510315 1 Platform with Bumpers Ref Standard Platform Components 202 2600143 2 Pin, Hinge 203 3311805 2 Locknut 1/2in-13NC 204 2160006 2 Fitting, Grease 205 Ref Door Weldment Options: 205 1780224 1 Door with no Mesh (Prior to April 1990) 205 1780250 1 Door with no Mesh (April 1990 to Present) 205 1780285 1 Door With Mesh to Mid Rail 205 1780286 1 Door With Mesh to Top Rail 206 2940006 1 Latch, Door 207 2560010 1 Handle 208 0961450 1 Bushing, Bronze (Top) 209 0961259 1 Bushing, Bronze (Bottom) 0237963 Ref FOOTSWITCH INSTALLATION 301 0641408 3 Bolt 1/4in-20NC x 1in 301 3311405 3 Locknut 1/4in-20NC 301 4740362 3 Washer, Fender 1/4in 301 4360031 1 Footswitch 301 7000625 2 Block, Contact 301 4460071 1 Connector, Strain Relief
REV
