MACHINES

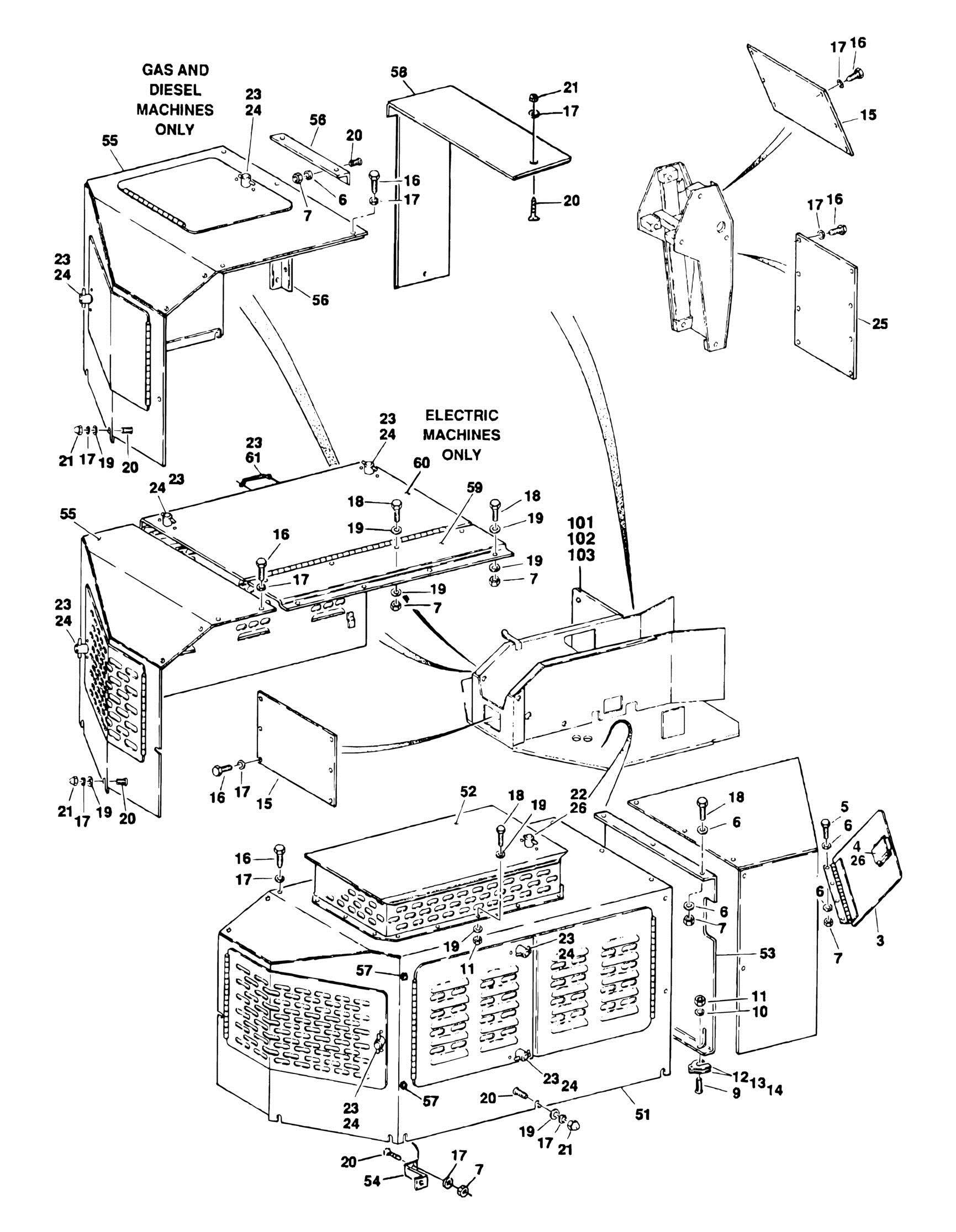

FIGURE 2-40. HOODS INSTALLATION (GAS/DIESEL MACHINES BUILT PRIOR TO MARCH 1990 AND ALL ELECTRIC MACHINES)

FIGURE 2-40. HOODS INSTALLATION (GAS/DIESEL MACHINES BUILT PRIOR TO MARCH 1990 AND ALL ELECTRIC MACHINES)

ITEM PART NUMBER QTY DESCRIPTION

Ref HOODS INSTALLATION 0239708 Ref Ford Gas, Dual Fuel and Straight LP Only 0238721 Ref Kohler Gas 0238686 Ref Kohler Dual Fuel

REV

C C C

0239543 Ref Kubota Diesel

C 0238687 Ref Electric Machines (Prior to December 1989) D 0250191 Ref Electric Machine (December 1989 to November 1991) C 0252480 Ref Electric Machines (November 1991 to Present) A Ref Note: Replacement Decals Must Be Ordered Separately - See

DECALS SECTION.

3 4842885 1 Door Weldment 4 2940057 1 Latch, Sliding 5 0641406 4 Bolt 1/4in-20NC x 3/4in 6 4711400 AR Flatwasher 1/4in Narrow 7 3311405 AR Locknut 1/4in-20NC 9 4300073 2 Stud (Welded on Part) 10 4751500 2 Flatwasher 5/16in 11 3311505 2 Locknut 5/16in-18NC 12 4070410 AR Shim 1/16in-16.6mm Thickness 13 4070411 AR Shim 1/8in-3.2mm Thickness 14 4070412 AR Shim 3/16in-4.8mm Thickness 15 3532202 2 Plate, Cover 16 3941406 AR Screw, Self-Tapping 1/4in x 3/4in 17 4761400 AR Lockwasher 1/4in 18 0641408 AR Bolt 1/4in-20NC x 1in 19 4751400 AR Flatwasher 1/4in 20 4300031 AR Stud (Welded on Part) 21 3300151 AR Nut, Acorn 1/4in-20NC 22 2940050 1 Latch 23 3820019 AR Rivet 24 2940048 AR Latch 25 3532260 1 Plate, Cover 26 3820012 2 Rivet 51 Ref Hood (Right Side) Options: 51 4843265 1 Hood Ford Gas, Dual Fuel and Straight LP Only 51 4842964 1 Hood Kohler Gas and Dual Fuel 51 4843209 1 Hood Kubota Diesel 51 4842964 1 Hood Electric Machines 52 Ref Ventilator Options: 52 4843267 1 Ventilator Ford Gas, Dual Fuel and Straight LP Only 52 4842961 1 Ventilator Kohler Gas and Dual Fuel 52 4843208 1 Ventilator Kubota Diesel 52 4842961 1 Ventilator Electric Machines 53 Ref Plate, Mounting - Valves Options: 53 3532212 1 Plate Ford Gas, Dual Fuel and Straight LP Only 53 3536298 1 Plate Kohler Gas and Dual Fuel 53 3532212 1 Plate Kubota Diesel 53 3536298 1 Plate Electric Machines (Prior to December 1990) 53 3532212 1 Plate Electric Machines (December 1990 to Present)

ITEM PART NUMBER QTY DESCRIPTION

54 Ref Bracket, Hood Options: 54 0901575 1 Bracket Ford Gas, Dual Fuel and Straight LP Only 54 0901574 1 Bracket Ford Gas, Dual Fuel and Straight LP Only 54 Not Required 0 Bracket Kohler Gas and Dual Fuel 54 Not Required 0 Bracket Kubota Diesel 54 Not Required 0 Bracket Electric Machines 55 Ref Hood (Left Side) Options: 55 4843204 1 Hood Ford Gas, Dual Fuel and Straight LP Only 55 4842977 1 Hood Kohler Gas and Dual Fuel 55 4843204 1 Hood Kubota Diesel 55 4842965 1 Hood Electric Machines 56 Ref Angle, Mounting Options: 56 0181396 2 Ford Gas, Dual Fuel and Straight LP Only 56 0181396 2 Angle Kohler Gas and Dual Fuel 56 0181396 2 Angle Kubota Diesel 56 Not Required 0 Angle Electric Machines 57 0940036 2 Angle Bumper, Door (Ford Gas, Dual Fuel and Straight LP Only) 58 3532981 1 Angle Panel, Filler (Straight LP Only) 59 Ref Panel Options: 59 Not Required 0 Panel All Except Electric Machines 59 4842881 1 Panel, Filler - Electric Machines (Prior to December 1990) 59 3533638 1 Panel Door, Access - Electric Machines (December 1989 to Present) 59 3534432 2 Panel Frame, Hood/Door Frame - Electric Machines (December 1989 to Present) 60 Ref Cover, Battery Options: 60 Not Required 0 Cover All Except Electric Machines 60 4842929 1 Cover Electric Machines (Prior to December 1989) 60 4843402 1 Cover Electric Machines (December 1989 to November 1991) 60 4844055 1 Cover Electric Machines (November 1991 to Present) 61 2560003 1 Handle, Hood (Electric Machines Only) 0239470 Ref COUNTERWEIGHT COVER INSTALLATION (ELECTRIC

MACHINES ONLY)

101 3533031 1 Cover 102 3900161 4 Screw, Lag 3/8in x 1 1/4in 103 4751600 4 Flatwasher 3/8in

REV
