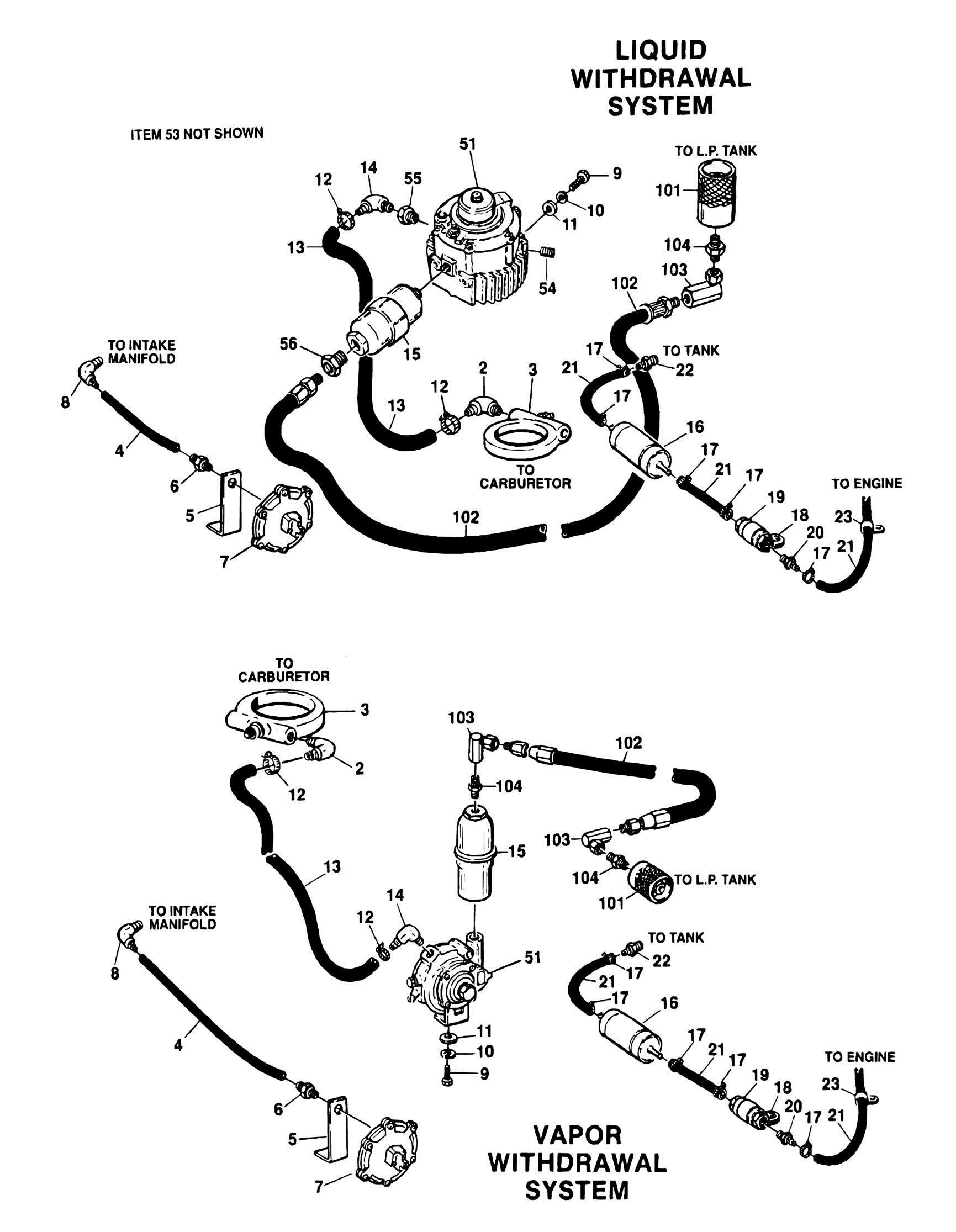

FIGURE 2-27. DUAL FUEL INSTALLATION - KOHLER

FIGURE 2-27. DUAL FUEL INSTALLATION - KOHLER

FIGURE 2-27. DUAL FUEL INSTALLATION - KOHLER

ITEM PART NUMBER QTY

DESCRIPTION

Ref DUAL FUEL INSTALLATION (STANDARD PARTS) 1 0100020 AR Sealant, Pipe 2 2220675 1 Fitting, 90 3 0080142 1 Adaptor, Carburetor 4 2720016 9 in/23cm Hose, Vacuum 5 0901415 1 Bracket, Mounting 6 2180536 1 Fitting, Barbed 7 4360188 1 Switch, Vacuum Safety 8 2220296 1 Fitting, 90 Barbed 9 0641405 2 Bolt 1/4in-20NC x 5/8in 10 4761400 2 Lockwasher 1/4in 11 4751400 2 Flatwasher 1/4in 12 1320032 2 Clamp 13 2720112 2 ft/61cm Hose 14 2220675 1 Fitting, 90 Barbed 15 2120077 1 Filter, LP Gas 16 2120042 1 Filter, In-Line Fuel 17 1320022 5 Clamp 18 1320060 1 Clamp 19 4640391 1 Fuel-Lock 20 2220315 1 Fitting, Barbed 21 2720015 8 ft/2.4m Hose, Fuel Line 22 2220317 1 Fitting, 90 23 1320041 2 Clamp, Hose Ref DUAL FUEL INSTALLATION (VARIABLE PARTS) 1280969 Ref Vapor Withdrawal System B

1280853 Ref Liquid Withdrawal System 51 Ref Regulator Options: 51 3720012 1 Regulator Vapor Withdrawal System 51 4700003 1 Regulator Liquid Withdrawal System 52 Ref Bracket, Mounting Options: 52 0901416 1 Bracket Vapor Withdrawal System 52 Not Required 0 Bracket Liquid Withdrawal System 53 Ref Decal Options: 53 1700819 1 Decal LP Gas Vapor Withdrawal System 53 1700818 1 Decal LP Gas Liquid Withdrawal System 54 2200202 1 Fitting, Plug (Liquid Withdrawal System Only) 55 2220251 1 Fitting, Reducer (Liquid Withdrawal System Only) 56 2220399 1 Fitting, Straight (Liquid Withdrawal System Only) 0238585 Ref TANK LINES INSTALLATION 101 2180387 1 Fitting, LP Connector 102 2720176 1 Hose, Gas 103 2220648 1 Fitting, 90 104 2180418 1 Fitting, Straight

REV

F

B
