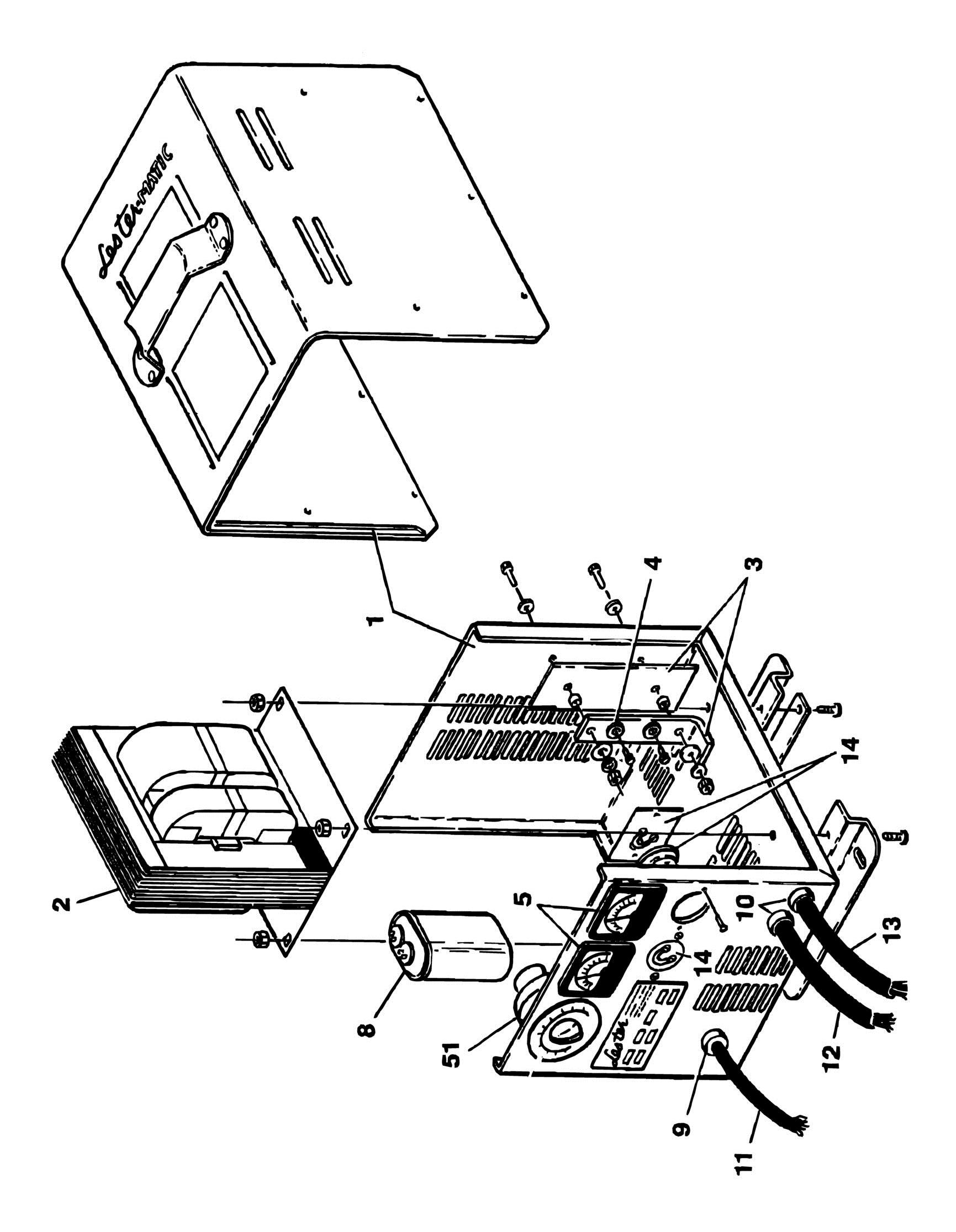

FIGURE 2-31. BATTERY CHARGER ASSEMBLY (ELECTRIC POWERED MACHINE
ITEM PART NUMBER QTY
DESCRIPTION
Ref BATTERY CHARGER ASSEMBLY 0400068 Ref Manual Timer (Prior to November 1991) 0400077 Ref Automatic Timer (November 1991 to Present) 1 7005955 1 Case Assembly 2 7005956 1 Transformer Assembly 3 7005957 2 Heat Sink Assembly 4 7005958 4 Diode 5 7005959 2 Ammeter 8 7005928 1 Capacitor 9 7005935 3 Bushing 10 7005960 2 Bushing 11 7005937 1 Cord Set, AC 12 7005961 1 Cord Set, 12VDC 13 7005962 1 Auxiliary Relay Cable Assembly 48VDC 14 7005963 2 Fuse Assembly 51 Ref Timer Options: 51 7005951 1 Timer (Manual Timer - Prior to November 1991) 51 7005941 1 Knob (Manual Timer - Prior to November 1991) 51 7005969 1 Timer (Automatic Timer - November 1991 to Present)
