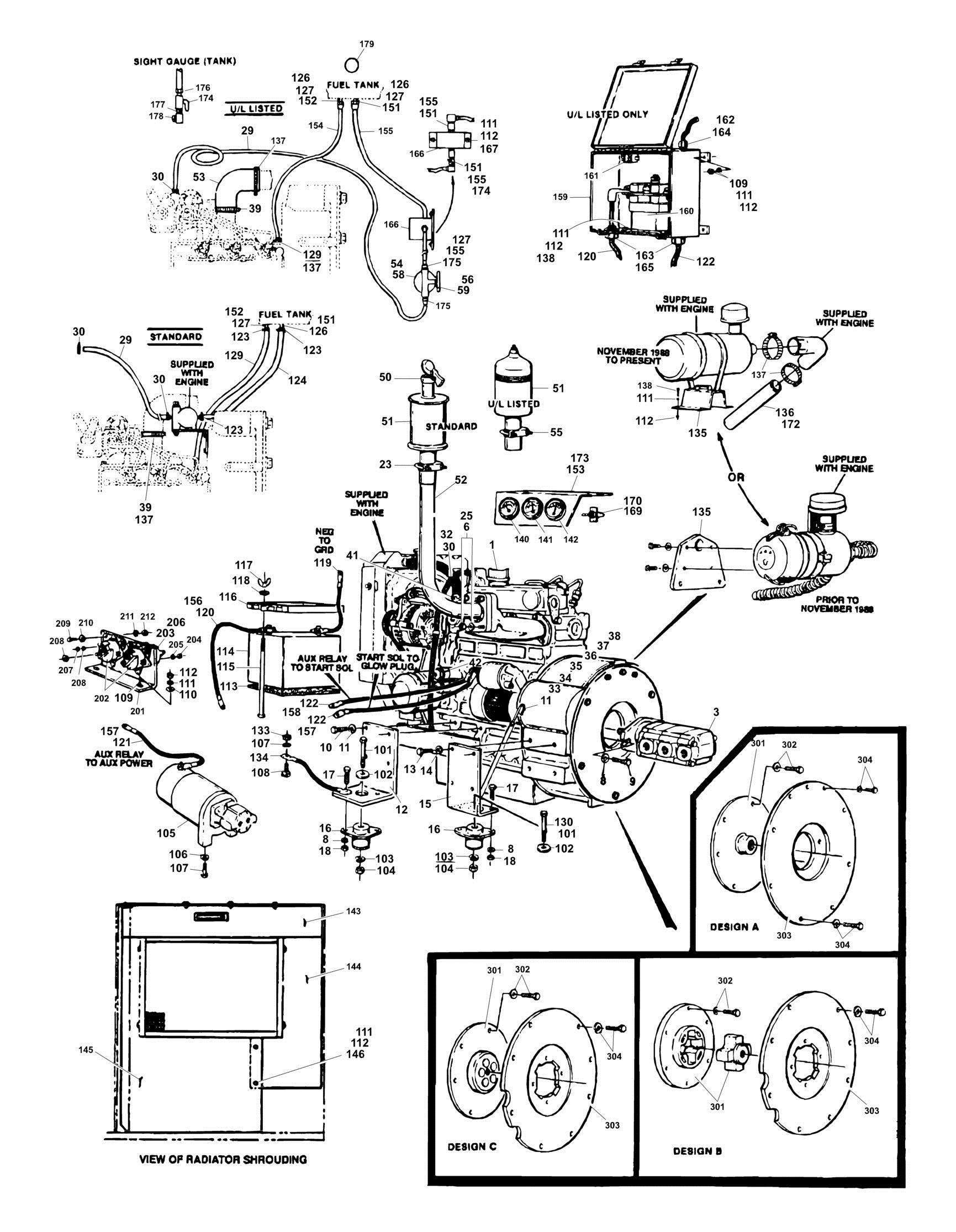

FIGURE 2-24. KUBOTA ENGINE INSTALLATION
FIGURE 2-24. KUBOTA ENGINE INSTALLATION
FIGURE 2-24. KUBOTA ENGINE INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
Ref KUBOTA ENGINE ASSEMBLY (STANDARD PARTS) 1 2000101 1 Engine, Kubota Diesel 3 3600142 1 Pump Assembly (Vickers) 3 2900660 1 Shaft Seal Kit (Vickers) 3 3600201 1 Pump Assembly (Barnes) (Some additional Fittings may be required for installation) (See PUMP ASSEMBLY - BARNES for Breakdown) 6 4761500 2 Lockwasher 5/16in 8 4761600 AR Lockwasher 5/16in 9 0641607 2 Bolt 3/8in-16NC x 7/8in 10 0630394 AR Bolt, Metric M10-1.25 x 25mm 11 4740116 9 Lockwasher, Metric 10mm 12 3200276 2 Bracket, Engine (Front) 13 0641810 8 Bolt 1/2in-13NC x 1 1/4in 14 4761800 8 Lockwasher 1/2in 15 3200277 2 Bracket, Engine (Rear) 16 3200202 4 Mount, Engine (Rear) 17 0641608 8 Bolt 3/8in-16NC x 1in 18 3311601 8 Nut 3/8in-16NC 23 1320020 1 Clamp, Muffler 25 3290801 4 Nut, Metric 8mm 29 2720058 18 in/46cm Hose, Low Pressure 30 1320022 3 Clamp 32 2750532 24 in/61cm Hose, Low Pressure 33 3520068 1 Plug 34 2200201 1 Fitting, Plug 35 0630414 1 Bolt, Special 36 4740351 2 Washer, Metric #12 37 4843180 1 Tube, Dipstick 38 0630416 1 Bolt, Metric M10-1.25 x 16mm 39 1320012 1 Clamp, Hose 41 2420108 1 Sender, Water Temperature 42 2420073 1 Sender, Oil Pressure Ref KUBOTA ENGINE ASSEMBLY (VARIABLE PARTS) 0239084 Ref Standard Machines F
0239777 Ref U/L Machines 50 Ref Cap, Rain Options: 50 1120218 1 Standard Machines 50 Not Required 0 U/L Machines 51 Ref Muffler Options: 51 3220027 1 Standard Muffler (Standard Machines) 51 3220067 1 Optional Spark Arrestor Muffler (Standard Machines) 51 3220074 1 Standard Spark Arrestor Muffler (U/L Machines) 52 Ref Exhaust Weldment Options: 52 4843088 1 Exhaust Weldment Standard Machines 52 4843441 1 Exhaust Weldment U/L Machines 53 Ref Hose/Tubing Options: 53 2720331 1 Hose Standard Machines
REV
E
ITEM PART NUMBER QTY DESCRIPTION
53 4564466 1 Hose U/L Machines 54 2120113 1 Base, Filter (U/L Machines Only) 55 1320132 1 Clamp, Muffler (U/L Machines Only) 56 0701014 4 Bolt, Metric M10-1.5 x 30mm (U/L Machines Only) 57 0160011 1 Alternator, Totally Enclosed (Not Shown) (U/L Machines Only) 57 0901598 1 Bracket (U/L Machines Only) 57 4340571 1 Support, Adjustable (U/L Machines Only) 57 0641412 1 Bolt 1/4in-20NC x 1 1/2in (U/L Machines Only) 57 0641528 1 Bolt 5/16in-18NC x 3 1/2in (U/L Machines Only) 57 4751500 2 Flatwasher 5/16in (U/L Machines Only) 58 2120114 1 Element, Filter (U/L Machines Only) 59 4300032 3 Stud (Welded on Part) (U/L Machines Only) 59 4761400 3 Lockwasher 1/4in (U/L Machines Only) 59 3311401 3 Nut, 1/4in-20NC (U/L Machines Only) Ref KUBOTA ENGINE INSTALLATION (STANDARD PARTS) 101 0641730 3 Bolt 7/16in-14NC x 3 3/4in 102 4740273 4 Washer, Snubbing 103 4761700 4 Lockwasher 7/16in 104 3311701 3 Nut 7/16in-14NC 105 3600050 1 Auxiliary Pump Assembly (Vendors Vary): 105 Ref John S. Barnes Version: 105 7004248 1 Motor 105 7004249 1 Coupling 105 7010923 1 Pump 105 Ref Stone Industries Version: 105 7000482 1 Motor 105 7004412 1 Coupling 105 7004414 1 Pump 106 0641612 3 Bolt 3/8in-16NC x 1 1/2in 107 4761600 3 Lockwasher 3/8in 108 0239092 1 Electrical Panel Assembly (See Items 201- 212 for Breakdown) 109 4300032 AR Stud (Welded on Part) 110 4751400 AR Flatwasher 1/4in 111 4761400 AR Lockwasher 1/4in 112 3311401 AR Nut 1/4in-20NC 113 3980003 1 Seat, Battery 114 0400003 1 Battery 115 0236768 2 Rod, Hold-down 116 0400002 1 Hold-Down, Battery 116 2910479 1 Replacement Clip Kit for 0400002 117 3300029 2 Wing-Nut 3/8in-16NC 118 4711600 2 Flatwasher 3/8in Narrow 119 1060146 1 Cable, Battery (Negative to Ground) 120 1060172 1 Cable, Battery (Positive to Aux Relay - Standard/Contactor - U/L Listed Machines) 121 1060221 1 Cable, Battery (Aux Relay to Aux Pump) 122 1060093 AR Cable, Battery (Aux Relay to Starter Solenoid/Contactor to Aux Relay - U/L Machines/Starter Solenoid to Glow Plugs) 123 1320022 4 Clamp 124 2720058 AR Hose 124 2720058 4.5 ft/1.4m Hose Standard Machines
REV
ITEM PART NUMBER QTY
DESCRIPTION
124 2720058 9 in/23cm Hose U/L Listed Machines 126 0100020 AR Loctite 127 2220273 1 Fitting, Reducer 129 2720271 AR Hose 129 2720271 3.5 ft/1.1m Hose Standard Machines 129 2720271 9 in/23cm Hose U/L Listed Machines 130 0641718 1 Bolt 7/16in-14NC x 2 1/4in 133 3311601 1 Nut 3/8in-16NC 134 1060093 1 Cable, Battery (Engine to Ground) 135 Ref Bracket, Air Cleaner Options: 135 0901510 1 Bracket Design A - (Prior to November 1988) 135 0901551 1 Bracket Design B - (November 1988 to Present) 136 4564215 1 Bracket Tube - Air Intake (November 1988 to Present Only) 137 1320012 3 Clamp 138 0641406 AR Bolt 1/4in-20NC x 3/4in 140 2420107 1 Gauge - Water Temperature 141 2420074 1 Gauge - Oil Pressure 142 2420091 1 Gauge - Volt 143 2680374 1 Hood, Shroud (Top) 144 2680373 1 Hood, Shroud (Side) 145 2680375 1 Hood, Shroud (Bottom) 146 0641404 2 Bolt 1/4in-20NC x 1/2in Ref KUBOTA ENGINE INSTALLATION (STANDARD MACHINES)
(VARIABLE PARTS)
0239085 Ref Standard Machines C
0239778 Ref U/L Listed Machines 151 Ref Fitting, 90 Options: 151 2220317 1 Fitting Standard Machines 151 2180704 3 Fitting U/L Listed Machines 152 Ref Fitting, 90 Options: 152 2220805 1 Fitting Standard Machines 152 2180703 2 Fitting U/L Listed Machines 153 Ref Bracket, Gauge Mounting Options: 153 0901552 1 Bracket Standard Machines 153 4843422 1 Bracket U/L Listed Machines 154 4564079 5 ft/1.5m Tube, Fuel Line (U/L Listed Machines Only) 154 2180705 3 Fitting, Nut (U/L Listed Machines Only) 155 4564078 5 ft/1.5m Tube, Fuel Line (U/L Listed Machines Only) 155 2180706 2 Fitting, Nut (U/L Listed Machines Only) 156 0840029 1 Boot, Battery Post (U/L Listed Machines Only) 157 0840027 7 Boot, Battery Cable End (U/L Listed Machines Only) 158 0840025 2 Boot, Battery Cable End (U/L Listed Machines Only) 159 0860595 1 Box Assembly (U/L Listed Machines Only) 160 3740065 1 Contactor - 300 Amp (U/L Listed Machines Only) 161 3740049 1 Relay (U/L Listed Machines Only) 162 4460052 1 Connector, Strain Relief (U/L Listed Machines Only) 163 4460051 2 Connector, Strain Relief (U/L Listed Machines Only) 164 3300047 1 Locknut, Conduit (U/L Listed Machines Only) 165 3300048 2 Locknut, Conduit (U/L Listed Machines Only) 166 3600094 1 Pump, Electric Fuel (U/L Listed Machines Only) 167 4300031 2 Stud (Welded on Part) (U/L Listed Machines Only)
REV
B
ITEM PART NUMBER QTY
DESCRIPTION
169 3251292 1 Nametag - Primer (Not Shown) (U/L Listed Machines Only) 170 4360200 1 Switch, Toggle (U/L Listed Machines Only) 172 4564467 1 Tube, Air Intake (U/L Listed Machines Only) 173 3533683 1 Plate (U/L Listed Machines Only) 174 4640618 2 Valve, Shut-Off (U/L Listed Machines Only) 175 2220265 2 Fitting, Reducer (U/L Listed Machines Only) 176 2180371 1 Fitting, Barbed (U/L Listed Machines Only) 177 2220261 1 Fitting, Nipple (U/L Listed Machines Only) 178 2220648 1 Fitting, 90 (U/L Listed Machines Only) 179 1120367 1 Cap, Fuel Tank (U/L Listed Machines Only) 0239092 Ref ELECTRICAL PANEL ASSEMBLY -
201 3532675 1 Panel, Mounting 202 3740067 2 Relay 203 3740059 1 Relay, Start 204 3310801 1 Nut #8-32NC 205 4760800 1 Lockwasher #8 206 3300220 6 Nut, Special 207 3321001 3 Nut #10-32NF 208 4761000 3 Lockwasher #10 209 0641406 4 Bolt 1/4in-20NC x 3/4in 210 4751400 8 Flatwasher 1/4in 211 4761400 4 Lockwasher 1/4in 212 3311401 4 Nut 1/4in-20NC Ref COUPLING INSTALLATION - OPTION Not Available Ref Steel Disc (Prior to September 1989) (Design A) 0239964 Ref Lovejoy (September 1989 to Present) (Design B) 0220596 Ref Hayes (September 1989 to Present) (Design C) 301 Ref Coupling Options: 301 1760117 1 Coupling Steel Disc (Prior to September 1989) (Design A) 301 1660176 1 Coupling Lovejoy (September 1989 to Present) (Design B) 301 1660182 1 Coupling Hayes (September 1989 to Present) (Design C) 302 0641506 6 Bolt 5/16in-18NC x 3/4in 302 0641509 6 Bolt 5/16in-18NC x 1 1/8in 302 4761500 6 Lockwasher 5/16in 303 Ref Adapter, Pump Mounting Options: 303 0080152 1 Adapter Steel Disc (Prior to September 1989) (Design A) 303 0080169 1 Adapter Lovejoy (September 1989 to Present) (Design B) 303 0080169 1 Adapter Hayes (September 1989 to Present) (Design C) 304 0641607 8 Bolt 3/8in-16NC x 7/8in 304 0641609 8 Bolt 3/8in-16NC x 1 1/8in (When Required) 304 4761600 8 Lockwasher 3/8in Ref KUBOTA ENGINE COMPONENTS Ref Harness, Engine and Valve Options: 4921143 1 Harness Stepper Valve Machines 4921144 1 Harness Vickers Valve Machines 7004393 1 Alternator
