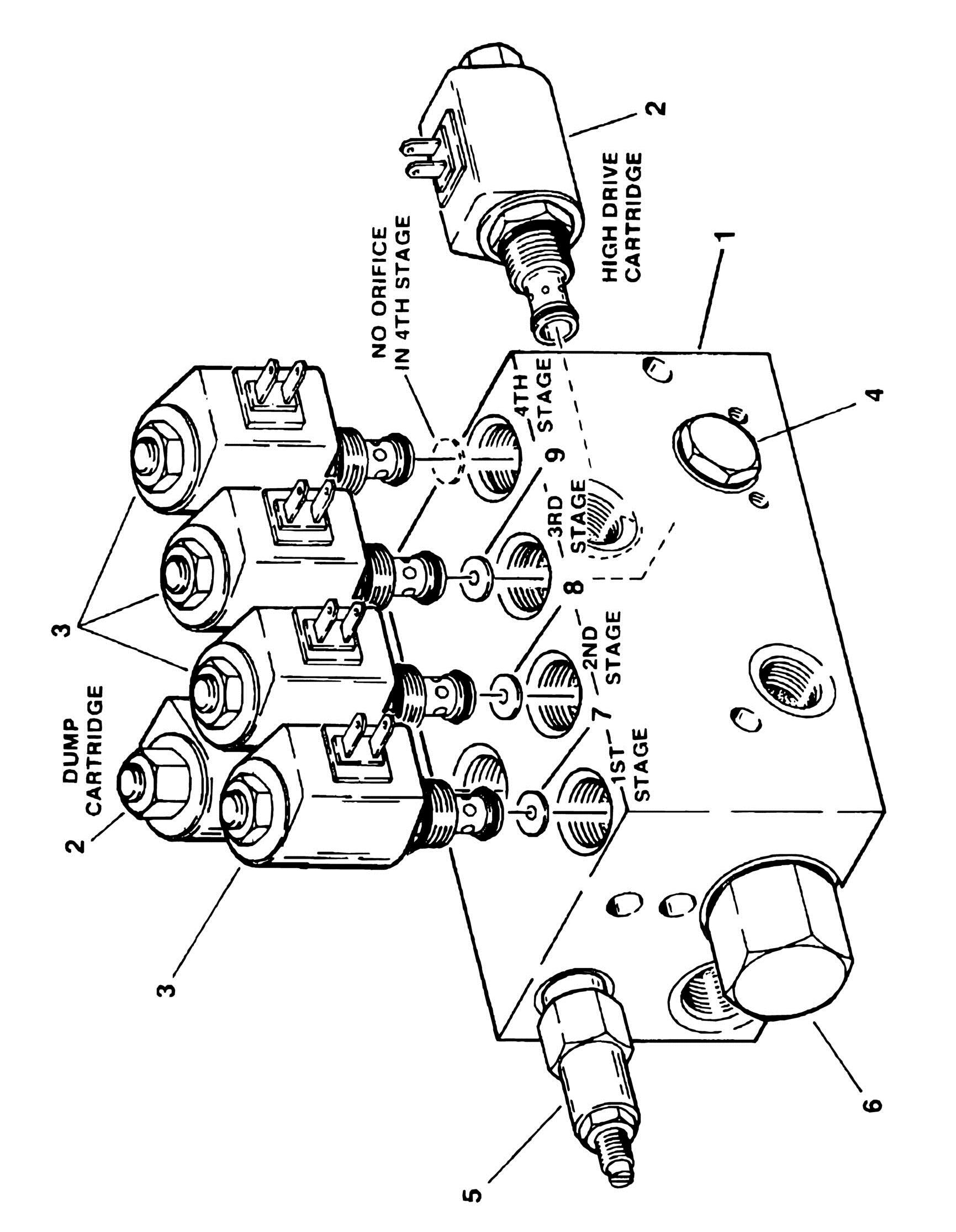

FIGURE 2-4. STEP CONTROL VALVE ASSEMBLY
FIGURE 2-4. STEP CONTROL VALVE ASSEMBLY
FIGURE 2-4. STEP CONTROL VALVE ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
4640541 Ref STEP CONTROL VALVE ASSEMBLY 1 N.S.S. 1 Body (Not Sold Separately) 2 7009740 2 Valve, Cartridge 2 7009742 2 Coil (1 Per Cartridge) 2 2900503 2 Seal Kit (1 Per Cartridge) 3 7009741 4 Valve, Cartridge 3 7009742 4 Coil (1 Per Cartridge) 3 2900503 4 Seal Kit (1 Per Cartridge) 4 7003635 1 Valve, Check 4 2900503 1 Seal Kit 5 7004225 1 Valve, Cartridge Relief 5 2900503 1 Seal Kit 6 7004233 1 Valve, Compensator Cartridge 6 7009768 1 Seal Kit 7 7009765 1 Orifice (.063) 8 7009766 1 Orifice (.070) 9 7009778 1 Orifice (.090)
REV
C
