FIGURE 1-9. DRIVE MOTOR ASSEMBLY - 2WD
FIGURE 1-9. DRIVE MOTOR ASSEMBLY - 2WD
FIGURE 1-9. DRIVE MOTOR ASSEMBLY - 2WD
ITEM PART NUMBER QTY
DESCRIPTION

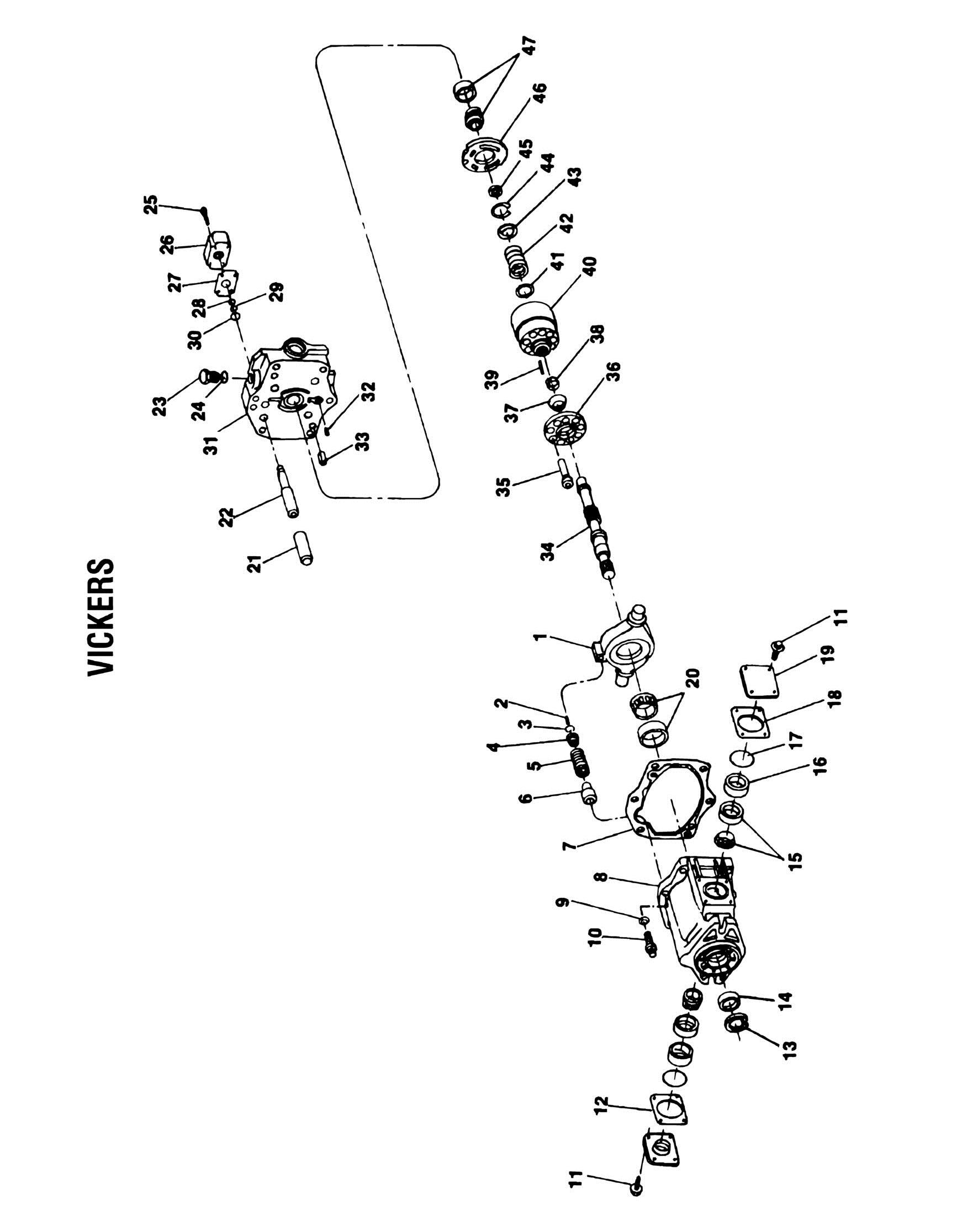

3160132 Ref DRIVE MOTOR ASSEMBLY - VICKERS 1 7006766 1 Yoke 2 7006767 1 Roll Pin 3 7006768 1 Spherical Seat 4 7006769 1 Spring Seat 5 7006774 1 Yoke Spring 6 7006776 1 Yoke Stop 7 2900659 1 Gasket 8 7006786 1 Housing 9 7006787 6 Washer 10 7006788 6 Screw 11 7006789 4 Screw 12 Ref Shim (Included with Item 18) 13 7006790 1 Retaining Ring 14 7006796 1 Shaft 15 7006791 2 Bearing 16 7006792 2 Pintle Bearing 17 2900659 2 O-Ring 18 7006794 1 Shim Kit (Includes Item 12) 19 7006795 2 Cover 20 7006719 1 Bearing 21 7006797 1 Piston 22 7006798 1 Piston Rod 23 7006703 1 Plug 24 2900659 1 O-Ring 25 7009300 4 Screw 26 7009301 1 Control Block 27 2900659 1 Gasket 28 2900659 1 O-Ring 29 2900659 1 Back-up Ring 30 7009305 1 Retaining Ring 31 7009306 1 Valve Block 32 7006706 1 Pin 33 7009307 2 Pin 34 7009308 1 Shaft 35 7006717 9 Piston and Shoes 36 7006716 1 Shoe Plate 37 7006715 1 Spherical Washer 38 7006714 1 Pin, Retainer 39 7006713 3 Pin 40 7006712 1 Cylinder, Block 41 7006711 1 Spring Washer 42 7006710 1 Spring 43 7006709 1 Spring Washer 44 7009309 1 Retaining Ring 45 7006707 1 Bearing Spacer Kit 46 7009310 1 Wafer Plate 47 7006704 1 Bearing S/A 2900659 1 Seal Kit (Includes 7, 14, 17, 24, 27, 28 & 29) 1001096405 Ref DRIVE MOTOR KIT - SAUER-DANFOSS
REV
B
ITEM PART NUMBER QTY
DESCRIPTION

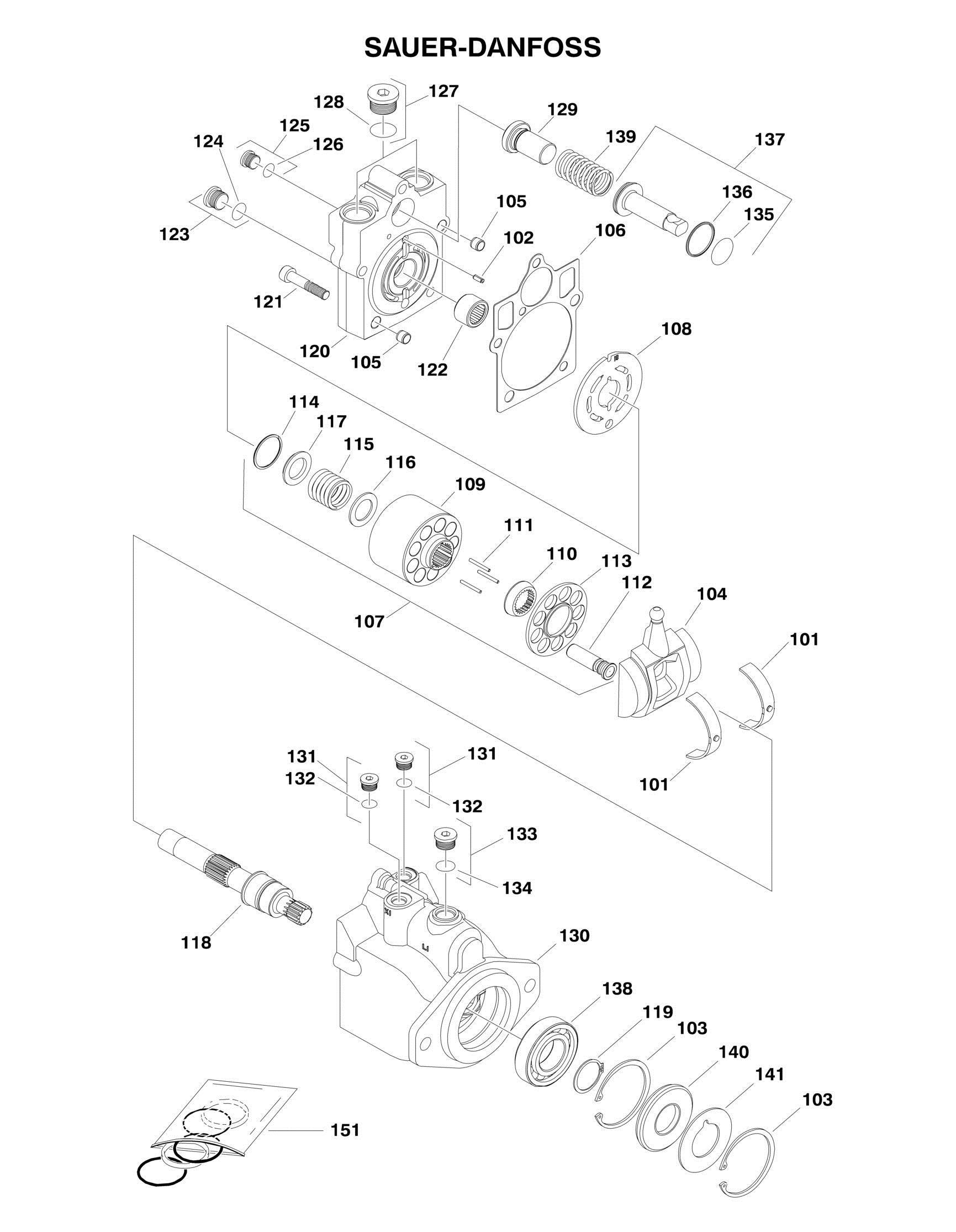

1001096406 Ref DRIVE MOTOR ASSEMBLY - SAUER-DANFOSS 101 7022302 2 Bearing 102 7007446 1 Pin 103 7007438 2 Ring, Retaining 104 70000794 1 Swashplate 105 See Note 2 Dowel Locator (Note: Not Available for Purchase) 106 Item 51 1 Gasket 107 7027740 1 Cylinder Block Kit (Includes Items 110-117) 108 7024862 1 Plate, Valve 109 7027740 Cylinder Block 110 70000856 1 Guide, Slipper Retainer 111 7021275 3 Pin, Slipper Hold Down 112 7024865 9 Piston Assembly 113 70000857 1 Retainer, Slipper 114 7022311 1 Ring, Retaining 115 7024867 1 Spring 116 7024868 1 Washer 117 7022314 1 Retainer, Spring 118 7023910 1 Shaft 119 7007439 1 Ring, Retaining 120 70000795 1 Cap, End - Axial 121 7022368 5 Screw 122 7021249 1 Bearing, Needle 123 7022321 1 Plug (Includes Item 124) 124 7022322 1 O-Ring 125 7007420 1 Plug (Includes Item 126) 126 7021256 1 O-Ring 127 7007419 2 Plug (Includes Item 128) 128 7007418 2 O-Ring 129 Not Available 1 Seat, Spring 130 See Note 1 Housing (Note: Not Available - Purchase Complete Motor) 131 7007420 2 Plug (Items Item 132) 132 7021256 2 O-Ring 133 7022321 1 Plug (Items Item 134) 134 7022322 1 O-Ring 135 7022324 1 O-Ring 136 7022325 1 Ring, Seal 137 7024871 1 Piston, Servo 138 7007437 1 Bearing 139 7022326 1 Spring 140 7007459 1 Seal, Lip 141 7022371 1 Washer, Support 151 7022328 1 Seal Kit (Includes Items 106, 124, 126, 128, 132, 134, 135, 136 & 140)
REV
A
