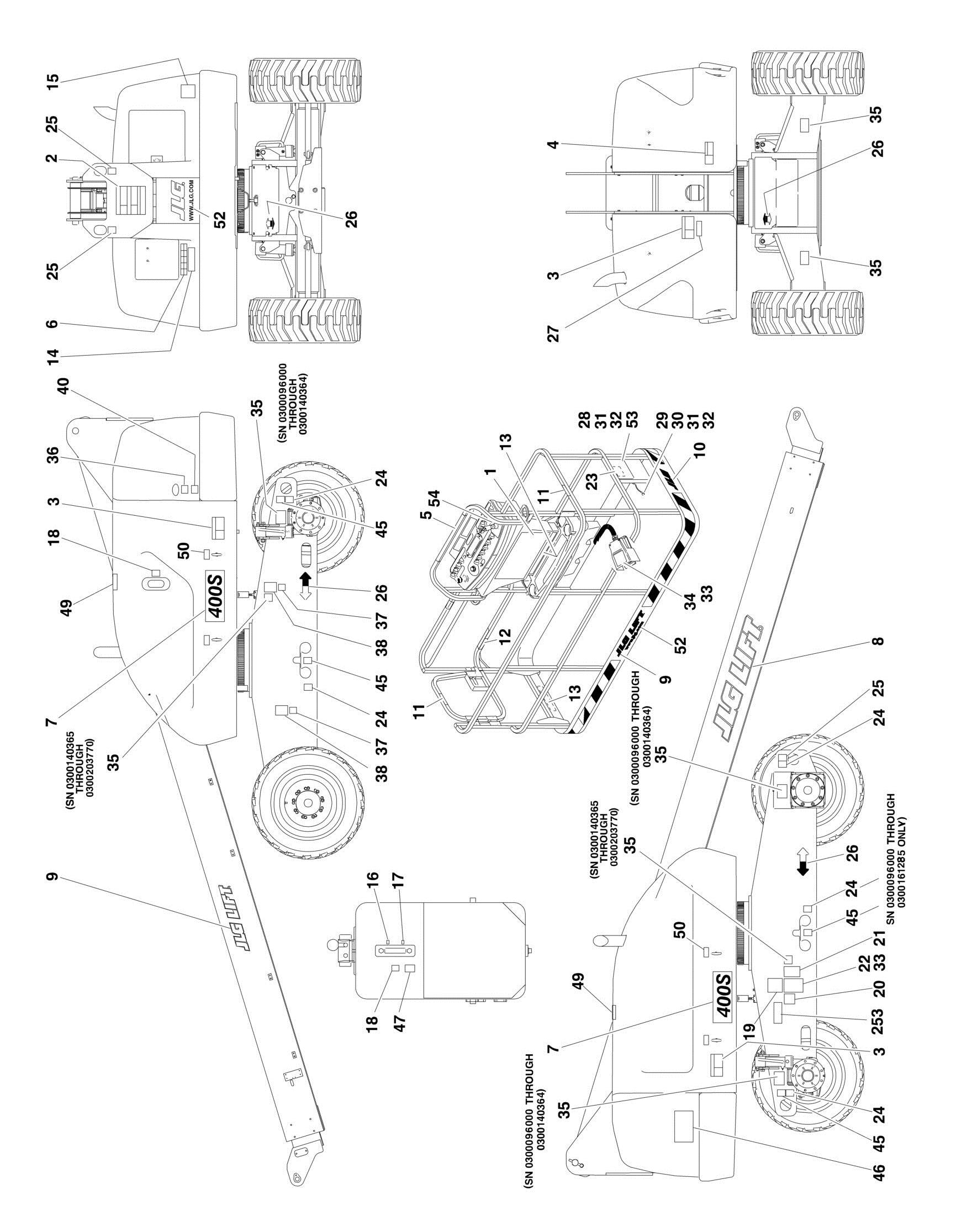

FIGURE 8-2. DECAL INSTALLATION (ANSI EXPORT SPECS
ITEM PART NUMBER QTY DESCRIPTION
Ref DECAL INSTALLATIONS 0270398 Ref Decals JLG
REV
B
Ref Decal Installations Model 400S with 500LB Capacity 0259185 Ref Brazilian Spec (Dual Language - Portuguese/Spanish) D 0259183 Ref Chinese Spec (Dual Language - Chinese/English) D 0259181 Ref CSA Spec (Dual Language - English/French) D 0259175 Ref Japanese Spec D 0259177 Ref Korean Spec D 0259179 Ref Latin American Spec (Dual Language - English/Spanish) D Ref Decal Installations Model 400S with 750LB Capacity 0259994 Ref Brazilian Spec (Dual Language - Portuguese/Spanish) D 0259993 Ref Chinese Spec (Dual Language - Chinese/English) D 0259992 Ref CSA Spec (Dual Language - English/French) D 0259989 Ref Japanese Spec D 0259990 Ref Korean Spec D 0259991 Ref Latin American Spec (Dual Language - English/Spanish) D Ref Decal Installations Model 460SJ 0259186 Ref Brazilian Spec (Dual Language - Portuguese/Spanish) D 0259184 Ref Chinese Spec (Dual Language - Chinese/ English) D 0259182 Ref CSA Spec (Dual Language - English/French) D 0259176 Ref Japanese Spec D 0259178 Ref Korean Spec D 0259180 Ref Latin American Spec (Dual Language - English/Spanish) D 1 Ref Decal - Danger/Warning (Platform) Options: 1 1703928 1 Brazilian Spec 1 1703925 1 Chinese Spec 1 1703924 1 CSA Spec 1 1703926 1 Japanese Spec 1 1703927 1 Korean Spec 1 1703923 1 Latin American Spec 2 Ref Decal - Danger/Warning (Ground Control) Options 2 1703934 1 Brazilian Spec 2 1703931 1 Chinese Spec 2 1703930 1 CSA Spec 2 1703932 1 Japanese Spec 2 1703933 1 Korean Spec 2 1703929 1 Latin American Spec 3 Ref Decal - Danger/Electrocution Options: 3 1703940 2 Brazilian Spec 3 1703937 2 Chinese Spec 3 1703936 2 CSA Spec 3 1703938 2 Japanese Spec 3 1703939 2 Korean Spec 3 1703935 2 Latin American Spec 4 Ref Decal - Warning Crushing Options: 4 1703952 3 Brazilian Spec 4 1703949 3 Chinese Spec 4 1703948 3 CSA Spec 4 1703950 3 Japanese Spec 4 1703951 3 Korean Spec
ITEM PART NUMBER QTY
DESCRIPTION
4 1703947 3 Latin American Spec 5 Ref Decal - Legend (Platform) Options: 5 1706708 1 Decal - Legend (Platform) (SN 0300096000 through
0300140364)
5 1001108492 1 Decal - Legend (Platform) (SN 0300140365 through
0300203770)
6 Ref Decal - Legend (Ground Control) Options: 6 1706709 1 Decal - Legend (Ground Control) (SN 0300096000 through
0300099083)
6 1706941 1 Decal - Legend (Ground Control) (SN 0300099084 through
0300203770)
7 Ref Decal - Model Designation Options: 7 1704472 2 Decal - Model Designation Model 400S 7 1704473 2 Decal - Model Designation Model 460SJ 8 1702861 2 Decal - JLG Lift (8in) 9 1702774 1 Decal - JLG Lift (3.5in) 10 1702773 1 Decal - JLG (5in) 11 Ref Decal - No Hands Options: 11 1704002 2 Brazilian Spec 11 Not Required 0 Chinese/Japanese/Korean Specs 11 1704000 2 CSA Spec 11 1704001 2 Latin American Spec 12 Ref Decal - Attach Lanyard Here Options: 12 1704005 3 Brazilian Spec 12 1704003 3 CSA Spec 12 1704277 3 Chinese/Japanese/Korean Spec 12 1704004 3 Latin American Spec 13 Ref Decal - Capacity (Platform) Options: 13 Ref 230kg/500lb Maximum Capacity Options: 13 Ref Decal - Capacity (Platform) (SN 0300096000 through
0300100314)
13 1703996 2 Brazilian Spec - 460SJ 13 1703996 2 Chinese Spec - 460SJ 13 1703996 2 CSA Spec - 460SJ 13 1703996 1 Japanese Spec - 460SJ 13 Ref Decal - Capacity (Platform) (SN 0300096000 through
0300142869)
13 1704100 2 Brazilian Spec - 400S 13 1704101 2 Chinese Spec - 400S 13 1704099 2 CSA Spec - 400S 13 1704102 2 Japanese Spec - 400S 13 1704103 2 Korean Spec - 400S 13 1704098 2 Latin American Spec - 400S 13 1701645 2 Latin American Spec - 460SJ 13 Ref Decal - Capacity (Platform) (SN 0300096000 through
0300103507)
13 1703996 1 Korean Spec - 460SJ 13 Ref Decal - Capacity (Platform) (SN 0300100315 through
0300142870)
13 1707134 2 Brazilian Spec - 460SJ 13 1707060 2 Chinese Spec - 460SJ 13 1707055 2 CSA Spec - 460SJ 13 1707059 2 Japanese Spec - 460SJ
REV
ITEM PART NUMBER QTY
DESCRIPTION
13 Ref Decal - Capacity (Platform) (SN 0300103508 through
0300142869)
13 1707058 2 Korean Spec - 460SJ 13 Ref Decal - Capacity (Platform) (SN 0300142870 through
0300203770)
13 1001125330 2 Brazilian Spec - 400S 13 1001121920 2 Brazilian Spec - 460SJ 13 1001121809 2 Chinese Spec - 400S 13 1001121812 2 Chinese Spec - 460SJ 13 1001121802 2 CSA Spec - 400S 13 1001121803 2 CSA Spec - 460SJ 13 1001121807 2 Japanese Spec - 400S 13 1001121808 2 Japanese Spec - 460SJ 13 1001122200 2 Korean Spec - 400S 13 1001121918 2 Korean Spec - 460SJ 13 1001121804 2 Latin American Spec - 400S 13 1001121801 2 Latin American Spec - 460SJ 13 Ref 340kg/750lb Maximum Capacity Options: 13 Ref Decal - Capacity (Platform) (SN 0300096000 through
0300142869)
13 1705070 2 Brazilian Spec - 400S 13 1705069 2 Chinese Spec - 400S 13 1705068 2 CSA Spec - 400S 13 1705065 2 Japanese Spec - 400S 13 1705066 2 Korean Spec - 400S 13 1705067 2 Latin American Spec - 400S 13 Ref Decal - Capacity (Platform) (SN 0300142870 through
0300203770)
13 1001125329 2 Brazilian Spec - 400S 13 1001125328 2 Chinese Spec - 400S 13 1001125327 2 CSA Spec - 400S 13 1001125323 2 Japanese Spec - 400S 13 1001125324 2 Korean Spec - 400S 13 1001125325 2 Latin American Spec - 400S 14 Ref Decal - Capacity (Ground Control) Options: 14 Ref 230kg/500lb Maximum Capacity Options: 14 Ref Decal - Capacity (Ground Control) (SN 0300096000
through 0300100314)
14 1704108 1 Brazilian Spec - 400S 14 1704112 1 Brazilian Spec - 460SJ 14 1704109 1 Chinese Spec - 400S 14 1704107 1 CSA Spec - 400S 14 1704112 1 CSA Spec - 460SJ 14 1704110 1 Japanese Spec - 400S 14 1704111 1 Korean Spec - 400S 14 1704106 1 Latin American Spec - 400S 14 1702688 1 Latin American Spec - 460SJ 14 Ref Decal - Capacity (Ground Control) (SN 0300100315
through 0300142869)
14 1707131 1 Brazilian Spec - 400S 14 1707133 1 Brazilian Spec - 460SJ 14 1707045 1 Chinese Spec - 400S 14 1707046 1 CSA Spec - 400S
REV
ITEM PART NUMBER QTY
DESCRIPTION
14 1707047 1 CSA Spec - 460SJ 14 1707053 1 Japanese Spec - 400S 14 1707043 1 Korean Spec - 400S 14 1707048 1 Latin American Spec - 400S 14 1707013 1 Latin American Spec - 460SJ 14 Ref Decal - Capacity (Ground Control) (SN 0300103508
through 0300142869)
14 1707044 1 Chinese Spec - 460SJ 14 1707054 1 Japanese Spec - 460SJ 14 1707042 1 Korean Spec - 460SJ 14 Ref Decal - Capacity (Ground Control) (SN 0300142870
through 0300203770)
14 1001125338 1 Brazilian Spec - 400S 14 1001121923 1 Brazilian Spec - 460SJ 14 1001121822 1 Chinese Spec - 400S 14 1001121825 1 Chinese Spec - 460SJ 14 1001121815 1 CSA Spec - 400S 14 1001121816 1 CSA Spec - 460SJ 14 1001121820 1 Japanese Spec - 400S 14 1001121821 1 Japanese Spec - 460SJ 14 1001122201 1 Korean Spec - 400S 14 1001121921 1 Korean Spec - 460SJ 14 1001121817 1 Latin American Spec - 400S 14 1001121814 1 Latin American Spec - 460SJ 14 Ref 340kg/750lb Maximum Capacity Options: 14 Ref Decal - Capacity (Ground Control) (SN 0300096000
through 0300100314)
14 1705076 1 Brazilian Spec - 400S 14 1705075 1 Chinese Spec - 400S 14 1705074 1 CSA Spec - 400S 14 1705071 1 Japanese Spec - 400S 14 1705072 1 Korean Spec - 400S 14 1705073 1 Latin American Spec - 400S 14 Ref Decal - Capacity (Ground Control) (SN 0300100315
through 0300142869)
14 1707130 1 Brazilian Spec - 400S 14 1707128 1 Chinese Spec - 400S 14 1707127 1 CSA Spec - 400S 14 1707125 1 Japanese Spec - 400S 14 1707126 1 Korean Spec - 400S 14 1707132 1 Latin American Spec - 400S 14 Ref Decal - Capacity (Ground Control) (SN 0300142870
through 0300203770)
14 1001125337 1 Brazilian Spec - 400S 14 1001125336 1 Chinese Spec - 400S 14 1001125335 1 CSA Spec - 400S 14 1001125332 1 Japanese Spec - 400S 14 1001125333 1 Korean Spec - 400S 14 1001125334 1 Latin American Spec - 400S 15 Ref Decal - USA Options: 15 3251813 1 Brazilian/CSA/Latin American Specs 15 Not Required 0 Chinese/Japanese/Korean Specs
REV
ITEM PART NUMBER QTY
DESCRIPTION
16 1701502 1 Decal - High Oil Level (SN 0300096000 through 0300128256) 17 1701503 1 Decal - Low Oil Level (SN 0300096000 through 0300128256) 18 1701504 2 Decal - Hydraulic Oil 19 Ref Decal - Inspection Options: 19 1704008 1 Brazilian Spec 19 Not Required 0 Chinese Spec 19 1704006 1 CSA Spec (SN 0300096000 through 0300151379) 19 Not Required 0 Japanese Spec 19 Not Required 0 Korean Spec 19 1704007 1 Latin American Spec (SN 0300096000 through 0300151379) 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 Ref Decal - Patent Options: 21 1700584 1 Decal - Patent (SN 0300096000 through 0300161239) 21 Not Required 0 All Specs except CSA Specs (SN 0300161240 through
0300203770)
21 1001131269 1 CSA Spec (Dual Language - English/French) (SN
0300161240 through 0300203770)
22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 AR Decal - Tie Down 25 1701500 4 Decal - Lift 26 1701529 4 Decal - Arrow 27 Ref Nameplate - 120V-60Hz Options: 27 3251243 1 Brazilian/CSA/Latin American Specs 27 Not Required 0 Chinese/Japanese/Korean Specs 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard (SN 0300096000 through 0300181170) 30 0641408 1 Bolt 1/4in-20NC x 1in (SN 0300096000 through 0300181170) 31 4751400 AR Flatwasher 1/4in Regular 32 3311405 AR Locknut 1/4in-20NC 33 3820001 AR Rivet 34 Ref Decal - Footswitch Options: 34 1703985 1 Brazilian Spec 34 1703982 1 Chinese Spec 34 1703984 1 CSA Spec 34 1703980 1 Japanese Spec 34 1703981 1 Korean Spec 34 1703983 1 Latin American Spec 35 Ref Decal - Maximum Tire Load Options: 35 Ref Decal - Maximum Tire Load (SN 0300096000 through
0300140364)
35 Not Required 0 Brazilian/Latin American Specs 35 Ref Chinese/ CSA/ Japanese/ Korean Spec Options: 35 1706126 4 Decal - Maximum Tire Load 400S with 230kg/500lb Capacity 35 1704829 4 Decal - Maximum Tire Load 400S with 340kg/750LB Capacity 35 1704828 4 Decal - Maximum Tire Load 460SJ 35 Ref Decal - Maximum Tire Load (SN 0300140365 through
0300203770)
35 Not Required 0 Brazilian/Latin American Specs 35 Ref Chinese/ CSA/ Japanese/Korean Spec Options: 35 1706126 2 Decal - Maximum Tire Load 400S with 230kg/500lb
REV
ITEM PART NUMBER QTY DESCRIPTION
Capacity 35 1704829 2 Decal - Maximum Tire Load 400S with 340kg/750LB Capacity 35 1704828 2 Decal - Maximum Tire Load 460SJ 36 Ref Decal - Fuel 36 1701542 1 GM Engine Machines 36 1701505 1 Caterpillar, Deutz and Perkins Engine Machines 37 Ref Decal - LPG Gas 37 Not Required 0 Non-Dual Fuel Machines 37 1701543 1 Dual Fuel Machines 38 Ref Decal - LP Gas Liquid Withdrawal System 38 Not Required 0 Non-Dual Fuel Machines 38 1700818 1 Dual Fuel Machines (English Language) 38 1704271 1 Dual Fuel Machines (CSA Spec) 38 1702720 1 Dual Fuel Machines (Spanish Language) 38 1001119661 1 DUAL FUEL MACHINES (ENGLISH/LATIN AMERICAN LANGUAGE) 39 Ref Decal - CSA Options: 39 3252221 1 CSA Specs 39 Not Required 0 Brazilian/ Chinese/ Japanese/ Korean/ Latin American Specs 40 1001108923 1 Decal - EPA/Carb Spec (Diesel Machines) 45 1701499 AR Decal - No Lift 46 Ref Decal - Lift Diagram Options: 46 Ref Decal - Lift Diagram Options: (SN 0300096000 through
0300161284)
46 3252685 1 Brazilian Spec 46 3252684 1 Chinese Spec 46 3252683 1 CSA Spec 46 3252680 1 Japanese Spec 46 3252681 1 Korean Spec 46 3252682 1 Latin American Spec 46 1001145140 1 Decal - Lift Diagram- All Specs (SN 0300161285 through
0300203770)
47 1704412 1 Decal - Hydraulic Oil Chart 49 1701691 4 Decal - No Step 50 1704726 4 Decal - Lock Latch 52 1704885 AR Decal - WWW.JLG.COM Options: 52 Ref Decal (SN 0300096000 through 0300173675) 52 Ref Decal (SN 0300173676 through 0300203770) 53 0641406 4 Bolt 1/4in-20NC x 3/4in 54 Ref Decal - Drive/Steer Instruction Options: (SN 0300140365
through 0300203770)
54 1705905 1 Brazilian Spec 54 1705430 1 Chinese Spec 54 1705429 1 CSA Spec 54 1705426 1 Japanese Spec 54 1705427 1 Korean Spec 54 1705910 1 Latin American Spec 1001160080 Ref ADDITIONAL DECAL COMPONENTS 253 1001125387 1 Decal - Emission Compliance
