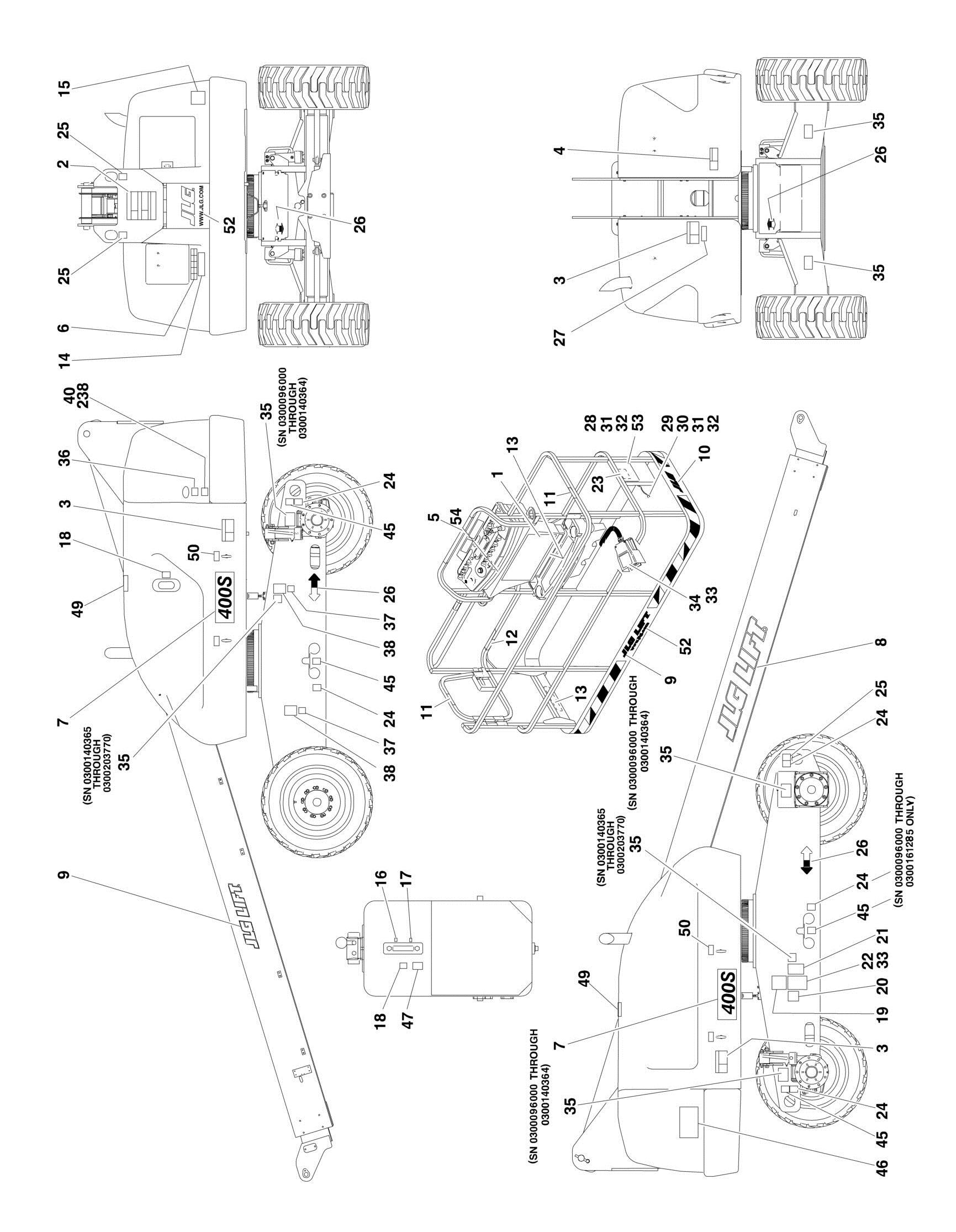

FIGURE 8-1. DECAL INSTALLATION (ANSI SPEC
FIGURE 8-1. DECAL INSTALLATION (ANSI SPEC)
FIGURE 8-1. DECAL INSTALLATION (ANSI SPEC)
ITEM PART NUMBER QTY
DESCRIPTION
Ref STANDARD DECAL INSTALLATIONS 0270398 Ref Decals JLG 0259159 Ref Decals JLG Model 400S with 500LB Capacity 0259981 Ref Decals JLG Model 400S with 750LB Capacity 0259160 Ref Decals JLG Model 460SJ 1 1703797 1 Decal - Danger/Warning (Platform) 2 1703798 1 Decal - Danger/Warning (Ground Control) 3 1703805 2 Decal - Danger/Electrocution 4 1703804 3 Decal - Warning Crushing 5 Ref Decal - Legend (Platform) Options: 5 1706708 1 Decal - Legend (Platform) (SN 0300096000 through
0300140364)
5 1001108492 1 Decal - Legend (Platform) (SN 0300140365 through
0300203770)
6 Ref Decal - Legend (Ground Control) Options: 6 1706709 1 Decal - Legend (Ground Control) (SN 0300096000 through
0300099083)
6 1706941 1 Decal - Legend (Ground Control) (SN 0300099084 through
0300203770)
7 Ref Decal - Model Designation Options: 7 1704472 2 Decal - Model Designation Model 400S 7 1704473 2 Decal - Model Designation Model 460SJ 8 1702861 2 Decal - JLG Lift (8in) 9 1702774 1 Decal - JLG Lift (3.5in) 10 1702773 1 Decal - JLG (5in) 11 1702868 2 Decal - No Hands 12 1704277 3 Decal - Attach Lanyard Here 13 Ref Decal - Capacity (Platform) Options: 13 Ref Decal - Capacity (Platform) 400S with 500lbs. Maximum Capacity Options: 13 1704096 2 Decal - Capacity (Platform) (SN 0300096000 through
0300142869)
13 1001121800 2 Decal - Capacity (Platform) (SN 0300142870 through
0300203770)
13 Ref Decal - Capacity (Platform) 13 1704488 2 Decal - Capacity (Platform) (SN 0300096000 through
0300142869)
13 1001125322 2 Decal - Capacity (Platform) (SN 0300142870 through
0300203770)
13 Ref Decal - Capacity (Platform) 460SJ Options: 13 1701645 2 Decal - Capacity (Platform) (SN 0300096000 through
0300142869)
13 1001121801 2 Decal - Capacity (Platform) (SN 0300142870 through
0300203770)
14
Ref Decal - Capacity (Ground Control) Options: 14 Ref Decal - Capacity (Ground Control) 400S with 500lbs. Maximum Capacity Options: 14 1704104 1 Decal - Capacity (Ground Control) (SN 0300096000 through
0300100314)
14 1707014 1 Decal - Capacity (Ground Control) (SN 0300100315 through
0300142869)
14 1001121813 1 Decal - Capacity (Ground Control) (SN 0300142870 through
0300203770) REV
B C D C
ITEM PART NUMBER QTY
DESCRIPTION
14 Ref Decal - Capacity (Ground Control) 400S with 750lbs. Maximum Capacity Options: 14 1704489 1 Decal - Capacity (Ground Control) (SN 0300096000 through
0300100314)
14 1707129 1 Decal - Capacity (Ground Control) (SN 0300100315 through
0300142869)
14 1001125331 1 Decal - Capacity (Ground Control) (SN 0300142870 through
0300203770)
14 Ref Decal - Capacity (Ground Control) 460SJ Options: 14 1702688 1 Decal - Capacity (Ground Control) (SN 0300096000 through
0300100314)
14 1707013 1 Decal - Capacity (Ground Control) (SN 0300100315 through
0300142869)
14 1001121814 1 Decal - Capacity (Ground Control) (SN 0300142870 through
0300203770)
15 3251813 1 Decal - USA 16 1701502 1 Decal - High Oil Level (SN 0300096000 through 0300128256) 17 1701503 1 Decal - Low Oil Level (SN 0300096000 through 0300128256) 18 1701504 2 Decal - Hydraulic Oil 19 1702153 1 Decal - Inspection (SN 0300096000 through 0300128256) 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 Ref Decal - Patent Options: 21 1700584 1 Decal - Patent (SN 0300096000 through 0300161239) 21 1001131269 1 Decal - Patent (SN 0300161240 through 0300203770) 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase)) 23 1701509 1 Decal - Manual 24 1702300 AR Decal - Tie Down 25 1701500 4 Decal - Lift 26 1701529 4 Decal - Arrow 27 3251243 1 Nameplate - 120V-60Hz 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard (SN 0300096000 through 0300181170) 30 0641408 1 Bolt 1/4in-20NC x 1in (SN 0300096000 through 0300181170) 31 4751400 AR Flatwasher 1/4in Regular 32 3311405 AR Locknut 1/4in-20NC 33 3820001 AR Rivet 34 3252347 1 Decal - Footswitch 35 Ref Decal - Maximum Tire Load Options: 35 Ref Decal - Maximum Tire Load (SN 0300096000 through
0300140364)
35 1706126 4 Decal - Maximum Tire Load Model 400S with 500LB Capacity 35 1704829 4 Decal - Maximum Tire Load Model 400S With 750LB Capacity 35 1704828 4 Decal - Maximum Tire Load MODEL 460SJ 35 Ref Decal - Maximum Tire Load (SN 0300140365 through
0300203770)
35 1706126 2 Decal - Maximum Tire Load Model 400S with 500LB Capacity 35 1704829 2 Decal - Maximum Tire Load Model 400S with 750LB Capacity 35 1704828 2 Decal - Maximum Tire Load MODEL 460SJ 36 Ref Decal - Fuel 36 1701542 1 GM Engine Machines 36 1701505 1 Caterpillar, Deutz and Perkins Engine Machines 37 Ref Decal - LPG Gas 37 Not Required 0 Non-Dual Fuel Machines
REV
ITEM PART NUMBER QTY DESCRIPTION
37 1701543 1 Dual Fuel Machines 38 Ref Decal - LP Gas Liquid Withdrawal System 38 Not Required 0 Non-Dual Fuel Machines 38 1700818 1 Dual Fuel Machines 40 1001108923 1 Decal - EPA/Carb Spec (Diesel Machines) (Caterpillar, Deutz D2011 and Perkins Engine Machine) 45 1701499 AR Decal - No Lift 46 Ref Decal - Lift Diagram Options: 46 3252672 1 Decal - Lift Diagram (SN 0300096000 through 0300161284) 46 1001145140 1 Decal - Lift Diagram (SN 0300161285 through 0300203770) 47 1704412 1 Decal - Hydraulic Oil Chart 49 1701691 4 Decal - No Step 50 1704726 4 Decal - Lock Latch 52 1704885 AR Decal - WWW.JLG.COM Options: 52 Ref Decal (SN 0300096000 through 0300173675) 52 Ref Decal (SN 0300173676 through 0300203770) 53 0641406 4 Bolt 1/4in-20NC x 3/4in 54 1705351 1 Decal - Drive/Steer Instructions (SN 0300140365 through
0300203770)
1001160080 Ref ADDITIONAL DECAL COMPONENTS 238 1001125387 1 Decal - Ultra Low Sulfur Fuel (Machines with Deutz TD2.9L4 Engines Only)
