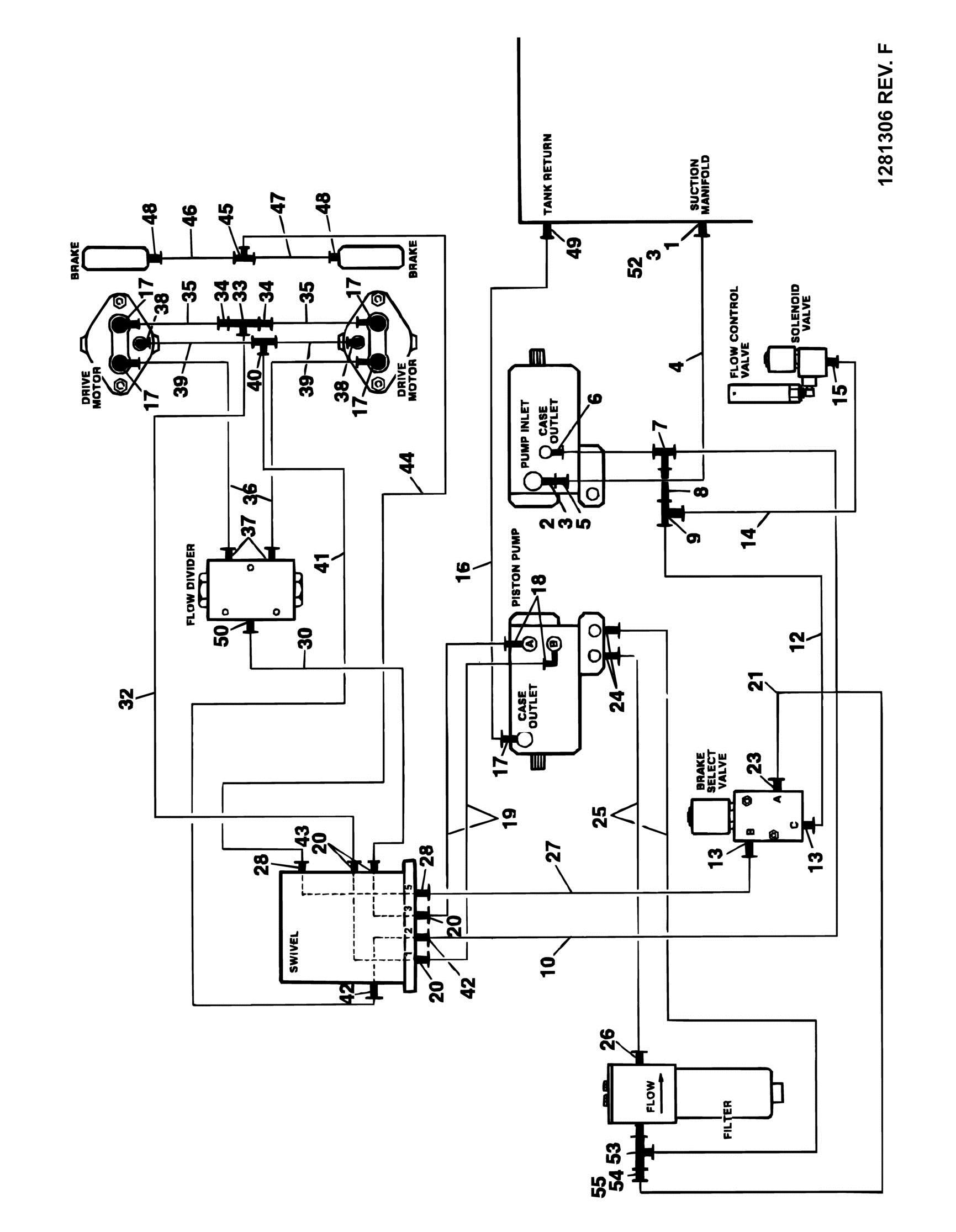

FIGURE 6-2. HYDRAULIC DIAGRAM - DRIVE (2WD
FIGURE 6-2. HYDRAULIC DIAGRAM - DRIVE (2WD)
FIGURE 6-2. HYDRAULIC DIAGRAM - DRIVE (2WD)
ITEM PART NUMBER QTY DESCRIPTION REV
Ref HYDRAULIC DIAGRAMS - DRIVE (2WD) 2791647 Ref 6ft 6in Frame 2WD - Deutz (With Swivel) E 2792059 Ref 6ft 6in Frame 2WD - With Proportional Controls (With Swivel) 2791689 Ref 5ft 9in Frame 2WD - Deutz (With Swivel) E 2792058 Ref 5ft 9in Frame 2WD - With Proportional Controls (With Swivel) 2792060 Ref Proportional Controls - With 12in x 16.5in Tires (With Swivel) 2792061 Ref 6ft 6in Frame - With 12in x 16.5in Tires (With Swivel) 1 2210003 1 Fitting, Barbed 2 2220646 1 Fitting, 90 3 1320023 4 Clamp 4 2720353 1 Hose, Suction (Prior to March 1993) 4 2720357 1 Hose, Suction (March 1993 to Present) 5 2210014 1 Fitting, 90, Barbed 6 2220375 1 Fitting, Straight 7 2220385 1 Fitting, Tee 8 2220618 1 Fitting, Reducer 9 2220605 1 Fitting, Tee (Not Required on Proportional Controls) 10 2750979 1 Hose 12 2751014 1 Hose 13 2220417 2 Fitting, Straight (Prior to March 1993) 13 2220582 2 Fitting, Straight (March 1993 to Present) 14 2751427 1 Hose (Not Required on Proportional Controls) 15 2220468 1 Fitting, Straight (Not Required on Proportional Controls) 16 2751631 1 Hose 17 2220457 5 Fitting, Straight 18 2220365 2 Fitting, 45 19 2752319 2 Hose 20 2220348 4 Fitting, Straight 21 2751010 1 Hose 22 2220582 1 Fitting, Straight (Prior to April 1992) 23 2220585 1 Fitting, 90, (Prior to March 1993) 23 2220472 1 Fitting, 90, (March 1993 to Present) 24 2220408 2 Fitting, Straight 25 2751614 2 Hose 26 2220578 1 Fitting, 90 27 2750760 1 Hose 28 2220414 2 Fitting, Straight 30 Ref Hose Options: 30 2752317 1 6ft 6in Frame 2WD 30 2752323 1 5ft 9in Frame 2WD 30 2752324 1 With 12in x 16.5 Tires 32 Ref Hose Options: 32 2752320 1 6ft 6in & 5ft 9in Frame 2WD 32 2752329 1 With 12in x 16.5 Tires 33 2220363 Fitting, Tee 34 2220710 2 Fitting, Reducer 35 2752240 2 Hose 36 Ref Hose Options: 36 2752241 2 6ft 6in Frame 2WD 36 2752238 2 5ft 9in Frame 2WD
ITEM PART NUMBER QTY DESCRIPTION
37 Ref Fitting Options: 37 2220465 2 6ft 6in Frame 2WD - Fitting, 90, (Prior to March 1993) 37 2220578 2 6ft 6in Frame 2WD - Fitting, 90, (March 1993 to Present) 37 2220465 2 5ft 9in Frame 2WD - Fitting, 90, (Prior to March 1993) 37 2220451 2 5ft 9in Frame 2WD - Fitting, Straight (March 1993 to Present) 38 2220600 2 Fitting, Straight 39 Ref Hose Options: 39 2750757 2 6ft 6in Frame 2WD 39 2751490 2 5ft 9in Frame 2WD 40 2220362 1 Fitting, Tee 41 2750777 1 Hose 42 2220345 2 Fitting, Straight 43 2220404 2 Fitting, 90 44 2751021 1 Hose (Prior to March 1993) 44 2751398 1 Hose (March 1993 to Present) 45 2220504 1 Fitting, Tee 46 Ref Hose Options: 46 2751013 1 6ft 6in Frame 2WD 46 2751427 1 5ft 9in Frame 2WD 47 Ref Hose Options: 47 2751015 1 6ft 6in Frame 2WD 47 2751427 1 5ft 9in Frame 2WD 48 2220466 2 Fitting, 90 49 2220493 1 Fitting, 90 50 2220377 1 Fitting, Straight 52 2220377 1 Fitting, Straight 53 2220738 1 Fitting, Tee 54 2220621 1 Fitting, Reducer 55 2220609 1 Fitting, Reducer
