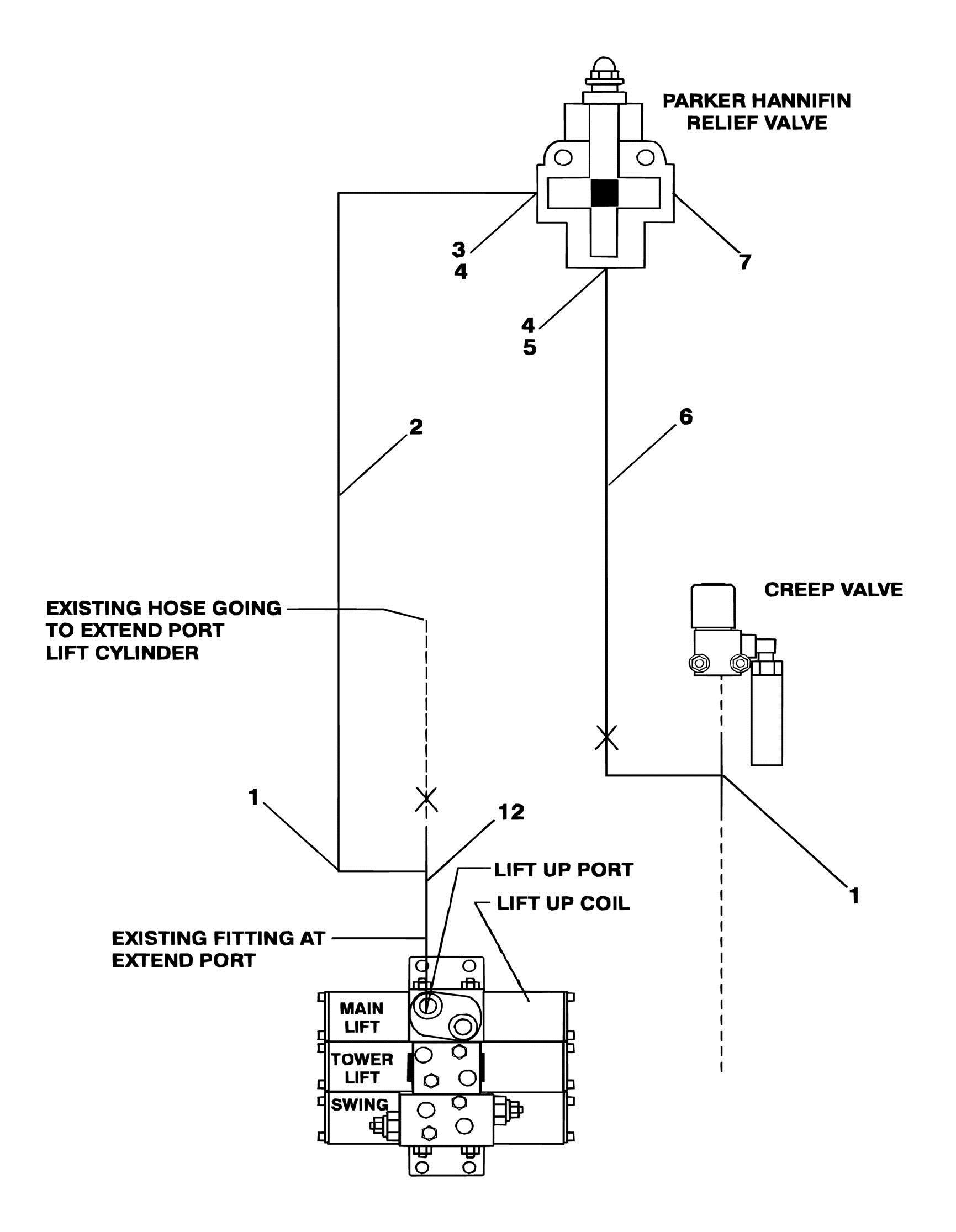

FIGURE 6-12. HYDRAULIC DIAGRAM - LIFT UP RELIEF (FORD AND DEUTZ

FIGURE 6-12. HYDRAULIC DIAGRAM - LIFT UP RELIEF (FORD AND DEUTZ)

FIGURE 6-12. HYDRAULIC DIAGRAM - LIFT UP RELIEF (FORD AND DEUTZ)

ITEM PART NUMBER QTY

DESCRIPTION

Ref HYDRAULIC DIAGRAMS - STEER: 2791792 Ref Ford 2791793 Ref Deutz 1 2220605 2 Fitting, Tee 2 Ref Hose Options: 2 2751398 1 Ford 2 2751011 1 Deutz 3 2220828 1 Fitting, 90 4 2220609 2 Fitting, Reducer 5 2220577 1 Fitting 6 2750889 1 Hose 7 2220239 1 Fitting 8 4640047 1 Valve, Relief 12 Ref Fitting, 90, Options: 12 Not Required 0 Ford 12 2220654 1 Deutz
