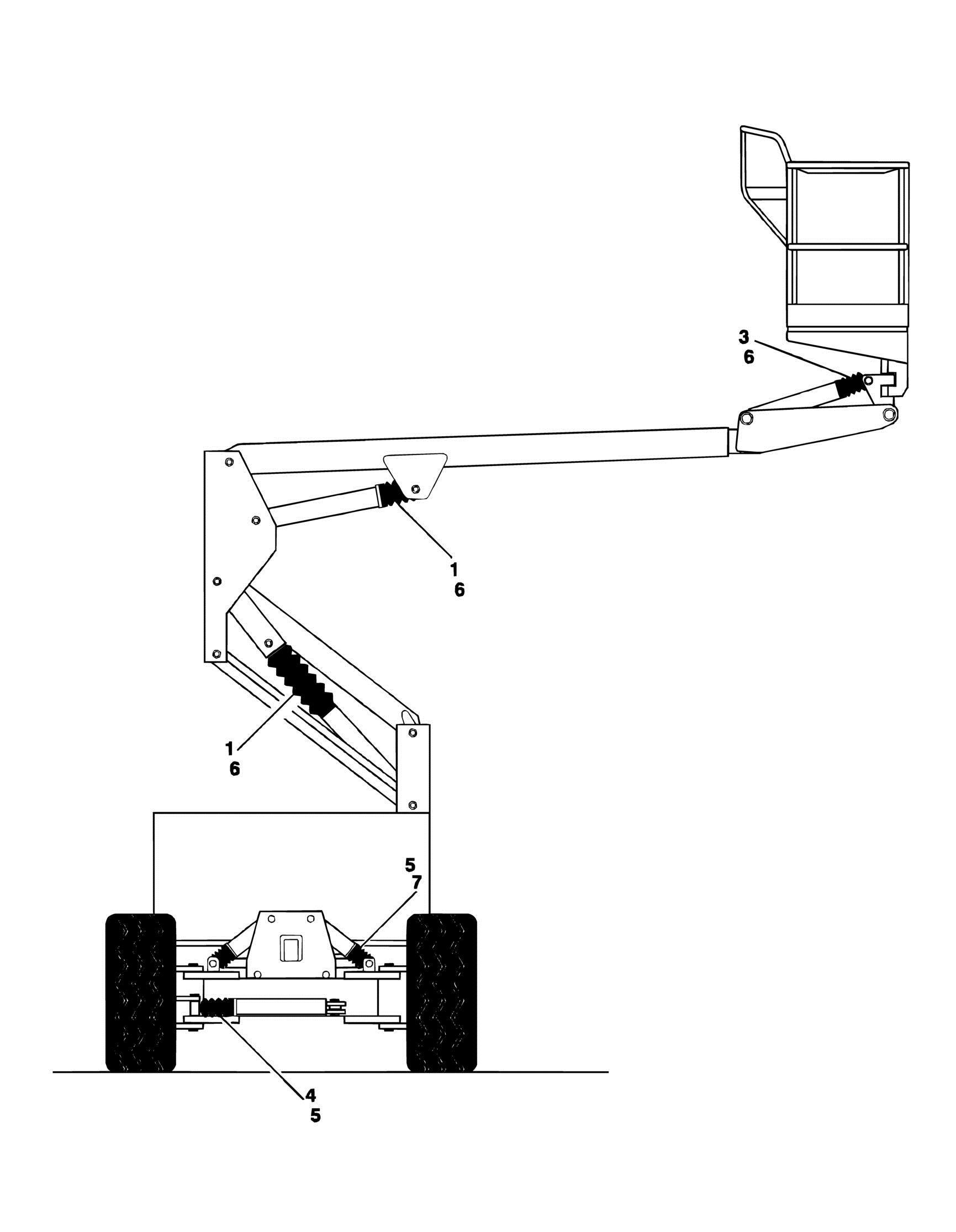

FIGURE 5-9. CYLINDER BELLOWS INSTALLATIONS

FIGURE 5-9. CYLINDER BELLOWS INSTALLATIONS

FIGURE 5-9. CYLINDER BELLOWS INSTALLATIONS

ITEM PART NUMBER QTY

DESCRIPTION

0250635 Ref BELLOWS INSTALLATION - 2WD MACHINES WITH FIXED

AXLE AND 6FT 6IN FRAME

1 0460093 2 Bellows, Cylinder (Upper and Lower Lift Cylinder) 3 0460084 1 Bellows, Cylinder (Upper Slave) 4 0460082 2 Bellows, Cylinder (Steer) 5 1320037 2 Clamp 6 1320122 3 Clamp 7 Not Required 0 Not Required 0250636 Ref BELLOWS INSTALLATION - 2WD MACHINES WITH

OSCILLATING AXLE AND 6FT 6IN FRAME

1 0460093 2 Bellows, Cylinder (Upper and Lower Lift Cylinder) 3 0460084 1 Bellows, Cylinder (Upper Slave) 4 0460082 2 Bellows, Cylinder (Steer) 5 1320037 4 Clamp 6 1320122 3 Clamp 7 0460083 2 Bellows, Cylinder (Lockout) 0254098 Ref BELLOWS INSTALLATION - 2WD MACHINES WITH

OSCILLATING AXLE AND 5FT 9IN FRAME

1 0460093 2 Bellows, Cylinder (Upper and Lower Lift Cylinder) 3 0460084 1 Bellows, Cylinder (Upper Slave) 4 0460073 1 Bellows, Cylinder (Steer) 5 1320037 2 Clamp 6 1320122 4 Clamp 7 0460083 2 Bellows, Cylinder (Lockout) 0254099 Ref BELLOWS INSTALLATION - 2WD MACHINES WITH Fixed AXLE

AND 5FT 9IN FRAME

1 0460093 2 Bellows, Cylinder (Upper and Lower Lift Cylinder) 3 0460084 1 Bellows, Cylinder (Upper Slave) 4 0460075 1 Bellows, Cylinder (Steer) 5 Not Required 0 Not Required 6 1320122 4 Clamp 7 Not Required 0 Not Required 0256335 Ref BELLOWS INSTALLATION - 2WD MACHINES WITH

OSCILLATING AXLE AND 5FT 9IN FRAME

1 0460093 2 Bellows, Cylinder (Upper and Lower Lift Cylinder) 3 0460084 1 Bellows, Cylinder (Upper Slave) 4 0460075 1 Bellows, Cylinder (Steer) 5 1320037 2 Clamp 6 1320122 4 Clamp 7 0460083 2 Bellows, Cylinder (Lockout)

REV

D

D

C

B
