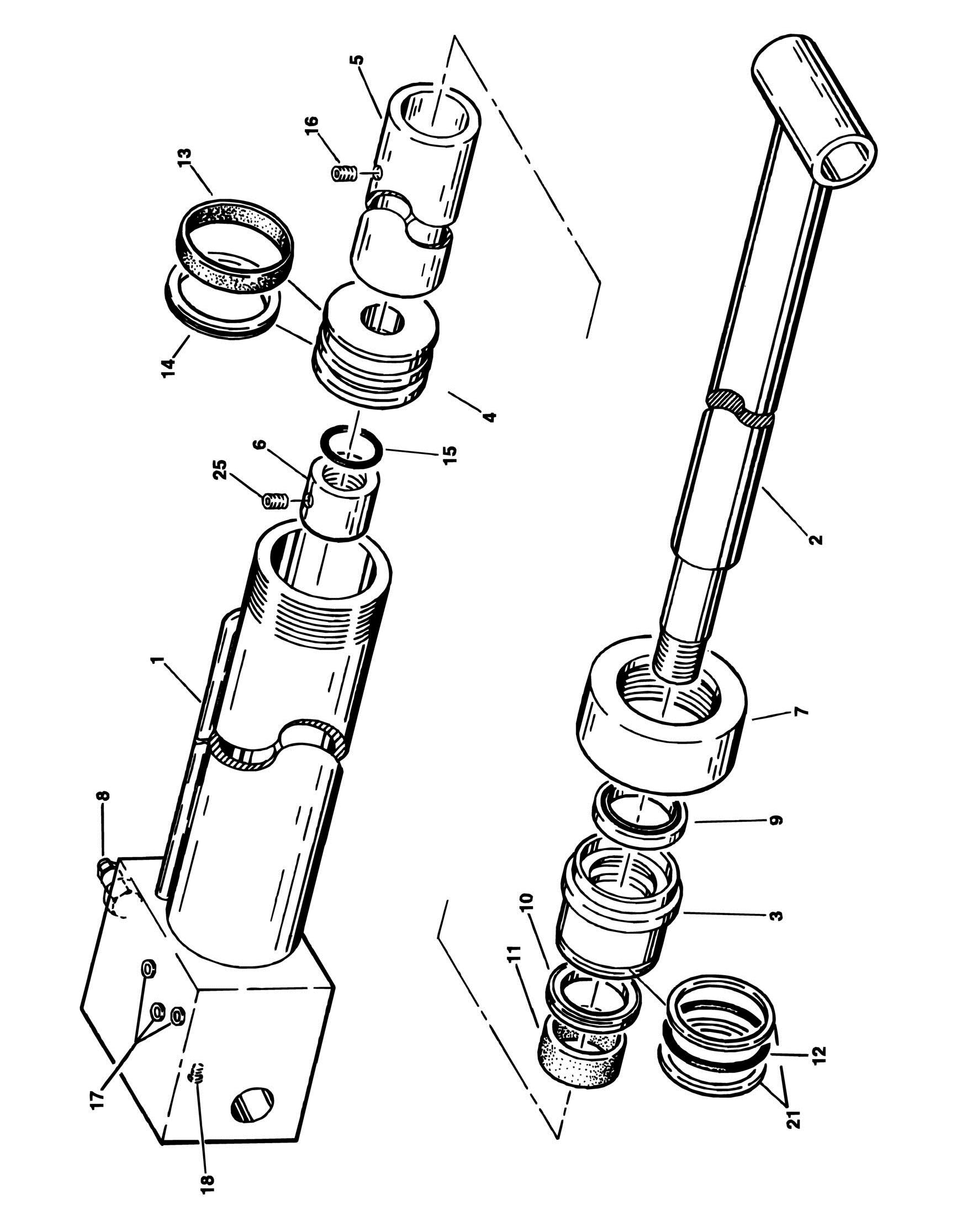

FIGURE 5-8. TELESCOPE CYLINDER ASSEMBLY
FIGURE 5-8. TELESCOPE CYLINDER ASSEMBLY
FIGURE 5-8. TELESCOPE CYLINDER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1682179 Ref TELESCOPE CYLINDER ASSEMBLY 1 1681793 1 Barrel 2 1681712 1 Rod 3 1681635 1 Head 4 3480120 1 Piston 5 4564587 1 Spacer, Tube 6 Ref Nut Options: 6 3300101 1 Nut, Rod (Prior to January 1992) 6 3300272 1 Nut, Hex (January 1992 to Present) 7 1120179 1 Cap 8 4640634 1 Valve, Holding 9 Kit 1 Wiper, Rod 10 Kit 1 Seal, Rod 11 Kit 1 Ring, Wear 12 Kit 1 O-Ring 13 Kit 1 Ring, Wear 14 Kit 1 Seal, Piston 15 Kit 1 O-Ring 16 3951402 1 Set Screw 1/4in-20NC x 1/4in 17 2200202 4 Plug, Fitting 18 2200201 1 Plug, Fitting 19 0100020 AR Sealant (Not Shown) 20 0100011 AR Loctite #242 (Not Shown) 21 Kit 2 Ring, Back-up 23 0100035 AR Loctite #222 (Not Shown) 24 0100038 AR Primer, Locking (Not Shown) 25 3900170 1 Set Screw 3/8in-16NC x 3/8in 2900381 1 Seal Kit (Includes Items 9-15 & 21)
REV
B
