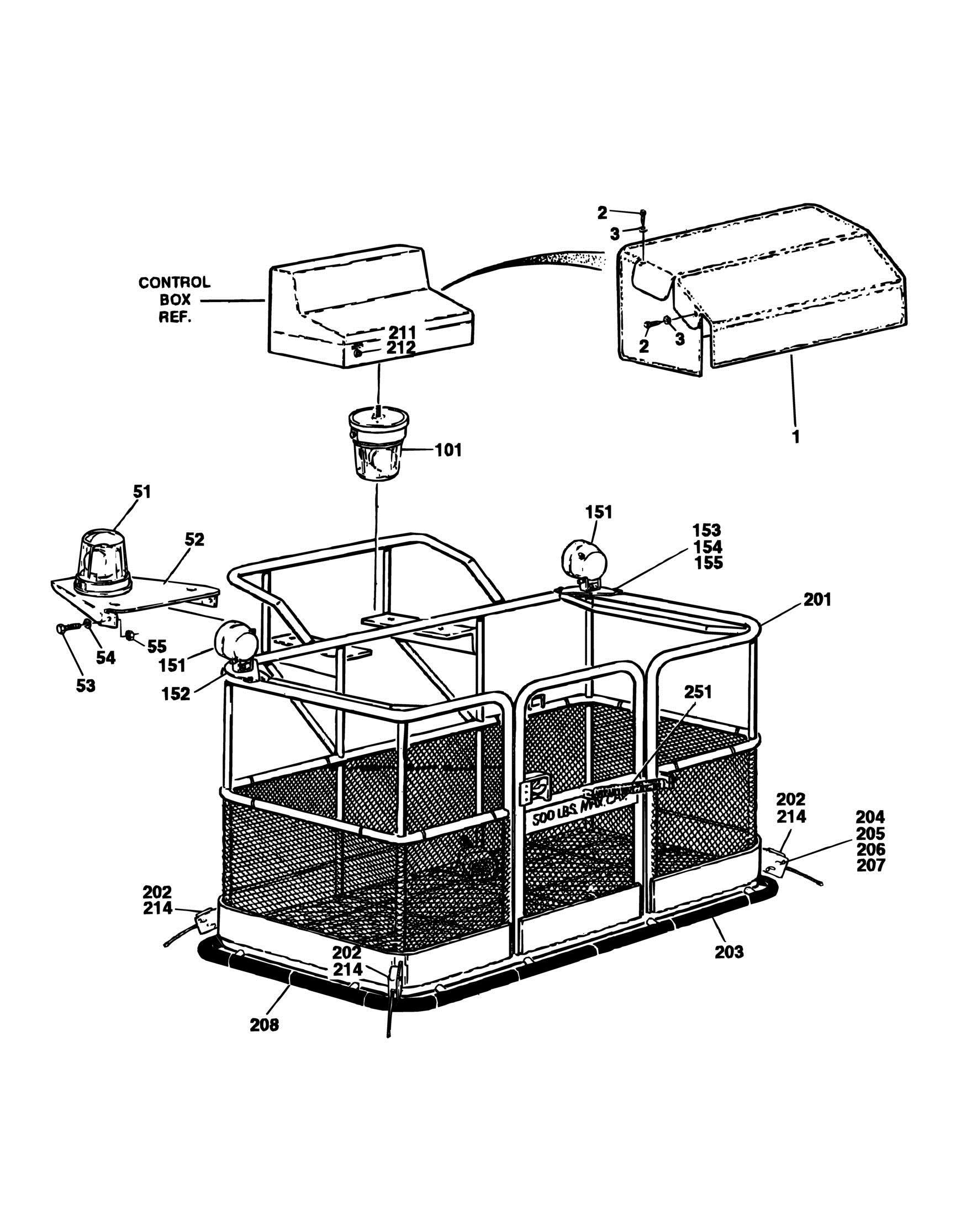

FIGURE 4-7. OPTIONAL COMMON PLATFORM MOUNTED COMPONENTS
ITEM PART NUMBER QTY DESCRIPTION REV
0252054 Ref CONSOLE BOX COVER INSTALLATION (BLACK) 0251203 Ref CONSOLE BOX COVER INSTALLATION (YELLOW) 2 2
1 Ref Cover Options: 1 1670607 1 Black 1 1670526 1 Yellow 2 3941406 4 Self-Tapping Screw 1/4in-20NC 3 4751400 4 Flatwasher 1/4in 0238942 Ref CONSOLE BOX COVER INSTALLATION (NOT SHOWN) 1670474 1 Cover 3380364 1 Panel, Rear 3941003 2 Self-Tapping Screw #10 x 3/4in 4761000 2 Lockwasher #10 4280265 1 Strip, Retainer Ref BEACON LIGHT INSTALLATION OPTIONS: (PRIOR TO
SEPTEMBER 1991)
0238866 Ref AMBER 0238867 Ref RED 51 Ref Beacon Options: 51 2920018 1 Amber 51 2920009 1 Red 52 0901449 1 Bracket, Mounting 53 0641406 2 Bolt 1/4in-20NC x 3/4in 54 4761400 2 Lockwasher 1/4in 55 3311401 2 Nut 1/4in-20NC Ref BEACON LIGHT INSTALLATION OPTIONS: (SEPTEMBER 1991
TO PRESENT)
0252210 Ref AMBER 0252211 Ref RED 3 3
101 Ref Beacon Options: 101 2920018 1 Amber 101 2920009 1 Red 102 3520034 1 Plug, Hole 5/16in (Not Shown) 105 2540016 1 Grommet (Not Shown) 0238966 Ref FLOODLIGHT (PRIOR TO NOVEMBER 1992) A
151 2920013 2 Floodlight 0253987 Ref PLATFORM WORKLIGHT (NOVEMBER 1992 TO PRESENT) 4 151 2920111 2 Halogen Light 152 3536089 2 Bracket, Mounting 153 0641414 4 Bolt 1/4in-20NC x 1 3/4in 154 3311405 4 Locknut 1/4in-20NC 155 4711400 4 Flatwasher 1/4in 0251024 Ref PLATFORM BUMPERS INSTALLATION C 201 3510261 1 Weldment, Platform 202 4360215 4 Switch, Proximity 203 0940038 AR Padding, Bumper 204 3911012 8 Screw, Round Head #10-24NC x 3/4in 205 4751000 8 Flatwasher #10 206 4761000 8 Lockwasher #10 207 3311001 8 Nut #10-24 208 4260018 12 Strip, Tie
ITEM PART NUMBER QTY DESCRIPTION
210 2540016 9 Grommet (Not Shown) 211 3251516 1 Tag - Override 212 4360274 1 Switch, Push Button (Override) 213 3740049 1 Relay (Not Shown) 214 4460521 4 Strain Relief 0250143 Ref SELF-CLOSING GATE INSTALLATION (OPTIONAL) 251 0900232 1 Bracket (Door Attach) 251 4160028 1 Spring 251 0901056 1 Bracket (Platform Attach) 251 4220007 1 Stop, Door
REV
A
