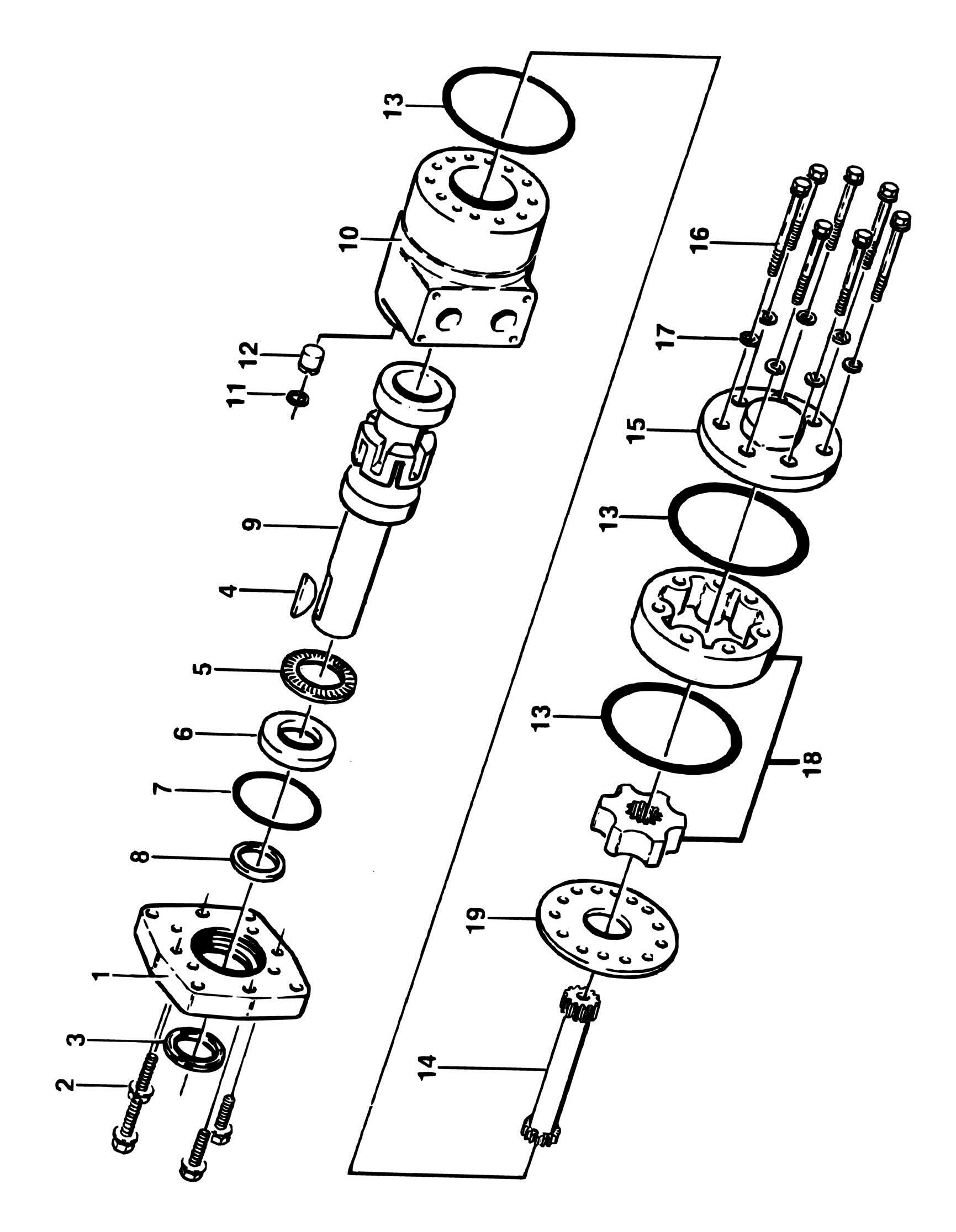

FIGURE 4-3. ROTATOR MOTOR ASSEMBLY (WORM GEAR DRIVE
ITEM PART NUMBER QTY
DESCRIPTION
3160083 Ref ROTATOR MOTOR ASSEMBLY 1 7002105 1 Flange, Mounting 2 7002123 4 Screw, Cap 3 Kit 1 Seal, Dust 4 7002104 1 Key, Woodruff 5 7002111 1 Bearing, Thrust Needle 6 7002117 1 Thrust, Bearing Race 7 Kit 1 Seal, O-Ring 8 Kit 1 Seal, Pressure 9 7002116 1 Shaft, Output 10 7002103 1 Housing 11 Kit 1 Seal 12 7009992 1 Plug, Housing 13 Kit 3 Seal, O-Ring 14 7002112 1 Drive 15 7002107 1 Cap, End 16 7002100 7 Screw, Cap 17 7000166 7 Lockwasher 18 7002125 1 Gerotor Sub-Assembly 19 7002110 1 Plate, Spacer 2900455 1 Seal Kit (Includes Items 3, 7, 8, 11 & 12)
REV
A
