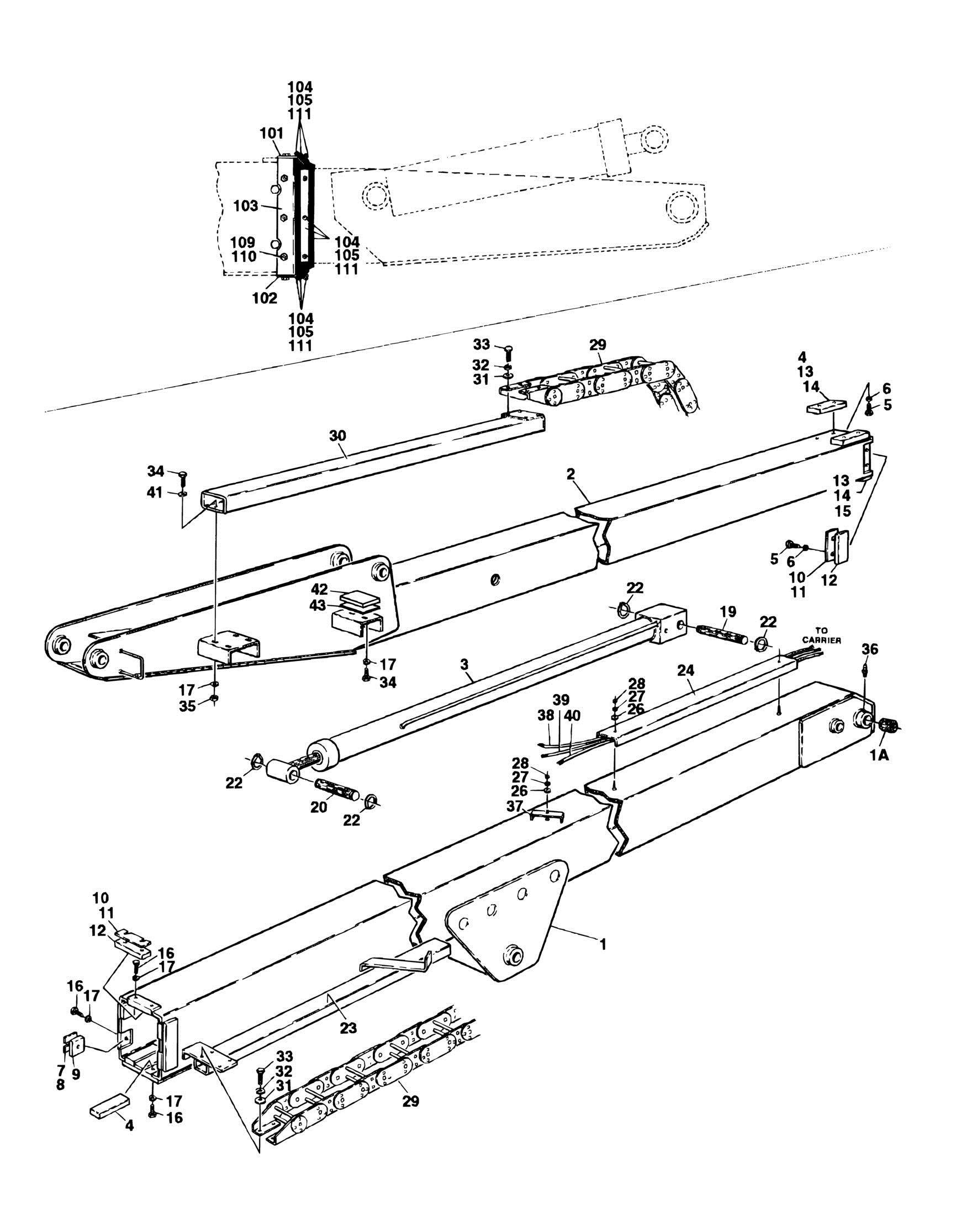

FIGURE 3-2. BOOM ASSEMBLIES
FIGURE 3-2. BOOM ASSEMBLIES
FIGURE 3-2. BOOM ASSEMBLIES
ITEM PART NUMBER QTY
DESCRIPTION
0800630 Ref BOOM ASSEMBLY AND WIPERS INSTALLATION 1 0800627 1 Weldment, Base 1A 0961595 2 Bushing 2 0800716 1 Weldment, Fly 3 1682179 1 Telescope Cylinder Assembly (See CYLINDER SECTION for Breakdown) 4 3340263 4 Pad, Wear 5 0641604 4 Bolt 3/8in-16NC x 1/2in 6 4761600 4 Lockwasher 3/8in 7 4070664 AR Shim 1/16in 8 4070665 AR Shim 1/32in 9 3340545 4 Pad, Wear 10 4070666 AR Shim 1/16in 11 4070667 AR Shim 1/32in 12 3340547 3 Pad, Wear 13 Ref Shim 1/16in Options: 13 4070649 AR Shim 1/16in (Prior to August 1995) 13 4070498 AR Shim 1/16in (August 1995 to Present) 14 Ref Shim Options: 14 4070646 AR Shim 9/64in (Prior to August 1995) 14 4070499 AR Shim 1/32in (August 1995 to Present) 15 4070645 AR Shim 11/64in (Prior to August 1995) 16 0641606 14 Bolt 3/8in-16NC x 3/4in 17 4761600 20 Lockwasher 3/8in 18 0100019 AR Loctite #271 (Not Shown) 19 3421719 1 Pin 20 3421413 1 Pin 21 3020028 AR Lubricant (Not Shown) 22 3760133 4 Ring, Retaining 23 4843442 1 Cover, Hose (Side Bottom) (Welded on Part) 24 4842891 1 Cover, Hose (Top) 25 4300070 3 Stud (Welded on Part) 26 4751500 3 Flatwasher 5/16in 27 4761500 3 Lockwasher 5/16in 28 3311505 3 Nut 5/16in-18NC 29 1180227 1 Carrier 29 7006152 1 Kit, Pin (1 pin, 4 Different Size Washers and 1 Retaining Ring) 29 7006151 1 Feet Mounting 29 7006139 1 1ft Section 29 7006156 1 Rod, Carrier 30 4843443 1 Cover, Hose (Side Top) 31 4751400 12 Flatwasher 1/4in 32 4761400 8 Lockwasher 1/4in 33 0641406 8 Bolt 1/4in-20NC x 3/4in 34 0641608 6 Bolt 3/8in-16NC x 1in 35 3311605 4 Nut 3/8in-16NC 36 2160002 1 Fitting, Grease 37 1320168 1 Clamp, Hose 38 1060516 56 ft Cable, Electrical - 16/30 (Was P/N 1060229) 39 4920618 1 Harness, 110 volt
REV
10
ITEM PART NUMBER QTY
DESCRIPTION
40 1060515 56 ft Cable, Electrical - 12/4 (was p/n 1060012) 41 4751600 8 Flatwasher 3/8in 42 0560923 1 Block 43 4070559 4 Shim 1/16in 0251388 Ref BOOM WIPERS INSTALLATION 101 2660057 1 Holder, Wiper (Top) 102 2660058 1 Holder, Wiper (Bottom) 103 2660059 2 Holder, Wiper (Side) 104 0540070 4 Blade, Wiper 105 4280188 4 Retainer, Strip 107 4300031 10 Stud (Welded on Part) (5/8in Length) 108 4300032 2 Stud (Welded on Part) (7/8in Length) 109 3311401 26 Nut 1/4in-20NC 110 4761400 24 Lockwasher 1/4in 111 0641407 12 Bolt 1/4in-20NC x 7/8in
