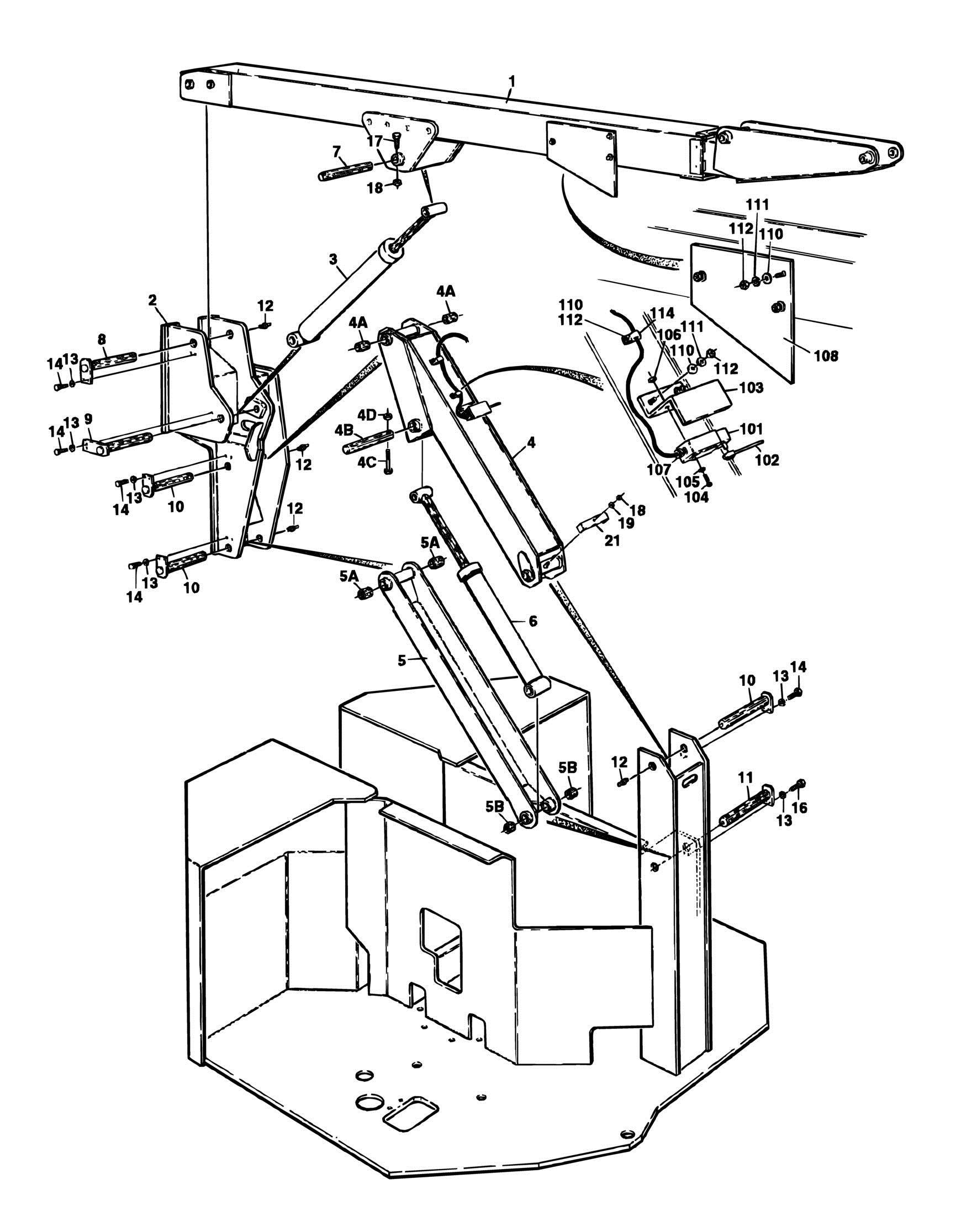

FIGURE 3-1. TURNTABLE, BOOM AND HORIZONTAL LIMIT SWITCH INSTALLATIONS
ITEM PART NUMBER QTY DESCRIPTION
Ref TURNTABLE OPTIONS: 4620048 1 Turntable - Domestic 6ft-6in (Gas and Diesel) 4620061 1 Turntable - CSA 6ft-6in (Gas and Diesel) 4620062 1 Turntable - Domestic 5ft-9in (Gas and Diesel) 4620066 1 Turntable - Domestic 6ft-6in (Electric) 4620067 1 Turntable - CSA 6ft-6in (Electric) 4620068 1 Turntable - Domestic 5ft-9in (Electric) Ref BOOM INSTALLATIONS 0250456 Ref Domestic 6
0252112 Ref CSA 1 0800630 1 Boom Assembly (See BOOM ASSEMBLIES for Breakdown) 2 4843502 1 Upright, Weldment 3 1681840 1 Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 4 4842603 1 Arm Weldment - Upper 4A 0961024 2 Bushing, Oilite 4B 3421419 1 Pin 4C 0641420 1 Bolt 1/4in-20NC x 2 1/2in 4D 3311405 1 Locknut 1/4in-20NC 5 4842485 1 Arm Weldment - Lower 5A 0961024 2 Bushing, Oilite 5B 0961198 2 Bushing, Oilite 6 1681780 1 Articulate Cylinder Assembly (See CYLINDER SECTION for Breakdown) 7 Ref Pin (Boom Attach) Options: 7 3421752 1 Domestic (Prior to SN 30067) 7 3422637 1 Domestic (SN 30067 to Present) 7 3421955 1 CSA (Prior to SN 30067) 7 3422638 1 CSA (SN 30067 to Present) 8 Ref Pin Options: 8 3421751 1 Domestic 8 3421957 1 CSA 9 Ref Pin (Upright Attach) Options: 9 3421749 1 Domestic 9 3421959 1 CSA 10 Ref Pin Options: 10 3422011 3 Domestic 10 3422013 3 CSA 11 Ref Pin (Lower Arm/Turntable Attach) Options: 11 3421725 1 Domestic 11 3421963 1 CSA 12 2160002 4 Fitting, Grease 13 4751600 12 Flatwasher 3/8in 14 0641607 10 Bolt 3/8in-16NC x 7/8in 15 0100019 AR Loctite #271 (Not Shown) 16 0641609 2 Bolt 3/8in-16NC x 1 1/4in 17 0641524 1 Bolt 5/16in-18NC x 3in 18 3311505 2 Nut 5/16in-18NC 19 4751500 1 Flatwasher 5/16in 20 4300070 1 Stud (Welded on Part)
REV
2
ITEM PART NUMBER QTY DESCRIPTION
21 1320168 1 Clamp 0250656 Ref HORIZONTAL LIMIT SWITCH INSTALLATION 101 4360057 1 Limit, Switch 102 0200322 1 Arm 103 0901422 1 Bracket, Mounting 104 3911036 2 Screw, Round Head #10-24NC x 2 3/16in 105 4761000 2 Lockwasher #10 106 3311001 2 Nut #10-24NC 107 4460049 1 Connector 108 3534069 1 Plate, Actuator 109 4300032 7 Stud (Welded on Part) 110 4751400 7 Flatwasher 1/4in 111 4761400 7 Lockwasher 1/4in (Prior to August 1991) 112 Ref Hardware Options: 112 3311401 7 Nut 1/4in-20NC (Prior to August 1991) 112 3311405 7 Locknut 1/4in-20NC (August 1991 to Present) 113 4300031 2 Stud (Welded on Part) (Prior to August 1991) 114 1320040 2 Clamp
REV
B
