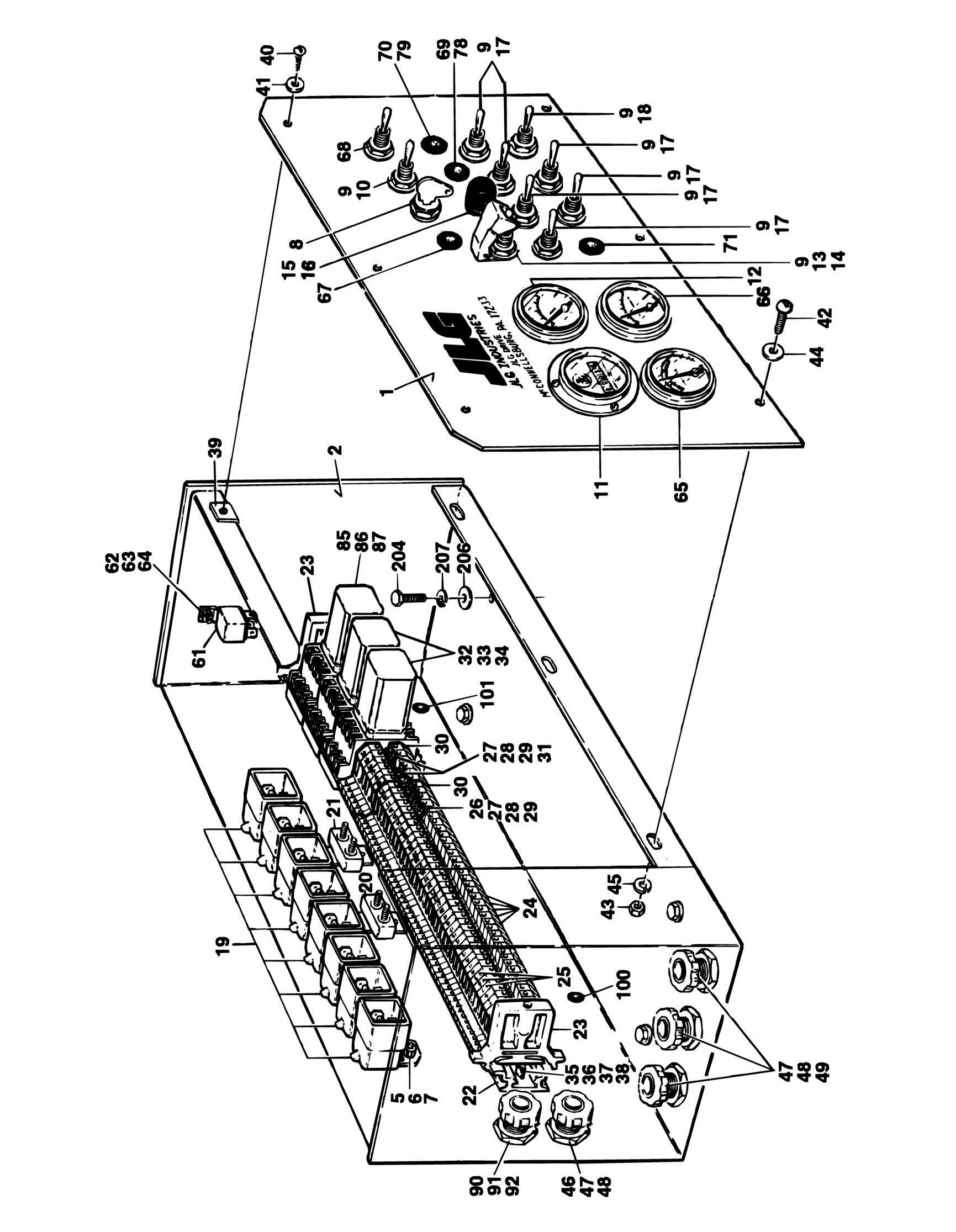

FIGURE 2-26. GROUND CONTROL BOX ASSEMBLY

FIGURE 2-26. GROUND CONTROL BOX ASSEMBLY

FIGURE 2-26. GROUND CONTROL BOX ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

Ref GROUND CONTROL BOX ASSEMBLIES 0860658 Ref Ford LSG-411 (Prior to August 1994) 0860953 Ref Ford LSG-411 (With Prestolite Alternator) (August 1994 to

Present)

0860961 Ref Ford LSG-411 (With Proportional Controls) 0860649 Ref Deutz F2L1011 0860882 Ref Deutz F2L1011 (With Proportional Controls) 0860676 Ref Electric 1 Ref Box Options: 1 0860645 1 Gas and Diesel (With Prestolite Alternator) 1 0860576 1 Gas and Diesel (With Proportional Controls) 1 0860637 1 Electric 2 3251895 1 Lid 5 4751000 11 Flatwasher #10 6 4761000 11 Lockwasher #10 7 3311001 11 Nut #10-24NC 8 4360003 1 Switch, Key (Master Switch) 9 3790012 9 O-Ring 10 4360073 1 Switch, Toggle - Center Off (Select) 11 2420009 1 Hourmeter 12 Ref Gauge Options: 12 2420129 1 Voltmeter (Ford and Deutz) 12 2420091 1 Voltmeter (Deutz) (With Proportional Controls) 12 3520070 1 Plug (Electric) 13 4360199 1 Switch, Toggle (Ignition) 14 4360141 1 Switch, Guard 15 3790015 1 O-Ring 16 Ref Switch Options: 16 4360274 1 Switch, Push Button (Ford and Deutz) 16 3520026 1 Plug (Electric) 17 4360202 6 Switch, Toggle 18 4360200 1 Switch, Toggle 19 3740049 AR Relay 20 4360216 1 Breaker, Circuit 30 Amp 21 4360232 1 Breaker, Circuit 15 Amp 22 Ref Track 22 3640492 1 Ford and Deutz (Prior to November 1990) 22 3640711 1 Ford and Deutz (November 1990 to Present) 22 3640492 1 Electric (Prior to March 1995) 22 3640764 1 Electric (March 1995 to Present) 23 4460299 2 Stop, Terminal 24 4460298 45 Block, Terminal 25 4460301 1 Marker, Terminal 26 4460311 1 Bar, Buss - 5 Position 27 4460305 AR Screw, Terminal 28 4460306 AR Washer, Terminal 29 4460307 AR Sleeve, Terminal 30 4460300 2 Barrier, Terminal 31 4460308 AR Bar, Buss - 2 Position 32 4120013 AR Base, Relay

REV

C

2 C 3 D

ITEM PART NUMBER QTY DESCRIPTION

33 3740058 AR Relay 34 3740063 AR Spring, Relay 35 4750600 2 Flatwasher #6 36 4760600 2 Lockwasher #6 37 3310601 2 Nut #6-32NC 38 3910606 2 Screw #6-32NC x 3/8in 39 3300177 2 Nut, Tinnerman 40 0750806 2 Screw, Self-Tapping #8 x 3/4in 41 4740120 2 Washer, Fiber 42 3911412 3 Screw, Round Head 1/4in-20NC x 3/4in 43 3311401 3 Nut 1/4in-20NC 44 4751400 3 Flatwasher 1/4in 45 4761400 3 Lockwasher 1/4in 46 4460071 1 Relief, Strain 47 3300048 4 Nut, Conduit 48 0960238 4 Bushing 49 4460051 AR Relief, Strain 50 4420037 38 in Strip, Rubber (Not Shown) 61 Ref Relay, Bosch Options: 61 3740049 1 Ford - 12V 61 3740077 1 Deutz - 6V 62 4751000 1 Flatwasher #10 63 4761000 1 Lockwasher #10 64 3311001 1 Nut #10-24NC 65 Ref Gauge Options: 65 2420128 1 Gauge, Oil Pressure (Ford) 65 2420111 1 Gauge, Oil Pressure (Deutz) 65 3520070 1 Plug, Hole 2 1/8in (Electric) 66 Ref Gauge Options: 66 2420127 1 Gauge, Water Temperature (Ford) 66 2420125 1 Gauge, Water Temperature (Deutz) 66 3520070 1 Plug (Electric) 67 Ref Plug Options: 67 3520026 1 Plug, Hole 5/8in (Ford and Electric) 67 4360212 1 Breaker, Circuit (Deutz) 68 3520028 1 Plug, Hole 1/2in 69 3520028 1 Plug, Hole 1/2in 70 3520026 1 Plug, Hole 5/8in 71 3520028 1 Plug, Hole 1/2in 85 4120013 1 Socket, Relay (Ford - With Proportional Controls) 86 3740048 1 Relay (Ford - With Proportional Controls) 87 3740063 1 Spring, Relay (Ford - With Proportional Controls) 90 4460244 1 Relief, Strain (Ford and Deutz - With Proportional Controls) 91 3300048 1 Nut, Conduit (Ford and Deutz - With Proportional Controls) 92 0960238 AR Bushing (Ford and Deutz - With Proportional Controls) 98 3911008 1 Screw #10-24NC x 1/2in (Ford and Deutz - With Proportional Controls) 99 3520034 2 Plug, Hole 5/16in (Ford and Deutz - With Proportional Controls) (Not Shown) 100 3520054 4 Plug, Hole 7/16in (Ford and Deutz - With Proportional Controls) 101 3520028 1 Plug, Hole 1/2in (Ford and Deutz - With Proportional Controls) 102 3520026 2 Plug, Hole 5/8in (Ford and Deutz - With Proportional Controls)

REV

ITEM PART NUMBER QTY DESCRIPTION REV

(Not Shown) 103 3520168 3 Plug, Hole 3/16in (Ford and Deutz - With Proportional Controls) (Not Shown) Ref GROUND CONTROL BOX INSTALLATIONS 0250696 Ref Ground Control Box (Ford) (Prior to March 1995)

C 0255135 Ref Ground Control Box (Ford) (March 1995 to Present) 2 0255154 Ref Ground Control Box (Ford - With Proportional Controls) 2 0251008 Ref Ground Control Box (Deutz) 2 0254387 Ref Ground Control Box (Deutz - With Proportional Controls) 2 0251051 Ref Ground Control Box (Electric) 2 204 0641406 4 Bolt 1/4in-20NC x 3/4in 206 4751400 4 Flatwasher 1/4in 207 4761400 4 Lockwasher 1/4in
