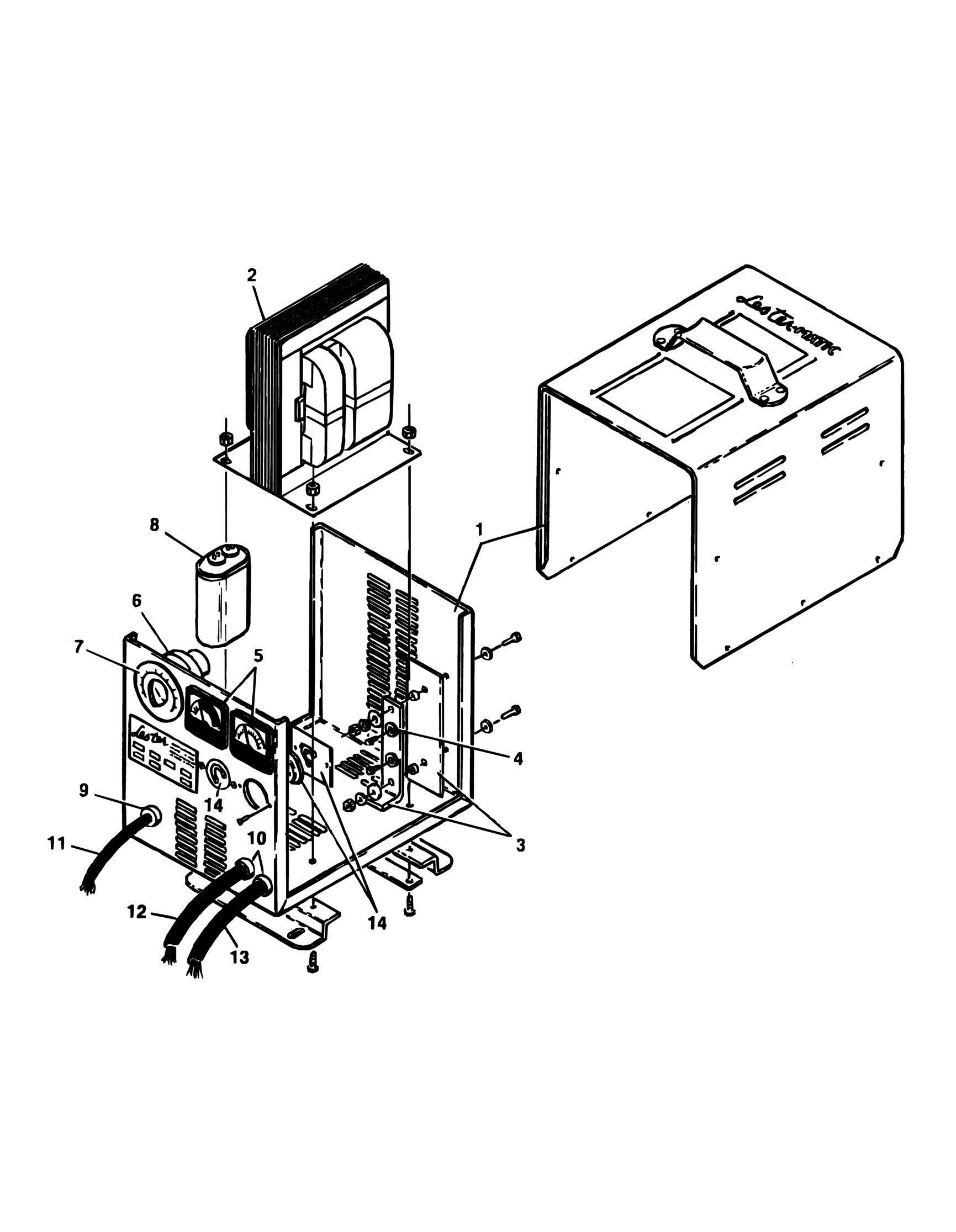

FIGURE 2-19. BATTERY CHARGER ASSEMBLY
FIGURE 2-19. BATTERY CHARGER ASSEMBLY
FIGURE 2-19. BATTERY CHARGER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
0400068 Ref BATTERY CHARGER ASSEMBLY 1 7005955 1 Case, Assembly 2 7005956 1 Transformer Assembly 3 7005957 2 Heat Sink Assembly 4 7005958 4 Diode 5 7005959 2 Ammeter 6 7005951 1 Timer 7 7005941 1 Knob, Timer 8 7005928 1 Capacitor 9 7005935 3 Bushing 10 7005960 2 Bushing 11 7005937 1 Cord Set, AC 12 7005961 1 Cord Set, 12VDC 13 7005962 1 Auxiliary Relay Cable Assembly 48VDC 14 7005963 2 Fuse Assembly
