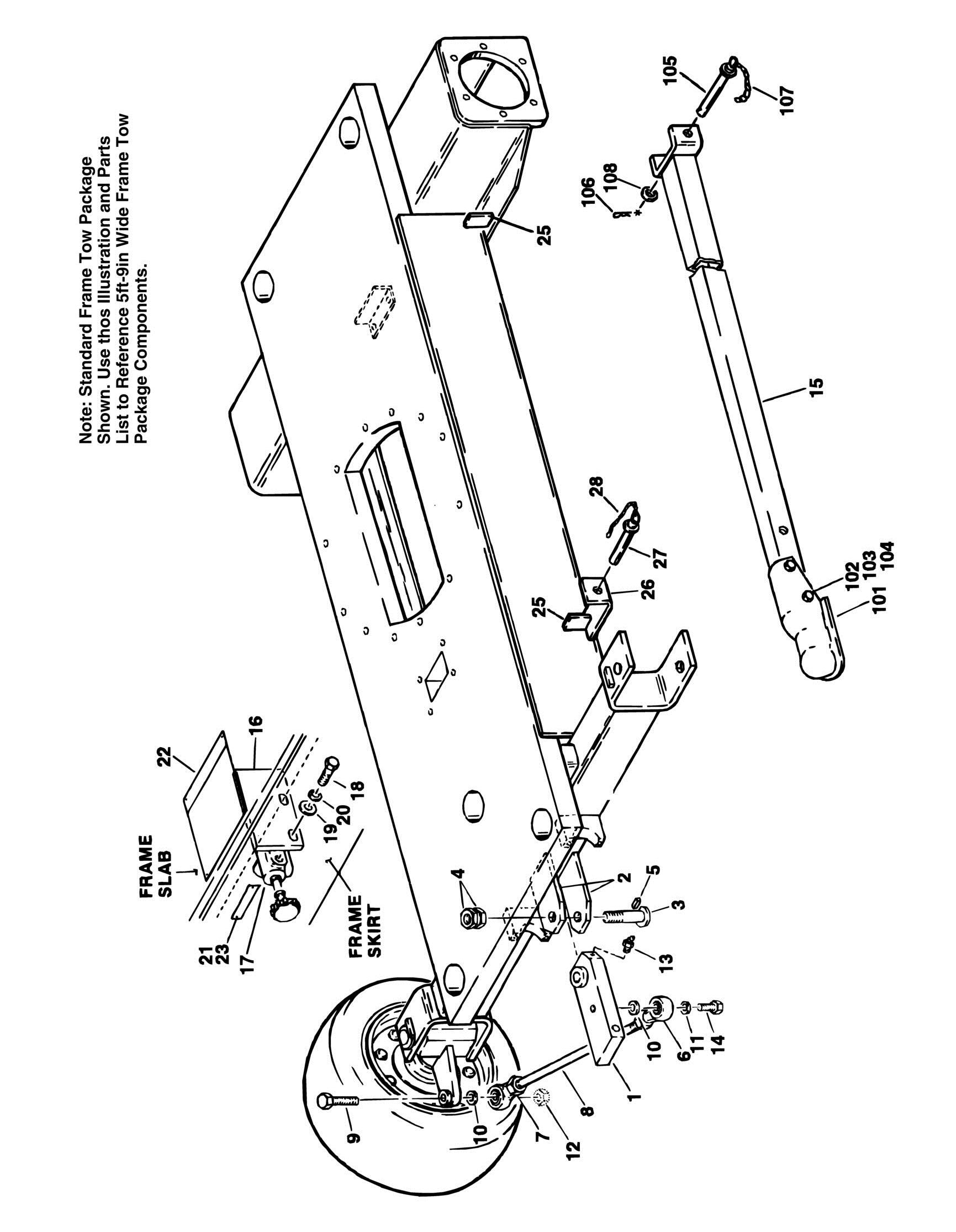

FIGURE 1-14. TOW PACKAGE INSTALLATION
FIGURE 1-14. TOW PACKAGE INSTALLATION
FIGURE 1-14. TOW PACKAGE INSTALLATION
ITEM PART NUMBER QTY DESCRIPTION REV
Ref TOW PACKAGE INSTALLATIONS 0238882 Ref Tow Package (Standard) With Double Acting Steer Cylinder E 0239948 Ref Tow Package (5ft-9in Frame) With Single Acting Steer
Cylinder
C 0253908 Ref Tow Package (2WD With 12x16.5 Tires) A 0254094 Ref Tow Package (4WD Machines) A 1 2620029 1 Hitch, Tow 1 2620038 1 Hitch, Tow (4WD Machines) 2 3040379 2 Lug, Tow Hitch (Welded on Part) (Standard Only) 3 Ref Pin, Threaded Options: 3 3421246 1 Standard 3 3421151 1 5ft-9in Frame/2WD With 12x16.5 Tires 4 3323002 AR Nut, Jam 1 1/4in-12NF 5 2880410 1 Key (Welded on Part) 6 1360122 2 Clevis, Ball Joint 6 1660144 2 Coupling, Tie Rod (4WD Machines) 7 3322202 2 Nut, Jam 3/4in-16NF 8 Ref Rod, Tie Options: 8 3840914 1 Standard 8 3841005 1 5ft-9in Frame/2WD With 12x16.5 Tires 8 3841223 1 4WD Machines 9 Ref Bolt Options: 9 0642234 1 Bolt 3/4in-10NC - Standard 9 0630424 1 Bolt, Special - 5ft-9in Frame 9 0630466 1 Bolt, Special - 2WD With 12x16.5 Tires 9 0642636 1 Bolt 1ft-8NC x 4 1/2in - 4WD Machines 10 4740032 2 Flatwasher, Special 10 4562346 3 Spacer, Tube (4WD Machines) 11 4762200 1 Lockwasher 3/4in 12 3312202 1 Nut, Jam 3/4in-10NF (5ft-9in Frame/2WD With 12x16.5 Tires) 12 3312605 1 Locknut 1in-8NC (4WD Machines) 13 2160003 1 Fitting, Grease 13 2160001 1 Fitting, Grease (4WD Machines) 14 0642216 1 Bolt 3/4in-10NC x 2in (5ft-9in Frame/2WD With 12x16.5 Tires) 15 0360016 1 Bar, Tow 16 0900479 1 Bracket (Welded on Part) 17 4640261 1 Valve, Select 18 0641507 2 Bolt 5/16in-18NC x 7/8in 19 4751500 2 Flatwasher 5/16in 20 4761500 2 Lockwasher 5/16in 21 3250872 1 Nameplate - Tow Select 22 Ref Nameplate - Tow Instructions Options: 22 3250840 1 Nameplate - Tow Instructions (Prior to March 1994) 22 1702305 1 Nameplate - Tow Instructions (March 1994 to Present) 23 3820001 4 Rivet 25 0361651 2 Bar 26 3532649 1 Plate 27 3430292 1 Pin, Quick Release 28 1260017 1 Chain Ref TOW BAR ASSEMBLY I
ITEM PART NUMBER QTY DESCRIPTION
101 1660009 1 Coupling, Hitch 102 0642036 2 Bolt 5/8in-11NC x 4 1/2in 103 3312001 2 Nut 5/8in-11NC 104 4762000 2 Lockwasher 5/8in 105 3420352 1 Pin, Towing 106 3420158 1 Pin, Hair 107 1260135 1 Chain 108 4752600 1 Flatwasher 1in
