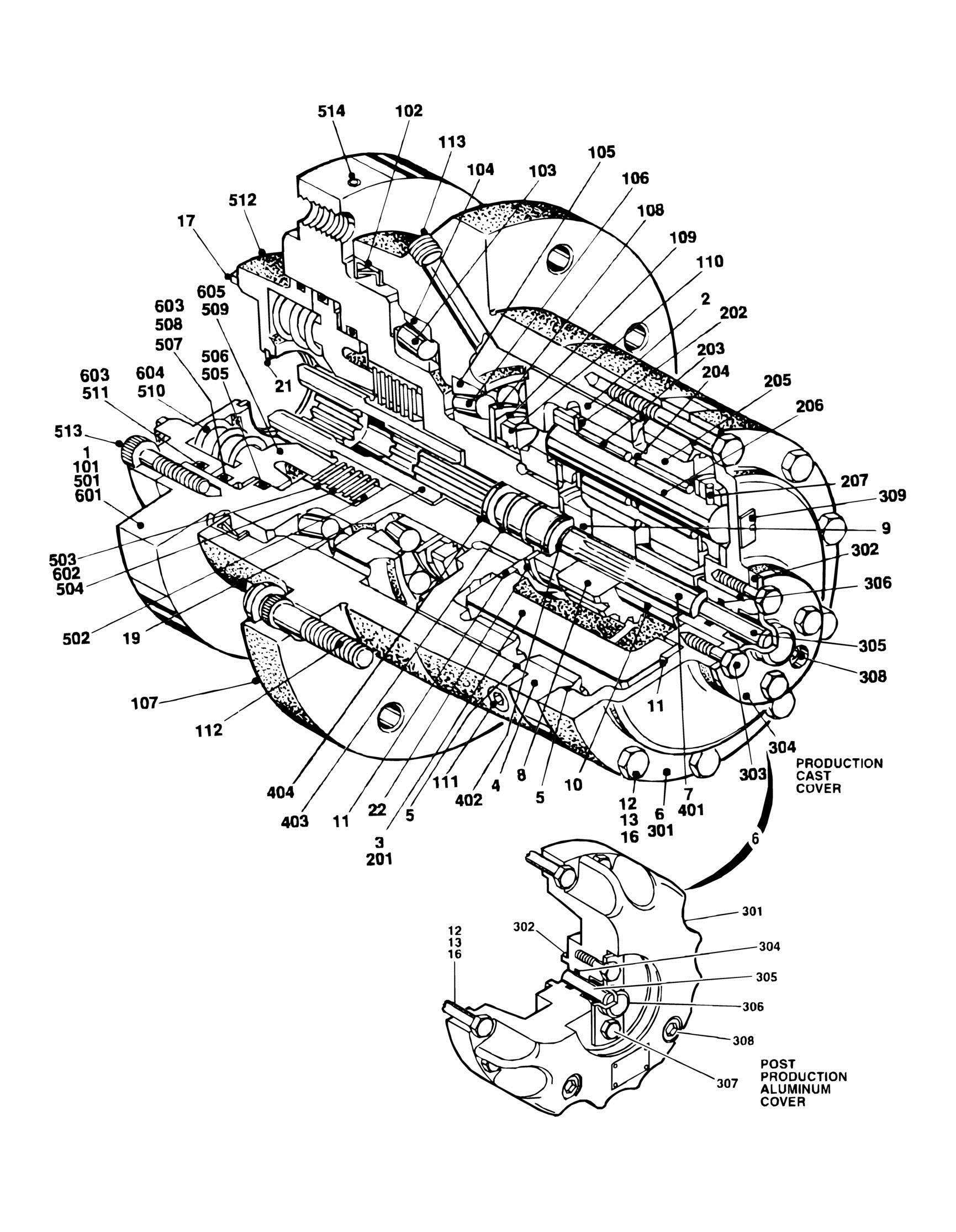

FIGURE 1-6. DRIVE HUB/BRAKE ASSEMBLY (4WD FRONT) (DECEMBER 1991 TO PRESENT
ITEM PART NUMBER QTY
DESCRIPTION
2780191 Ref DRIVE HUB/BRAKE ASSEMBLY (4WD FRONT) 1 Ref Hub/spindle/Brake Assembly (See Items 101-113 for Breakdown) 2 7007691 1 Gear, Internal 3 7000247 1 Carrier Assembly (See Items 201-207 for Breakdown) 4 7000248 1 Gear, Internal 5 Kit 2 O-Ring1 6 7001989 1 Cover Assembly (See Items 301-308 for Breakdown) 7 7007650 1 Input Shaft Assembly (See Items 401-404 for Breakdown) 8 7007652 1 Gear, Input 9 7007653 1 Spacer, Input 10 7007654 1 Spacer, Input 11 7000253 2 Washer, Thrust 11 7017096 1 Spacer (Post Production Aluminum Cover Only) 12 Ref Bolt Options: 12 7000217 12 Production Cast Cover 12 7017067 12 Post Production Aluminum Cover 13 Ref Hardware Options: 13 7000214 4 Bolt Used on Production Cast Cover 13 7017067 4 Dowel Pin Used on Post Production Aluminum Cover 16 7007603 16 Flatwasher 17 7007692 1 Gasket 19 7010470 1 Coupling 21 7010459 1 Ring, Retaining 22 7001922 1 Washer, Thrust Ref HUB/SPINDLE/BRAKE SUB-ASSEMBLY 101 7010469 1 Brake Assembly - 4WD Machines with I.D. Plate Stamped June 1992 or Earlier (See Items 501-514 for Breakdown) 102 Kit 1 Seal, Lip 103 7007683 1 Cup, Bearing 104 7007684 1 Cone, Bearing 105 7007685 1 Cup, Bearing 106 7007686 1 Cone, Bearing 107 7007687 1 Housing 108 7007688 1 Washer, Tongued 109 7007689 1 Lockwasher 110 7007690 1 Locknut 111 7000242 2 Plug, Pipe 112 7000241 9 Stud 113 7007617 2 Plug, Magnetic 7000247 Ref CARRIER ASSEMBLY 201 7001931 1 Carrier 202 7001985 6 Washer, Thrust 203 7001909 96 Roller, Needle 204 7000263 3 Spacer 205 7001911 3 Shaft, Planet 206 7001912 3 Gear, Cluster 207 7001913 3 Pin, Roll Ref COVER ASSEMBLY See Kit Options Ref Production Cast Cover See Kit Options Ref Post Production Aluminum Cover
REV
ITEM PART NUMBER QTY DESCRIPTION
301 Ref Cover Options: 301 See Kit Options 1 Production Cast Cover (Was p/n 7000226) 301 7017091 1 Post Production Aluminum Cover 302 Ref O-Ring Options: 302 Kit 1 Production Cast Cover 302 7017070 1 Post Production Aluminum Cover 303 Ref Cap, Cover 303 Kit 1 Production Cast Cover 303 Not Required 0 Post Production Aluminum Cover 304 Ref O-Ring Options: 304 Kit 1 Production Cast Cover 304 7017095 1 Post Production Aluminum Cover 305 Ref Rod, Disconnect Options: 305 7000212 1 Production Cast Cover 305 7017092 1 Post Production Aluminum Cover 306 Ref Cap, Disconnect Options: 306 7000211 1 Production Cast Cover 306 7017093 1 Post Production Aluminum Cover 307 Ref Bolt Options: 307 7000220 4 Production Cast Cover 307 7000216 2 Post Production Aluminum Cover 308 Ref Plug, Pipe Options: 308 7000243 1 Production Cast Cover 308 7017094 2 Post Production Aluminum Cover Ref Cover Kit Options:
No Longer Available NLA Production Cast Cover (Was p/n 7001989)
7017099 1 Aluminum Replacement for Production Cast Cover (Includes 5, 11 (Spacer), 12, 13 (Dowel Pins), 301, 302 & 304-308) 7017090 1 Post Production Aluminum Cover (Includes 5, 301 & 304-307) 7007650 Ref INPUT SHAFT ASSEMBLY 401 7007651 1 Shaft, Input 402 7000261 1 Ring, Retaining 403 7000262 1 Spring 404 7000263 2 Spacer 7010469 Ref BRAKE ASSEMBLY - 4WD MACHINES WITH I.D. PLATE
STAMPED JUNE 1992 OR EARLIER
501 7014100 1 Spindle 502 7014101 1 Spacer 503 7014102 7 Disc, Stationary 504 7014103 6 Disc, Rotating 505 Kit 1 Ring, Back-up 506 Kit 1 O-Ring 507 Kit 1 Ring, Back-up 508 Kit 1 O-Ring 509 7014108 1 Piston 510 7014109 6 Spring 510 7014110 2 Spring 511 Kit 1 O-Ring 512 7014112 1 Cover 513 Not Available 8 Bolt, Socket Head 3/8in-16NC x 1 1/4in 514 7014113 1 Expander
REV
ITEM PART NUMBER QTY
DESCRIPTION
2900816 1 Brake O-Ring Kit (Includes Items 505-508 & 511) 7010473 Ref BRAKE ASSEMBLY - 4WD MACHINES WITH I.D. PLATE
STAMPED JULY 1992 OR LATER
601 7014126 1 Spindle 602 7010475 1 Brake Lining Kit 603 7010476 1 Brake O-Ring Kit 604 7010477 1 Brake Spring Repair Kit 605 7010478 1 Brake Piston Repair Kit 2900754 1 Seal Kit (Includes Items 5, 17, 102, 306 & 307)
