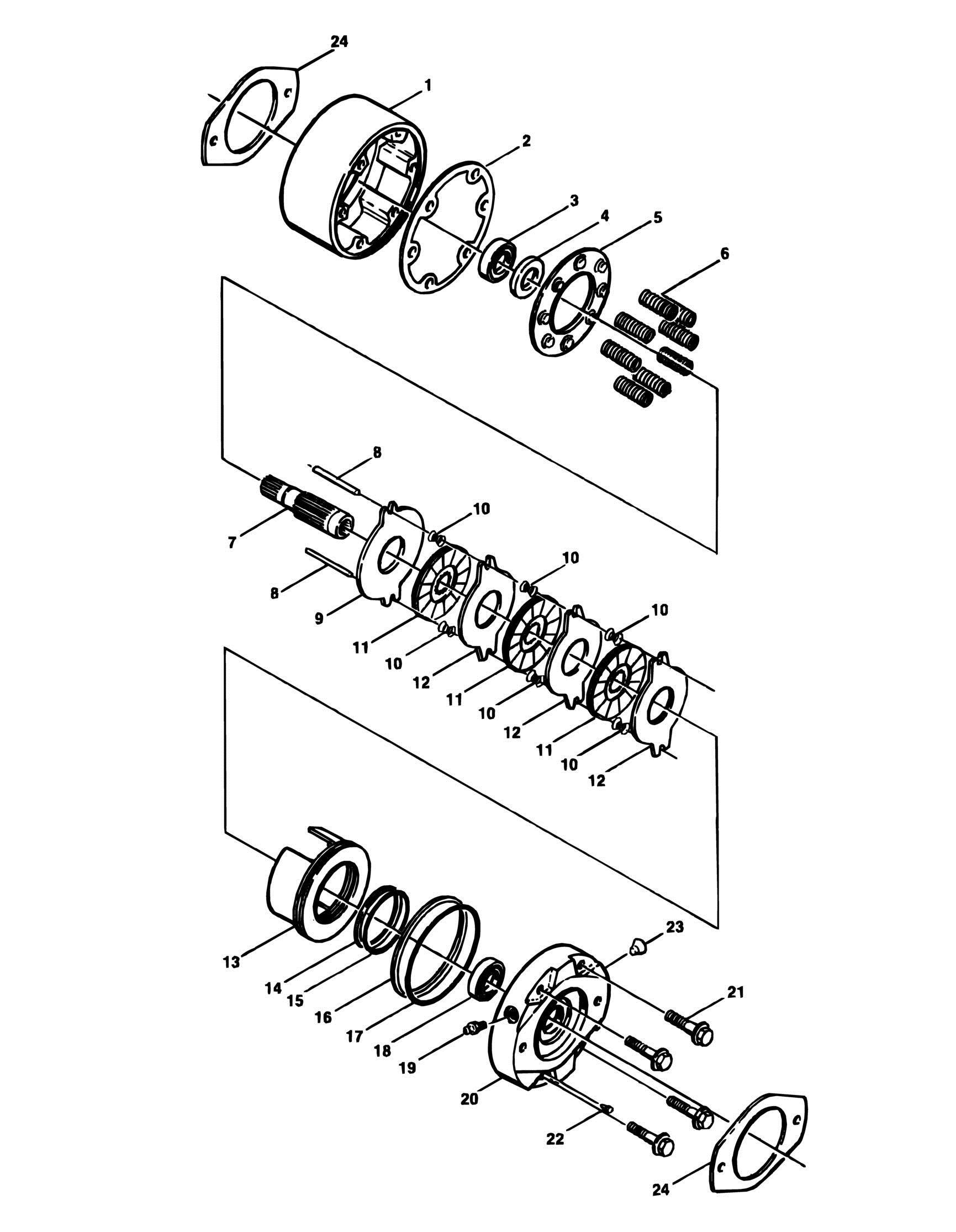

FIGURE 1-7. DRIVE BRAKE ASSEMBLY (PRIOR TO DECEMBER 1991

FIGURE 1-7. DRIVE BRAKE ASSEMBLY (PRIOR TO DECEMBER 1991)

FIGURE 1-7. DRIVE BRAKE ASSEMBLY (PRIOR TO DECEMBER 1991)

ITEM PART NUMBER QTY

DESCRIPTION

0920072 Ref DRIVE BRAKE ASSEMBLY 1 7003047 1 Housing 2 Kit 1 Gasket 3 7003049 1 Bearing, Ball 4 Kit 1 Seal 5 7003051 1 Retainer, Spring 6 7003052 12 Spring, Compression 7 7003070 1 Shaft, Splined 8 7000717 2 Pin, Torque 9 7003454 1 Disc, Primary 10 7003006 6 Spring, Separator 11 7003055 3 Disc, Rotating 12 7003056 3 Disc, Stationary 13 7003057 1 Piston 14 Kit 1 Ring, Back-up 15 Kit 1 O-Ring 16 Kit 1 Ring, Back-up 17 Kit 1 O-Ring 18 7000760 1 Bearing 19 7000796 1 Screw, Bleeder 20 7003071 1 Plate, Power 21 7003007 4 Screw 22 7003059 1 Valve, Pressure 23 7000728 1 Plug, Protective 24 Kit 2 Gasket 2900662 1 Kit, Seal (Includes Items 2, 4, 14, 15, 16, 17 & 24)
