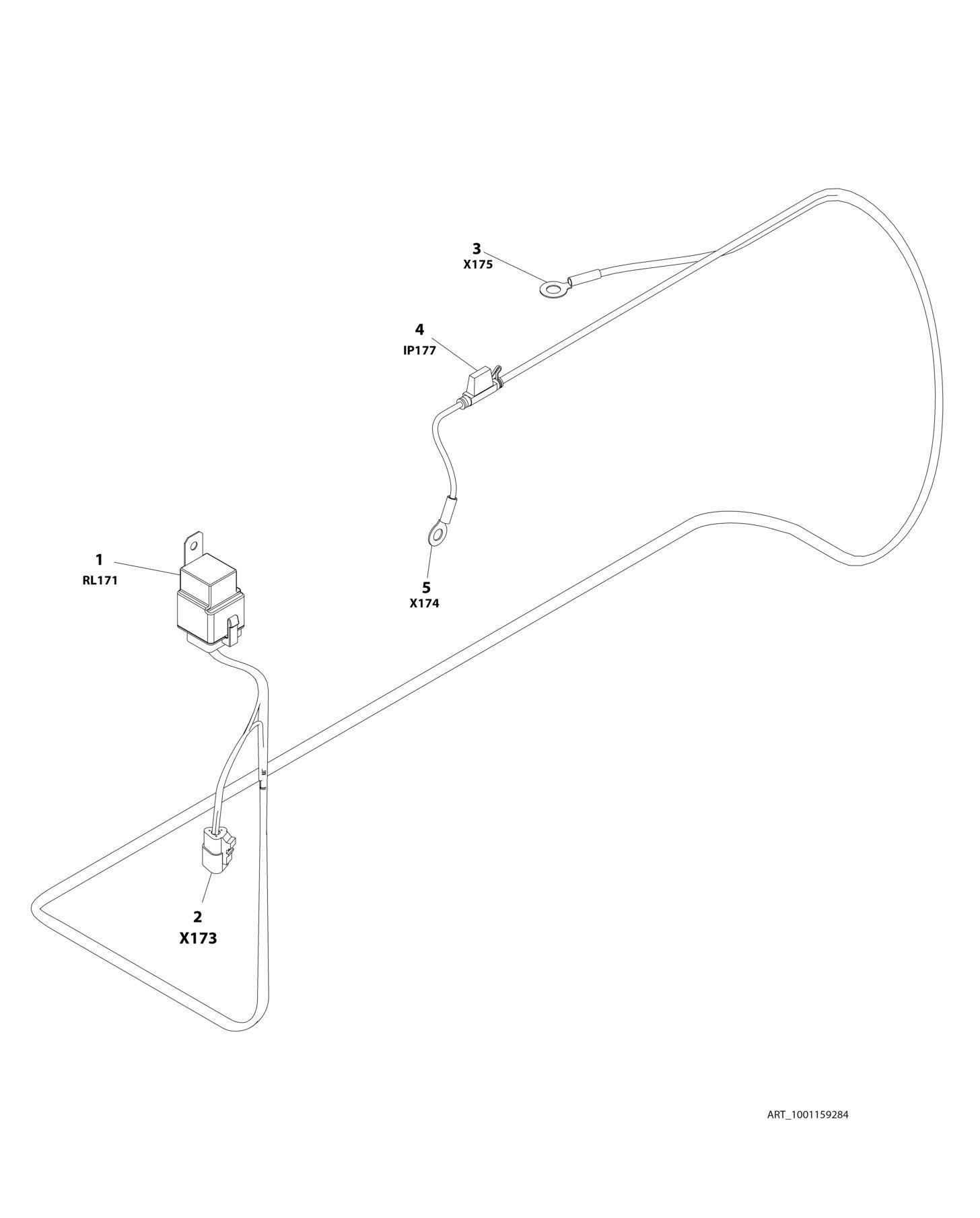

FIGURE 8-23. EMR2 POWER HARNESS

from JLG 24RS 24RSJ Parts Manual (3121288) - PDF DOWNLOAD (En)

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 8-23. EMR2 POWER HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001159284 Ref EMR2 POWER HARNESS 1 1001118282 1 Relay 1 1001116734 1 Terminal 1 1001116732 3 Terminal 1 1001128128 1 Terminal 2 4460539 1 Plug, Male - 3 Position 2 4460465 3 Socket, Female 3 1001117110 1 Ring Terminal 4 2400066 1 Fuseholder 4 2400064 1 Fuse - 5 Amp 5 8220045 1 Ring Terminal

FIGURE 8-23. EMR2 POWER HARNESS

Next Article

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 8-23. EMR2 POWER HARNESS

FIGURE 8-23. EMR2 POWER HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

REV
