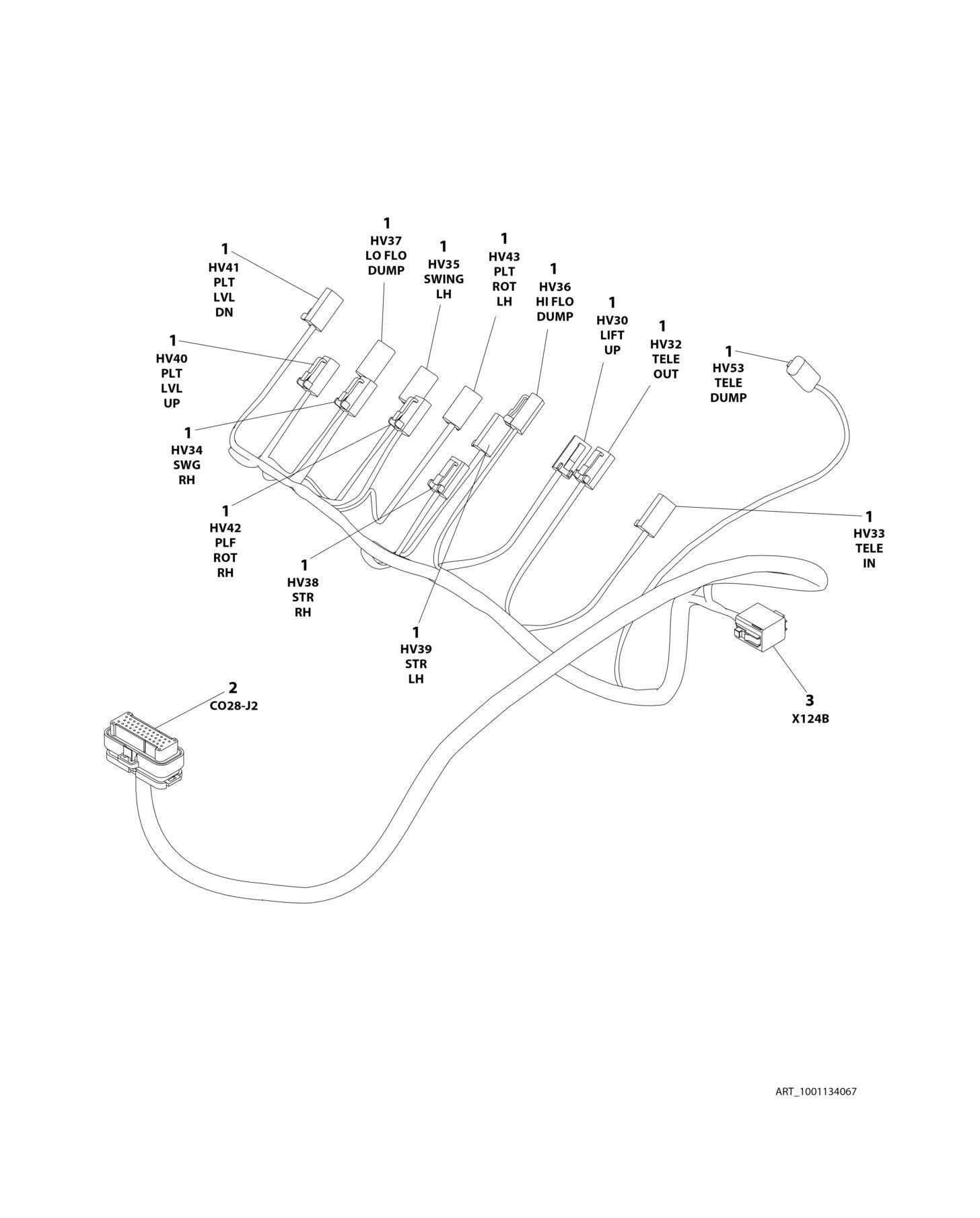

FIGURE 8-36. VALVE HARNESS - 24RS
FIGURE 8-36. VALVE HARNESS - 24RS
FIGURE 8-36. VALVE HARNESS - 24RS
ITEM PART NUMBER QTY
DESCRIPTION
1001134067 Ref VALVE HARNESS - 24RS 1 4460891 14 Plug, Male - 2 Position 1 4460465 28 Socket, Female 2 4460875 1 Connector - 35 Position (Gray) 2 4460871 22 Socket, Female 2 4460905 13 Seal, Plug 3 4460851 1 Plug, Male - 8 Position (Black) 3 4460465 7 Socket, Female 3 4460466 1 Seal, Plug
REV
C
