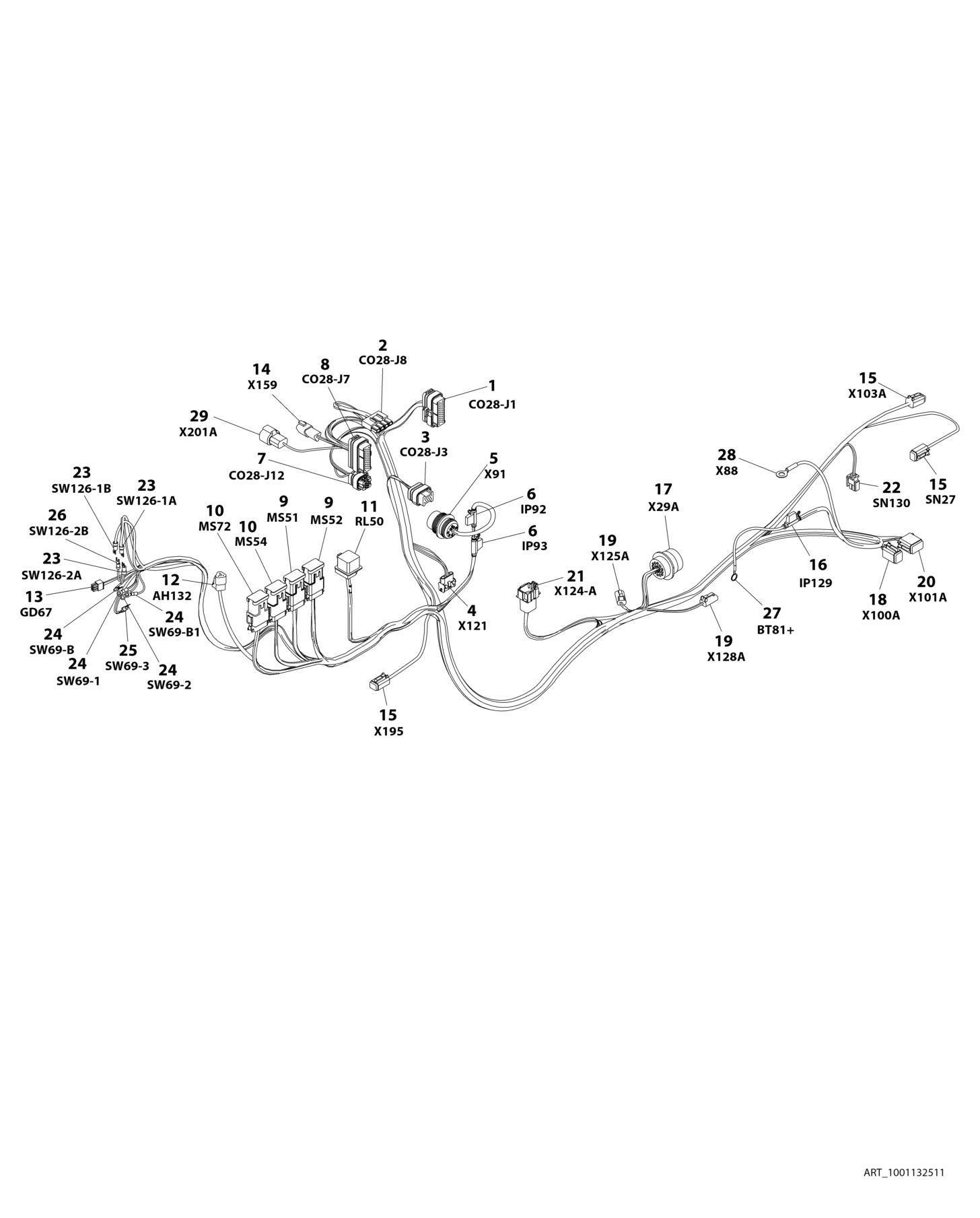

FIGURE 8-35. TURNTABLE HARNESS
FIGURE 8-35. TURNTABLE HARNESS
FIGURE 8-35. TURNTABLE HARNESS
ITEM PART NUMBER QTY
1001132511 Ref TURNTABLE HARNESS
DESCRIPTION
1 4460874 1 Connector - 35 Position (Natural) 1 4460871 15 Socket, Female 1 4460905 20 Plug, Seal 2 4460878 1 Housing, Terminal - 4 Position 2 4460887 4 Terminal 3 4460872 1 Connector, Male - 14 Position (Black) 3 4460871 4 Socket, Female 3 4460905 10 Seal, Plug 4 4460761 1 Plug, Male - 4 Position 4 4460267 4 Pin, Male 5 1001112612 1 Connector - 9 Position (Includes Nut and Lockwasher) 5 4460496 1 Locknut, Terminal 5 4460497 1 Nut, Terminal 5 4460944 3 Socket, Female (Gold) 5 4460465 3 Socket, Female 5 4460466 3 Seal, Plug 5 1001106736 1 Cap, Dust 6 2400066 2 Fuseholder 6 260305 2 Fuse 5Amp 7 1001113961 1 Connector - 8 Position (Black) 7 4460871 5 Socket, Female 7 4460905 3 Seal, Plug 8 4460873 1 Connector - 35 Position (Black) 8 4460871 21 Socket, Female 8 4460905 14 Seal, Plug 9 4460836 2 Plug, Male - 12 Position (Black) 9 4460837 2 Connector, Bussbar - 12 Position (Black) 9 1001121172 2 Bracket, Terminal Mounting 9 4460465 3 Socket, Female 9 4460942 7 Socket, Female 9 4460466 13 Seal, Plug 10 4460933 2 Plug, Male - 12 Position (Gray) 10 1001119020 2 Connector, Bussbar - 12 Position (Gray) 10 1001121172 2 Bracket, Terminal Mounting 10 4460465 9 Socket, Female 10 4460944 8 Socket, Female 10 4460466 7 Seal, Plug 11 1001117057 1 Plug, Male - 5 Position 11 1001116734 2 Terminal 11 1001116733 2 Terminal 11 1001116728 1 Terminal 11 70020199 2 Diode - 6Amp 12 4460539 1 Plug, Male - 3 Position (Triangular) 12 4460465 3 Socket, Female 13 4460868 1 Plug, Male - 6 Position 13 4460877 4 Socket, Female 14 4460536 1 Receptacle, Female - 3 Position (Triangular) 14 4460464 3 Pin, Male 15 4460884 3 Plug, Male - 4 Position
REV
I
ITEM PART NUMBER QTY DESCRIPTION
15 4460465 10 Socket, Female 15 4460466 2 Seal, Plug 16 2400066 1 Fuseholder 16 2400065 1 Fuse, 30Amp 17 4460866 1 Connector - 19 Position 17 4460464 9 Pin, Male 16Ga 17 4460508 2 Pin, Male 12Ga 17 4460466 8 Plug, Sealing 18 4460894 1 Plug, Male - 6 Position 18 4460465 6 Socket, Female 19 4460891 2 Plug, Male - 2 Position 19 4460465 4 Socket, Female 20 4460930 1 Plug, Male - 8 Position (Gray) 20 4460465 8 Socket, Female 21 1001116813 1 Receptacle, Female - 8 Position (Black) 21 4460464 7 Pin, Male 21 4460466 1 Plug, Sealing 22 4460320 1 Receptacle, Female - 2 Position 22 4460226 2 Pin, Male 23 4460806 3 Terminal 24 4460313 4 Terminal 25 4460042 1 Terminal 26 4460183 1 Terminal 27 4460019 1 Terminal 28 1001117110 1 Terminal 29 4460897 1 Receptacle, Female - 2 Position 29 4460464 2 Pin, Male 29 4460891 1 Plug, Male - 2 Position
