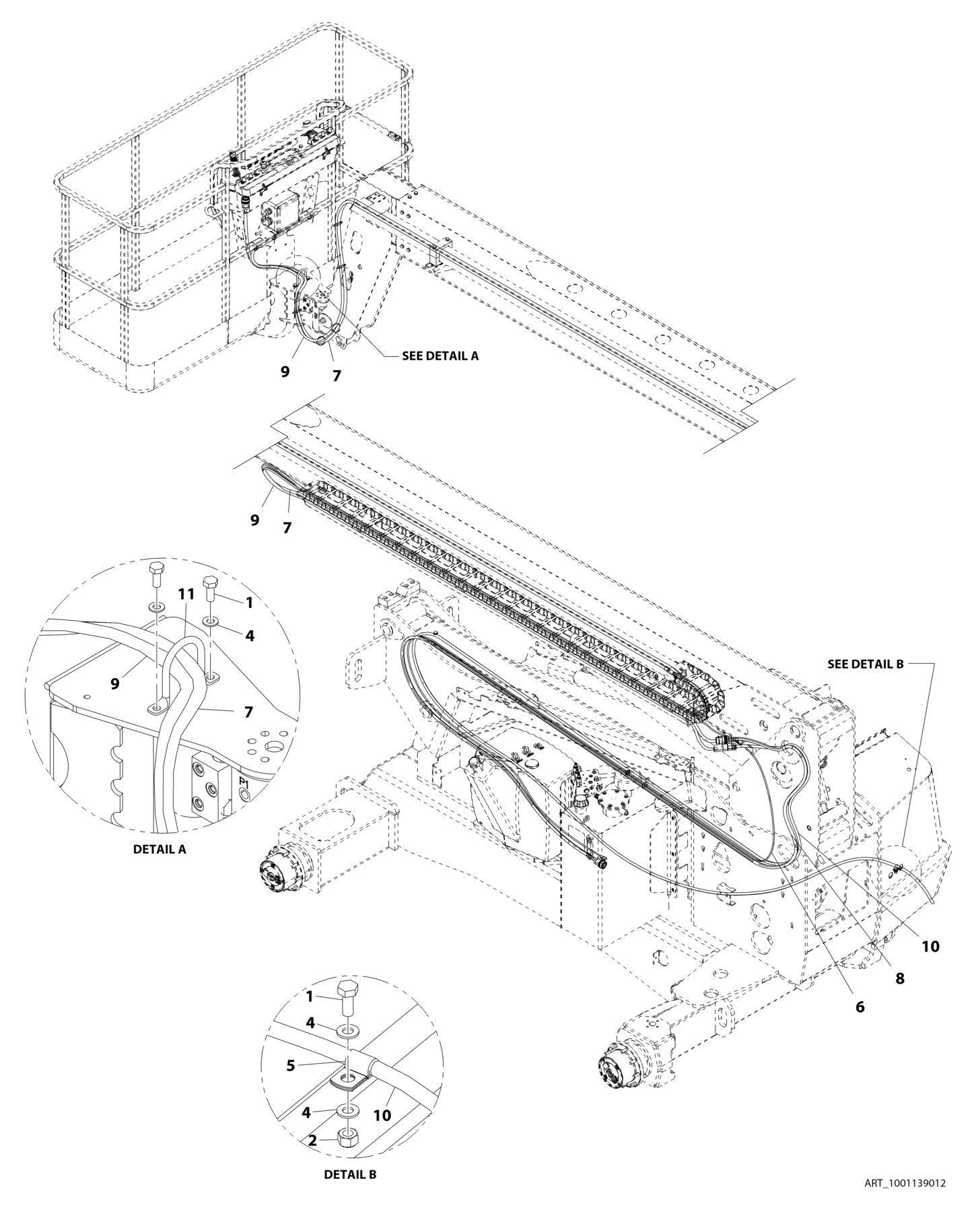

FIGURE 8-15. BOOM CABLES INSTALLATION - 24RS WITHOUT SKYPOWER
ITEM PART NUMBER QTY DESCRIPTION REV
1001139012 Ref BOOM CABLES INSTALLATION - 24RS WITHOUT SKYPOWER C 1 0761012 3 Bolt M10 x 25 2 3291005 1 Nut M10 3 4240018 9 Tie-Strap (Not Shown) 4 4812000 4 Washer M10 5 1001080996 1 Clamp 6 1001138509 1 Lift Down Harness (See LIFT DOWN HARNESS for Breakdown) 7 1001144097 1 Boom Harness - Main Boom (See BOOM HARNESS - MAIN BOOM - 24RS for Breakdown) 8 1001144098 1 Boom Harness - Tower Boom (See BOOM HARNESS - TOWER BOOM for Breakdown) 9 1001144099 1 AC to Platform Cable - Main Boom (See AC CABLE - MAIN BOOM (WITHOUT SKYPOWER) - 24RS for Breakdown) 10 1001144100 1 AC to Platform Cable - Tower Boom (See AC TO PLATFORM CABLE - TOWER BOOM (WITHOUT SKYPOWER) for Breakdown) 11 3841340 1 Loop, Hose
