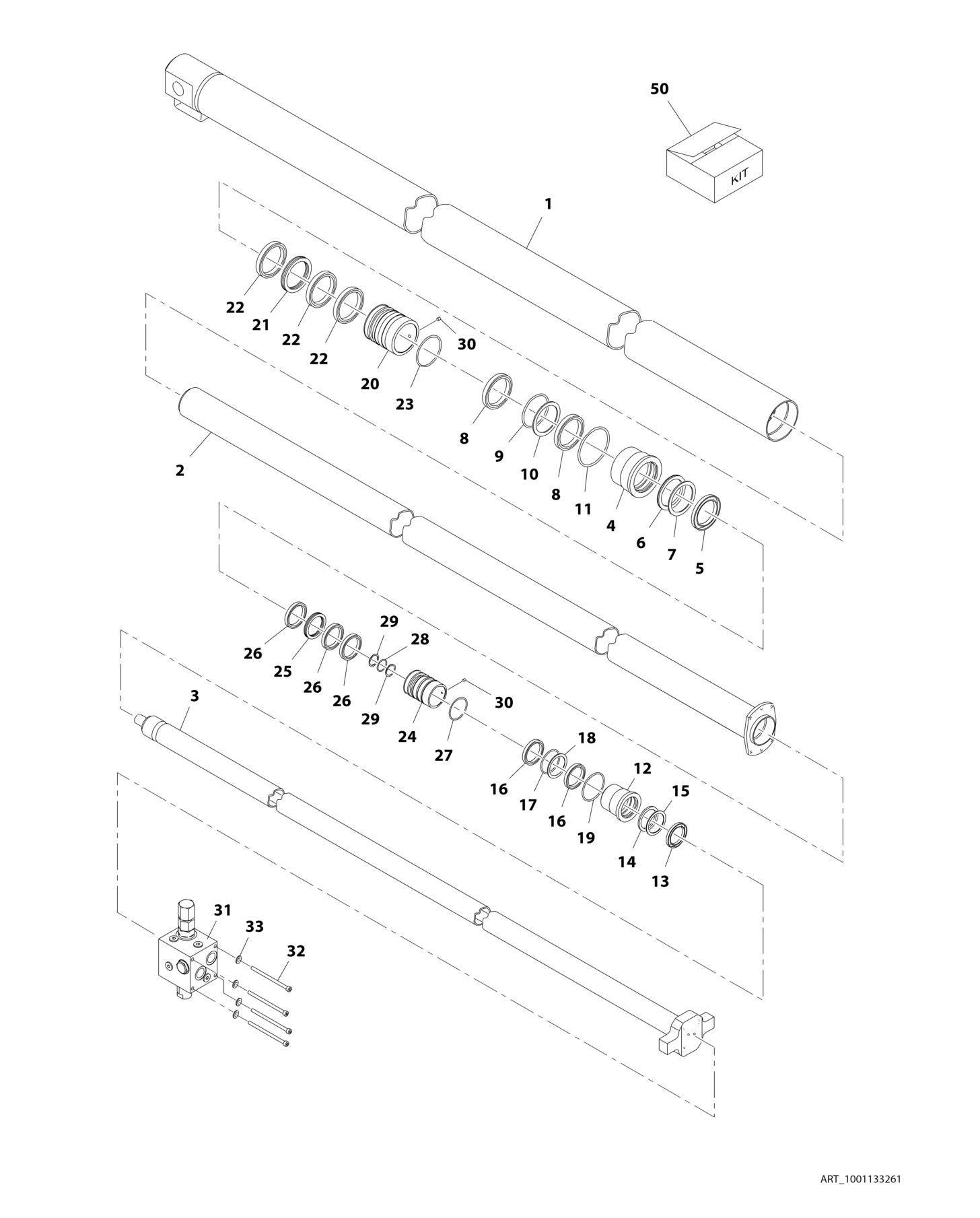

FIGURE 6-10. TELESCOPE CYLINDER ASSEMBLY - 24RS
FIGURE 6-10. TELESCOPE CYLINDER ASSEMBLY - 24RS
FIGURE 6-10. TELESCOPE CYLINDER ASSEMBLY - 24RS
ITEM PART NUMBER QTY
DESCRIPTION
1001133261 Ref TELESCOPE CYLINDER ASSEMBLY - 24RS 1 70003938 1 Barrel 2 70003939 1 Rod #1 3 70003940 1 Rod #2 4 70003941 1 Head #1 5 See Note NSS Wiper (Note: Use Item 50) 6 See Note NSS Seal, Rod (Note: Use Item 50) 7 See Note NSS Ring, Back-up (Note: Use Item 50) 8 See Note NSS Ring, Wear (Note: Use Item 50) 9 See Note NSS O-Ring (Note: Use Item 50) 10 See Note NSS Ring, Back-up (Note: Use Item 50) 11 See Note NSS O-Ring (Note: Use Item 50) 12 70003942 1 Head #2 13 See Note NSS Wiper (Note: Use Item 50) 14 See Note NSS Seal, Rod (Note: Use Item 50) 15 See Note NSS Ring, Back-up (Note: Use Item 50) 16 See Note NSS Ring, Wear (Note: Use Item 50) 17 See Note NSS O-Ring (Note: Use Item 50) 18 See Note NSS Ring, Back-up (Note: Use Item 50) 19 See Note NSS O-Ring (Note: Use Item 50) 20 70003943 1 Piston #1 21 See Note NSS Seal, Piston (Note: Use Item 50) 22 See Note NSS Ring, Wear (Note: Use Item 50) 23 See Note NSS O-Ring (Note: Use Item 50) 24 70003944 1 Piston #2 25 See Note NSS Seal, Piston (Note: Use Item 50) 26 See Note NSS Ring, Wear (Note: Use Item 50) 27 See Note NSS O-Ring (Note: Use Item 50) 28 See Note NSS O-Ring (Note: Use Item 50) 29 See Note NSS Ring, Back-up (Note: Use Item 50) 30 70003945 1 Piston #2 31 1001133244 1 Valve Block Assembly (See VALVE BLOCK ASSEMBLY for Breakdown) 32 5271723 4 Bolt M6 x 100 33 4831700 4 Lockwasher M6 50 70003947 1 Seal Kit (Includes Items 5-11, 13-19, 21-23 & 25-29)
REV
D
