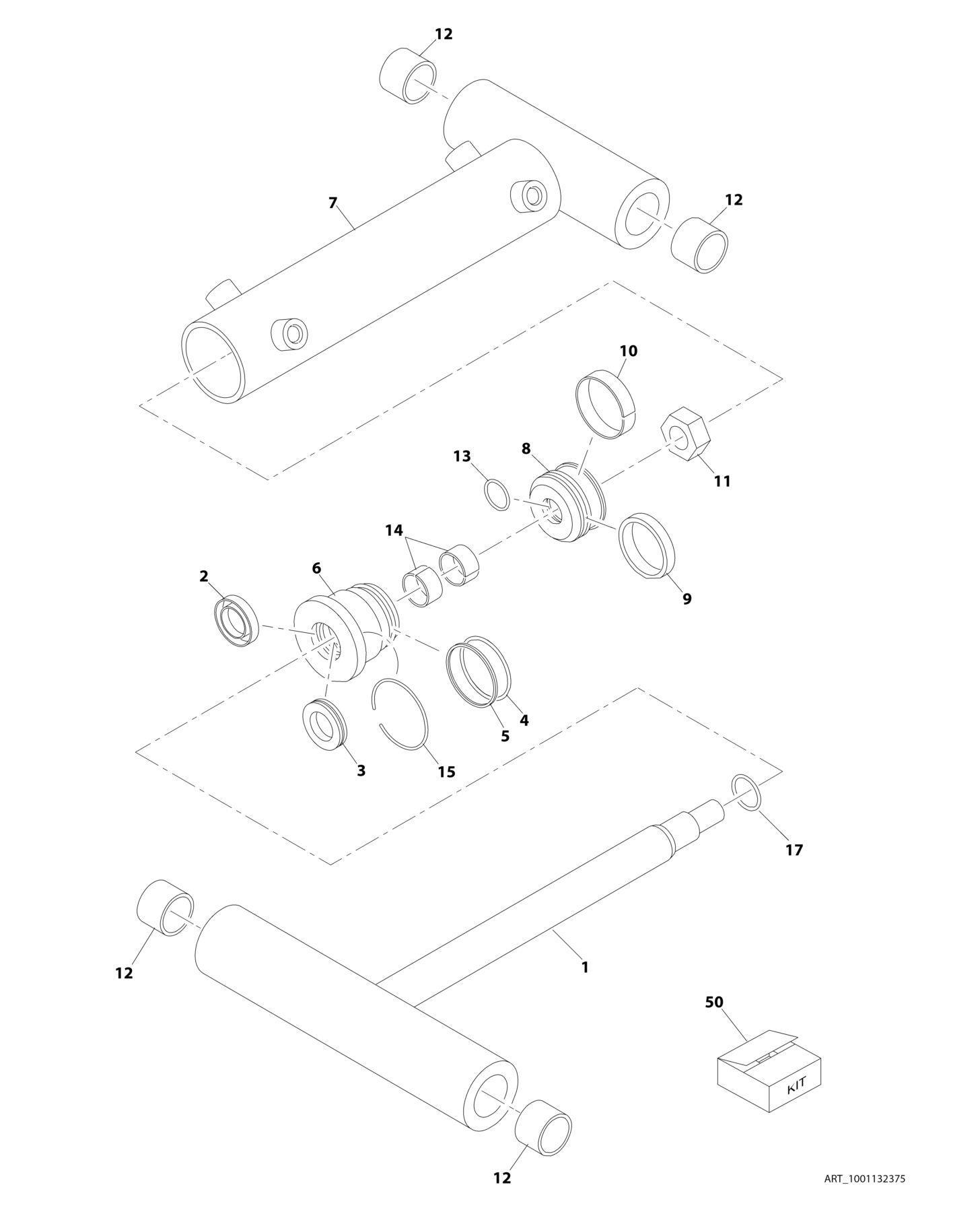

FIGURE 6-7. MASTER CYLINDER ASSEMBLY - 24RS

FIGURE 6-7. MASTER CYLINDER ASSEMBLY - 24RS

FIGURE 6-7. MASTER CYLINDER ASSEMBLY - 24RS

ITEM PART NUMBER QTY

DESCRIPTION

1001132375 Ref MASTER CYLINDER ASSEMBLY - 24RS 1 70004209 1 Rod 2 See Note NSS Wiper (Note: Use Item 50) 3 See Note NSS Seal, Rod (Note: Use Item 50) 4 See Note NSS O-Ring (Note: Use Item 50) 5 See Note NSS Ring, Back-up (Note: Use Item 50) 6 70004210 1 Head 7 70004211 1 Barrel 8 70004212 1 Piston 9 See Note NSS Seal, Piston (Note: Use Item 50) 10 See Note NSS Ring, Wear (Note: Use Item 50) 11 70004213 1 Nut 12 0961951 4 Bearing 13 See Note NSS O-Ring (Note: Use Item 50) 14 See Note NSS Ring, Wear (Note: Use Item 50) 15 70004214 1 Lock Wire 17 70004215 1 O-Ring 50 70004216 1 Seal Kit (Includes Items 2-5, 9, 10, 13 & 14)

REV

C
