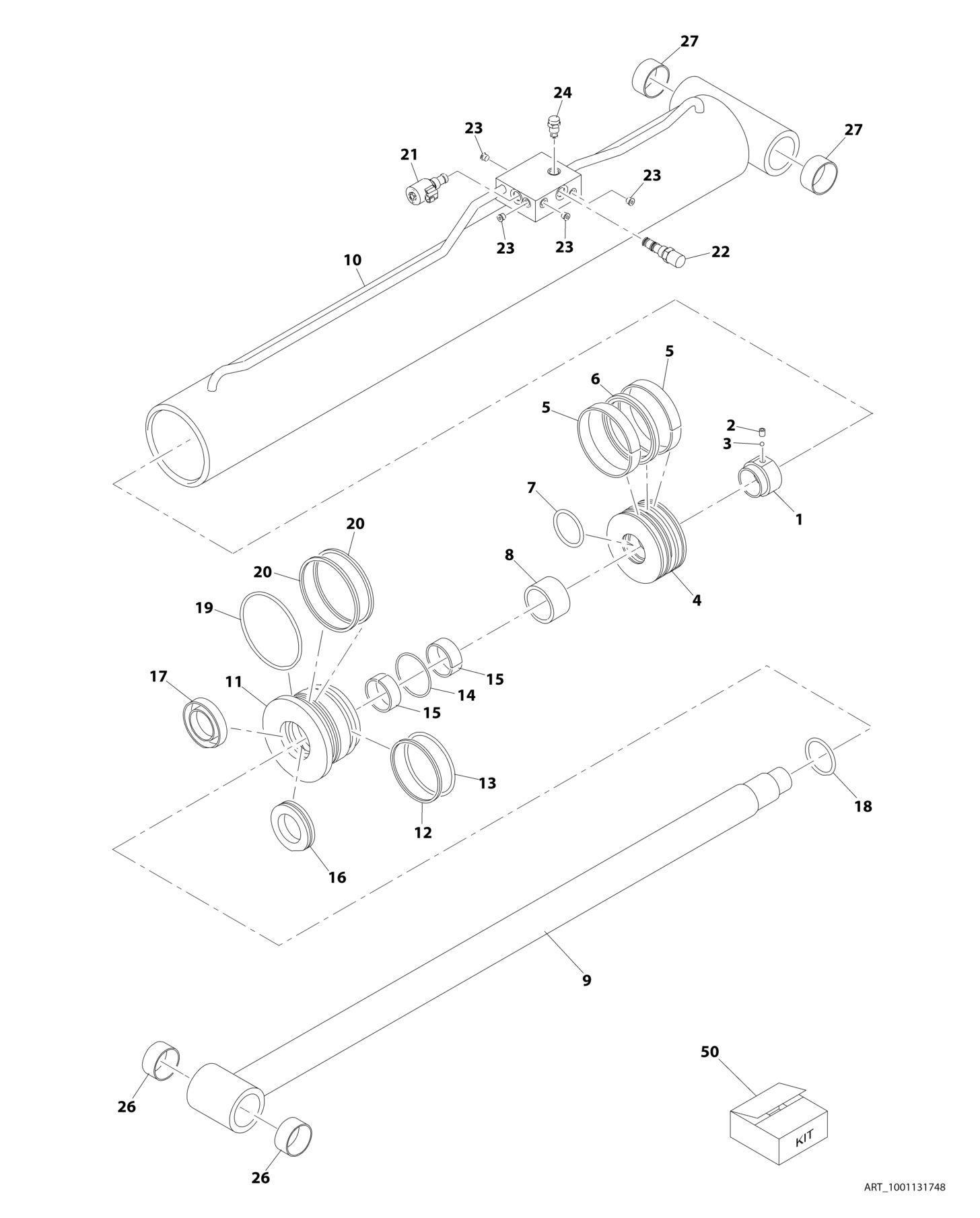

FIGURE 6-6. LIFT CYLINDER ASSEMBLY - MAIN BOOM

FIGURE 6-6. LIFT CYLINDER ASSEMBLY - MAIN BOOM

FIGURE 6-6. LIFT CYLINDER ASSEMBLY - MAIN BOOM

ITEM PART NUMBER QTY

DESCRIPTION

1001131748 Ref LIFT CYLINDER ASSEMBLY - MAIN BOOM 1 70004122 1 Nut 2 70004121 1 Setscrew 3 70004120 1 Ball 4 70004119 1 Piston 5 See Note NSS Ring, Wear (Note: Use Item 50) 6 See Note NSS Seal, Piston (Note: Use Item 50) 7 See Note NSS O-Ring (Note: Use Item 50) 8 70004115 1 Spacer 9 70004114 1 Rod 10 70004113 1 Barrel 11 70004112 1 Head 12 See Note NSS Ring, Back-up (Note: Use Item 50) 13 See Note NSS O-Ring (Note: Use Item 50) 14 See Note NSS Ring, Cushion (Note: Use Item 50) 15 See Note NSS Ring, Wear (Note: Use Item 50) 16 See Note NSS Seal, Rod (Note: Use Item 50) 17 See Note NSS Wiper (Note: Use Item 50) 18 See Note NSS O-Ring (Note: Use Item 50) 19 See Note NSS O-Ring (Note: Use Item 50) 20 See Note NSS Ring, Retaining (Note: Use Item 50) 21 70004124 1 Cartridge, Valve 21 7023919 1 Seal Kit - 70004124 Valve 21 70003788 1 Coil 21 7022390 1 Nut, Coil 22 70004123 1 Cartridge, Valve 22 7012925 1 Seal Kit - 70004123 Valve 23 See Note 4 Plug (Note: Not Available for Purchase) 24 4641390 1 Cartridge, Valve 24 7017496 1 Seal Kit - 4641390 Valve 26 70004290 2 Bushing 27 70004291 2 Bushing 50 70004208 1 Seal Kit (Includes Items 5-7 & 12-20)

REV

D
