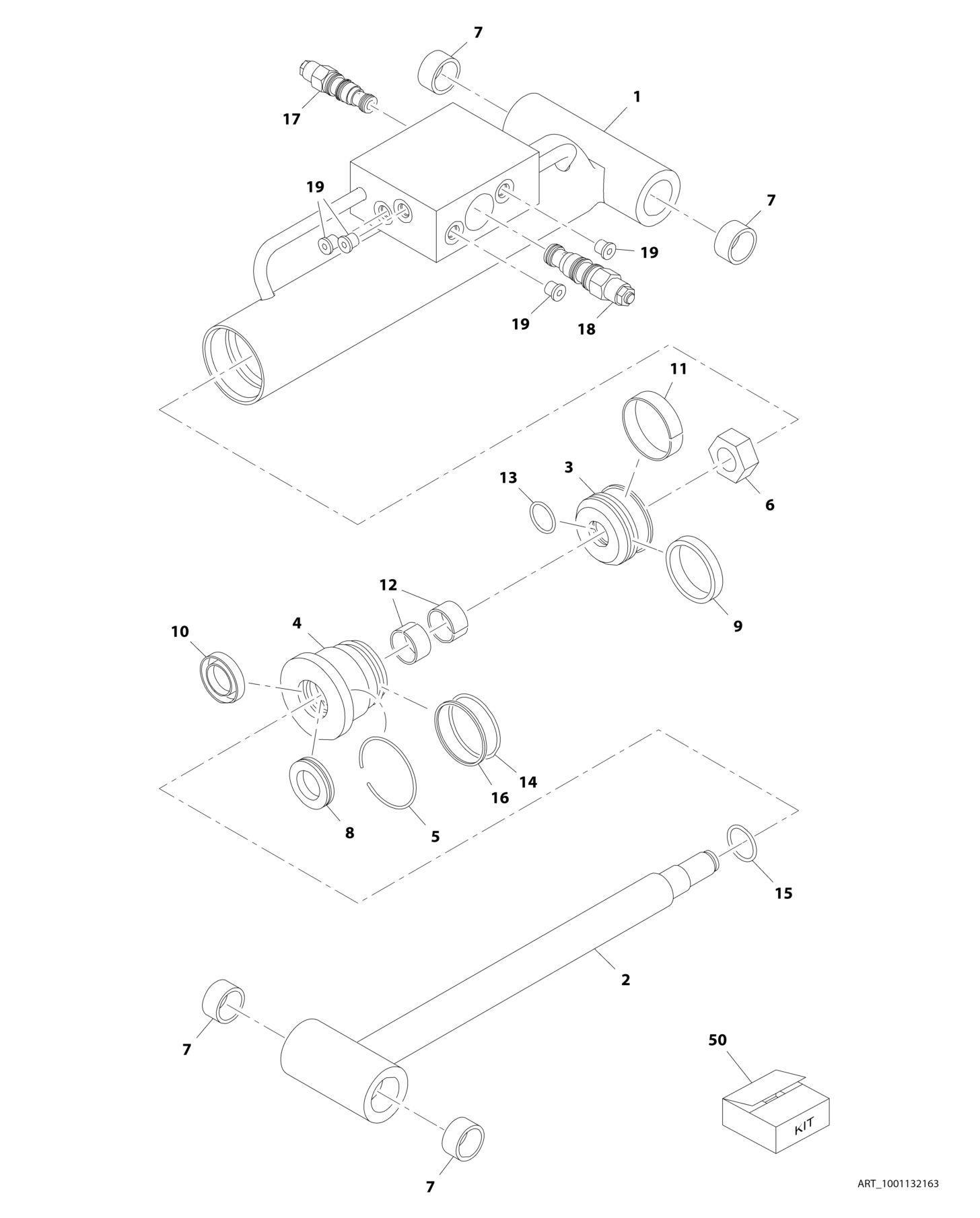

FIGURE 6-1. LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY - 24RS
ITEM PART NUMBER QTY DESCRIPTION REV
1001132163 Ref LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY - 24RS D 1 70004217 1 Barrel 2 70004218 1 Rod 3 70004212 1 Piston 4 70004210 1 Head 5 70004214 1 Lock Wire 6 70004213 1 Nut 7 70004219 4 Bearing 8 See Note NSS Seal, Rod (Note: Use Item 50) 9 See Note NSS Seal, Piston (Note: Use Item 50) 10 See Note NSS Wiper (Note: Use Item 50) 11 See Note NSS Ring, Wear (Note: Use Item 50) 12 See Note NSS Ring, Wear (Note: Use Item 50) 13 See Note NSS O-Ring (Note: Use Item 50) 14 See Note NSS O-Ring (Note: Use Item 50) 15 See Note NSS O-Ring (Note: Use Item 50) 16 See Note NSS Ring, Back-up (Note: Use Item 50) 17 70002413 NLA Cartridge, Valve (Use p/n 70005209) (SN B300000100 through
B300001209)
17 70005209 1 Cartridge, Valve (SN B300001210 to Present) 17 2900770 1 Seal Kit - Valve 18 70002388 1 Cartridge, Valve 18 2900770 1 Seal Kit - Valve 19 See Note 4 Plug (Note: Not Available - Purchase Locally) 50 70004216 1 Seal Kit (Includes Items 8-16)
