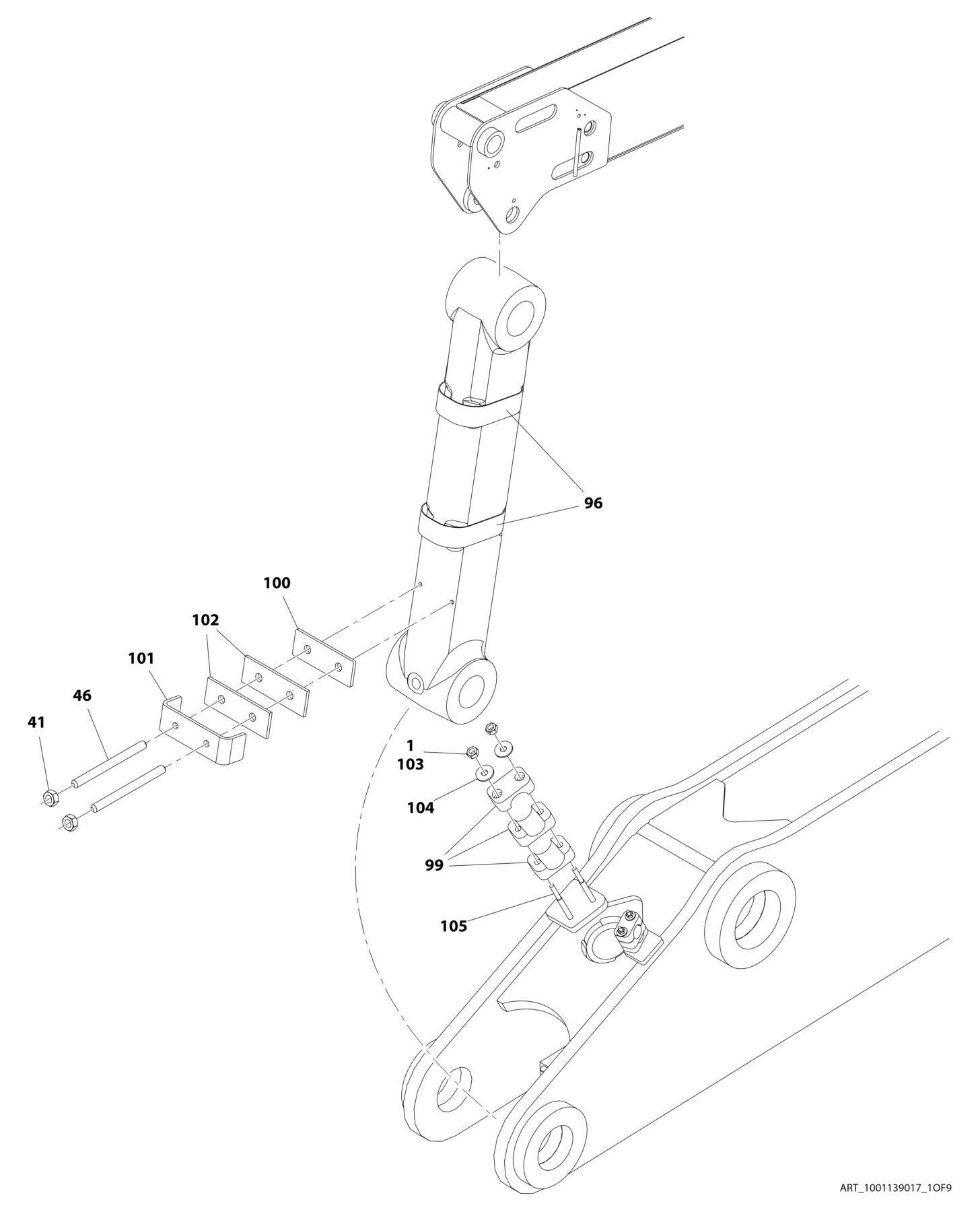

FIGURE 4-14. CLAMPS INSTALLATION (BOOM) - 24RS

from JLG 24RS 24RSJ Parts Manual (3121288) - PDF DOWNLOAD (En)

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 4-14. CLAMPS INSTALLATION (BOOM) - 24RS

ITEM PART NUMBER QTY

DESCRIPTION

1001139017 Ref CLAMPS INSTALLATION (BOOM) - 24RS 1 0100011 AR Compound, Locking 41 3291001 2 Nut M10 46 5282020 2 Capscrew M10 x 80 96 1001143645 2 Strap, Cinch 99 1001091581 3 Set Clamp 100 1001145630 1 Bar 101 1001145631 1 Plate 102 1001145635 2 Pad 103 3290601 2 Nut M10 104 4811702 2 Washer M6 105 1001148456 2 Stud

FIGURE 4-14. CLAMPS INSTALLATION (BOOM) - 24RS

Next Article

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 4-14. CLAMPS INSTALLATION (BOOM) - 24RS

FIGURE 4-14. CLAMPS INSTALLATION (BOOM) - 24RS

ITEM PART NUMBER QTY

DESCRIPTION
