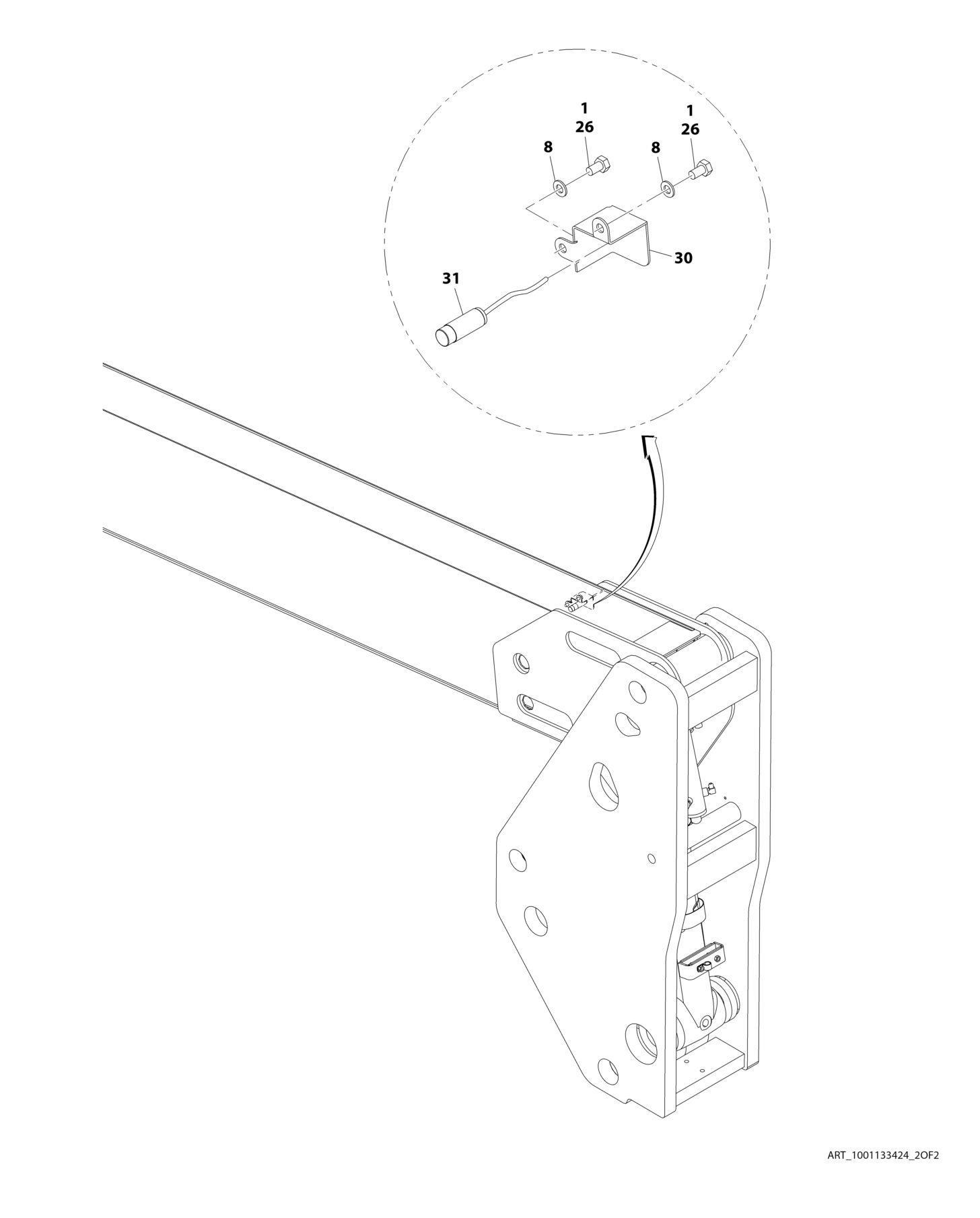

FIGURE 4-7. PROXIMITY SWITCH INSTALLATION - 24RS

from JLG 24RS 24RSJ Parts Manual (3121288) - PDF DOWNLOAD (En)

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 4-7. PROXIMITY SWITCH INSTALLATION - 24RS

ITEM PART NUMBER QTY

DESCRIPTION

1001133424 Ref PROXIMITY SWITCH INSTALLATION - 24RS 1 0100011 AR Compound, Locking 8 4811900 2 Washer M8 26 0760807 2 Bolt M8 x 14 30 1001149922 1 Cover 29 1001149542 1 Proximity Sensor Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 31 1001150772 1 Sensor, Proximity

FIGURE 4-7. PROXIMITY SWITCH INSTALLATION - 24RS

Next Article

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 4-7. PROXIMITY SWITCH INSTALLATION - 24RS

FIGURE 4-7. PROXIMITY SWITCH INSTALLATION - 24RS

ITEM PART NUMBER QTY

DESCRIPTION

REV
