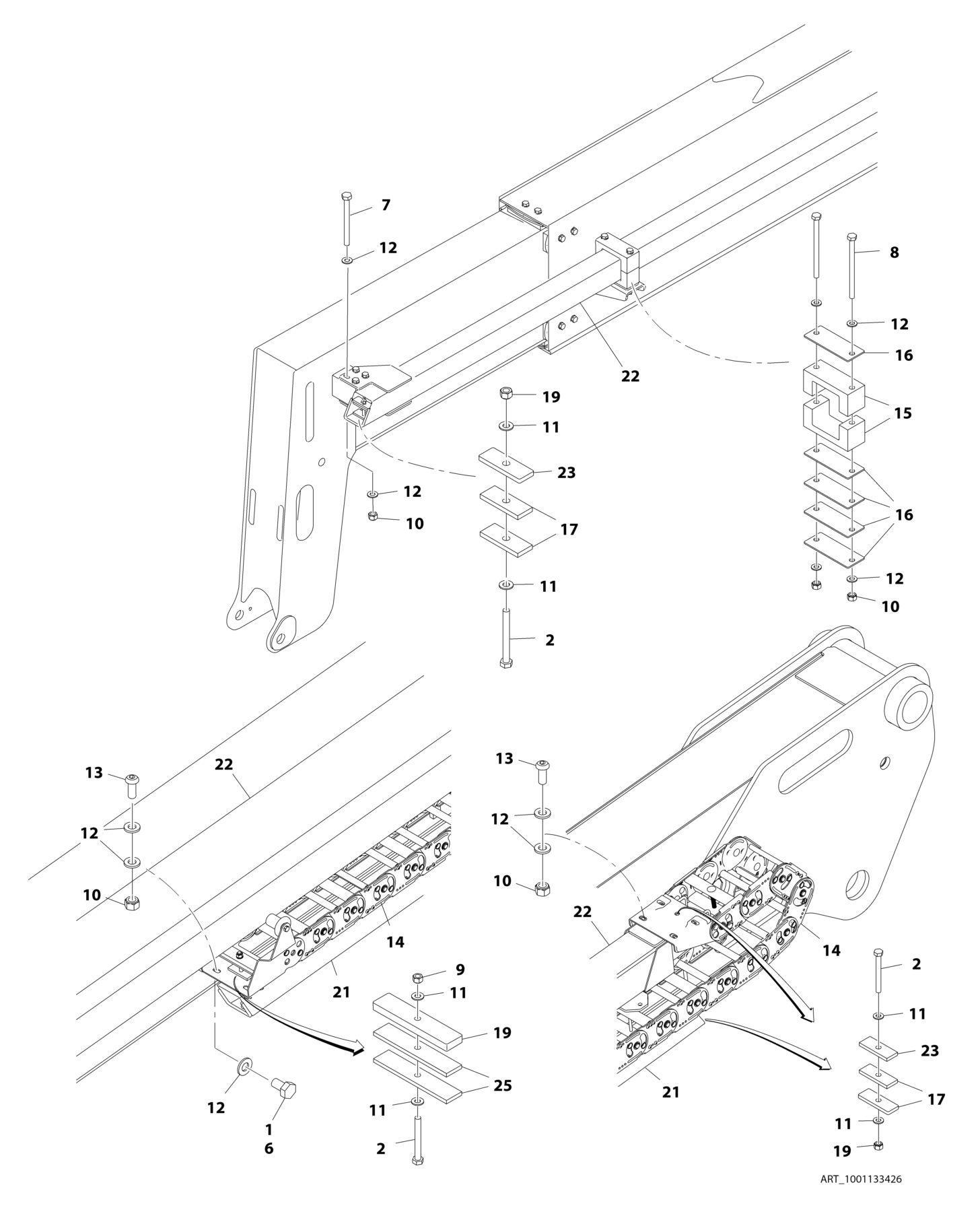

FIGURE 4-6. POWER TRACK ASSEMBLY

FIGURE 4-6. POWER TRACK ASSEMBLY

FIGURE 4-6. POWER TRACK ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001133426 Ref POWER TRACK ASSEMBLY 1 0100011 AR Compound, Locking 2 0700823 4 Bolt M8 x 75 6 0761009 10 Bolt M10 x 18 7 0761028 4 Bolt M10 x 110 8 0761032 2 Bolt M10 x 150 9 3290805 4 Nut M8 10 3291005 14 Nut M10 11 4811900 8 Washer M8 12 4812000 38 Washer M10 13 8310668 4 Screw, Button Head M10 x 25 Grade 10.9 14 1001134407 1 Carrier, Power Track 14 70004071 1 Repair Kit (Includes One Repair Section) 14 70004072 1 Bracket Kit (Includes Mounting Feet for Both Ends and Attaching Hardware) 15 1001136398 2 Pad, Push Tube 16 1001136400 5 Mount 17 1001136402 6 Pad 19 1001136461 1 Plate 21 1001138946 1 Support 22 1001138986 1 Tube, Push 23 1001139078 3 Plate 25 1001151192 2 Pad

REV

E
