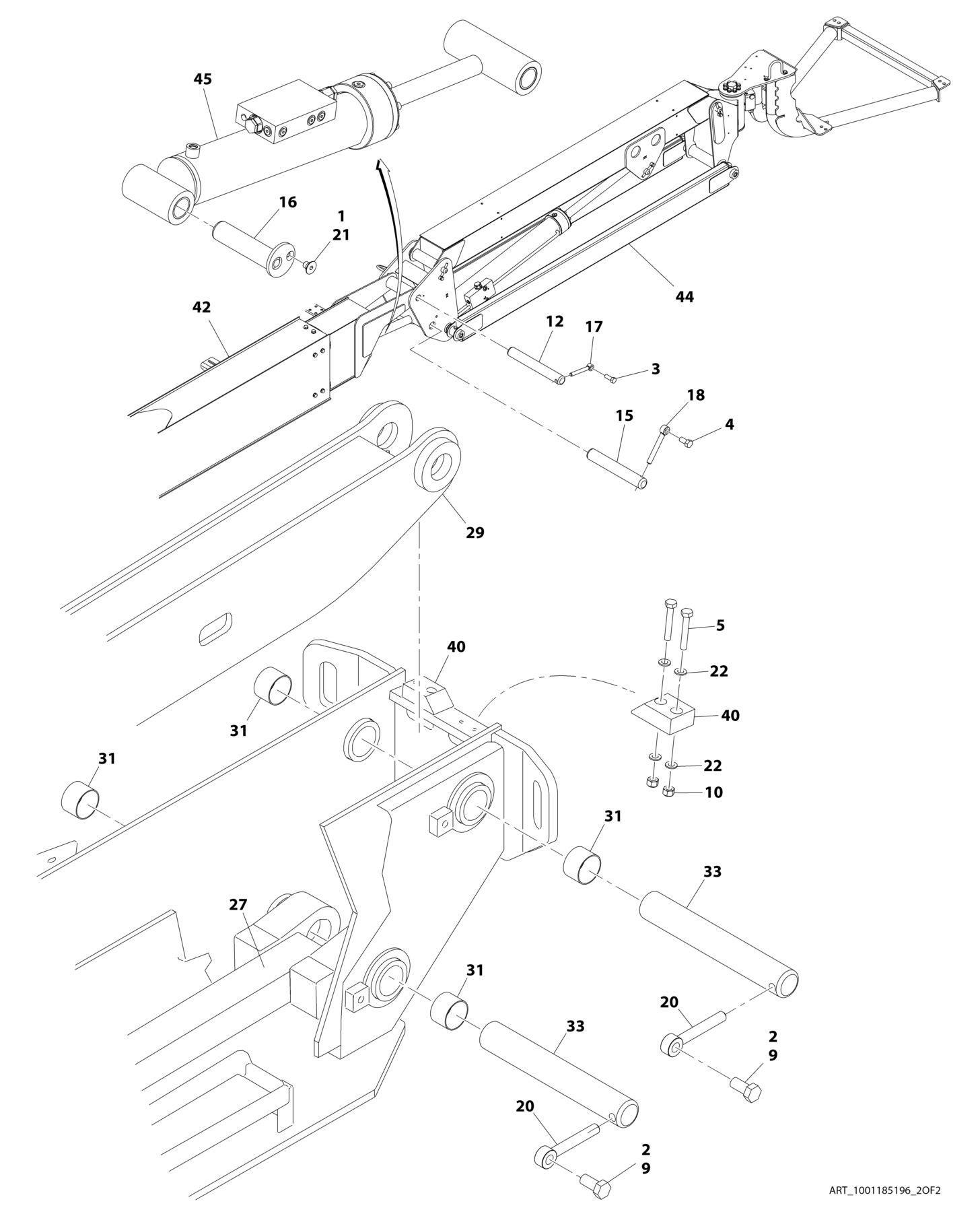

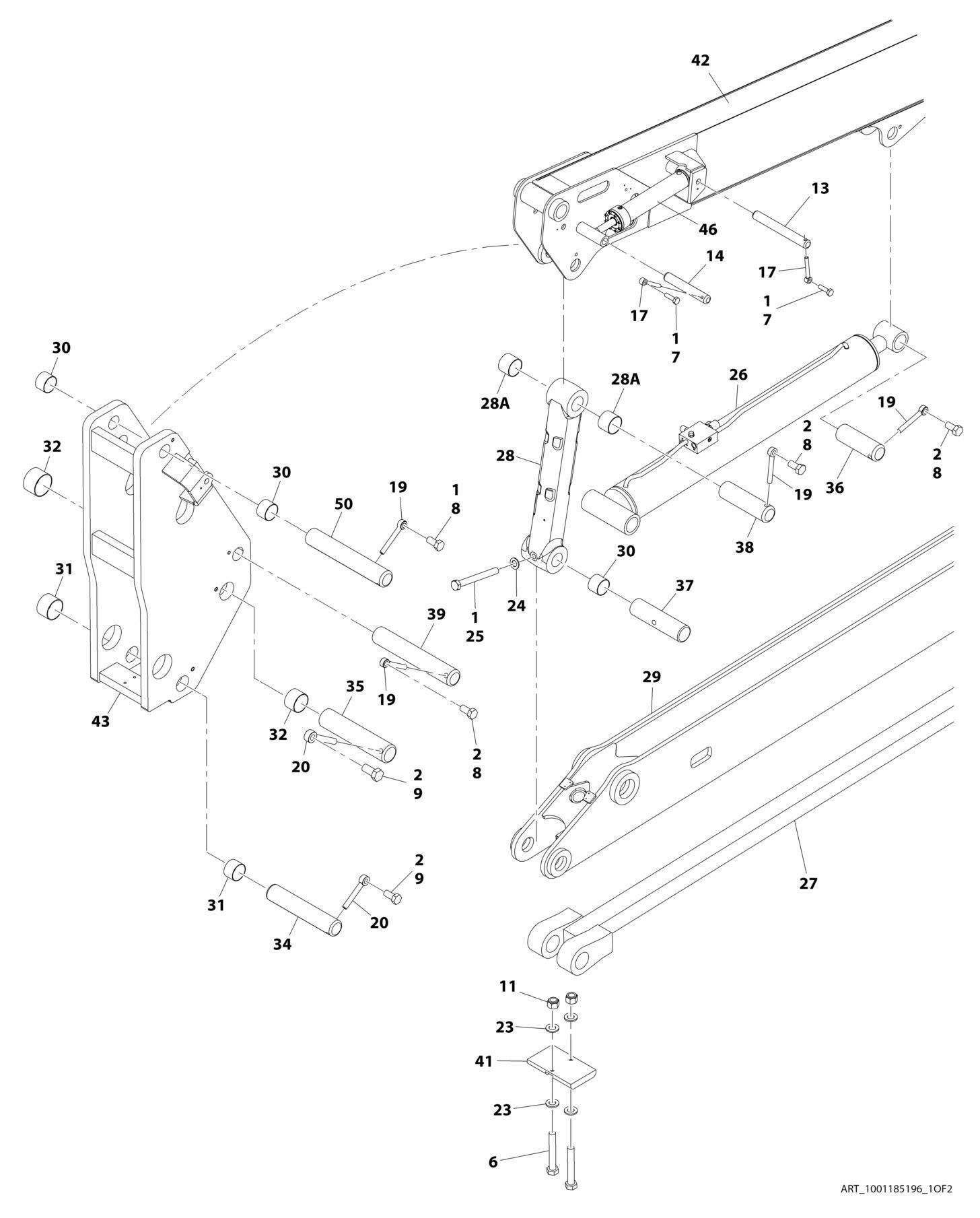

FIGURE 4-2. BOOM AND CYLINDERS INSTALLATION - 24RSJ
ITEM PART NUMBER QTY
DESCRIPTION
1001185196 Ref BOOM AND CYLINDERS INSTALLATION - 24RSJ 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0641608 1 Bolt 3/8 x 1 4 0641808 1 Bolt 1/2 x 1 5 0701021 4 Bolt M10 x 65 6 0701224 2 Bolt M12 x 80 7 0761012 2 Bolt M10 x 25 8 0762016 4 Bolt M20 x 40 9 0762418 4 Bolt M24 x 50 10 3291005 4 Nut M10 11 3291205 2 Nut M12 12 3422561 1 Pin 13 3422579 1 Pin 14 3422792 1 Pin 15 3422793 1 Pin 16 3422932 1 Pin 17 3841143 3 Keeper, Pin 18 3841203 1 Keeper, Pin 19 3841287 4 Keeper, Pin 20 3841356 4 Keeper, Pin 21 3900192 1 Screw 3/8 x 1/2 22 4812000 8 Washer M10 23 4812100 4 Washer M12 24 4812500 1 Washer M20 25 8310666 1 Bolt M20 x 180 26 1001131748 1 Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 27 1001133196 1 Link, Tower 28 1001133247 1 Link, Boom Timing 28A 0962297 2 Bushing 29 1001133912 1 Boom, Tower 30 1001133926 4 Bearing 31 1001133927 6 Bearing 32 1001133928 2 Bearing 33 1001134314 2 Pin 34 1001134315 1 Pin 35 1001134316 1 Pin 36 1001134318 1 Pin 37 1001134319 1 Pin 38 1001134320 1 Pin 39 1001134321 1 Pin 40 1001138459 2 Pad, Rest 41 1001138778 1 Pad 42 1001185197 1 Boom, Main Assembly (See MAIN BOOM ASSEMBLY - 24RSJ for Breakdown) 43 1001185240 1 Upright 44 1001185314 1 Jib Installation (See JIB INSTALLATION - 24RSJ for Breakdown) 45 1001185318 1 Level (Platform Slave) Cylinder Assembly (See CYLINDER SECTION for Breakdown) 46 1001186733 1 Master Cylinder Assembly (See CYLINDER SECTION for
REV
A
ITEM PART NUMBER QTY DESCRIPTION
Breakdown) 47 3790012 1 O-Ring (Not Shown - Located on Platform Box) 48 4360328 1 Switch, Toggle (Not Shown - Located on Platform Box) 50 1001187258 1 Pin
