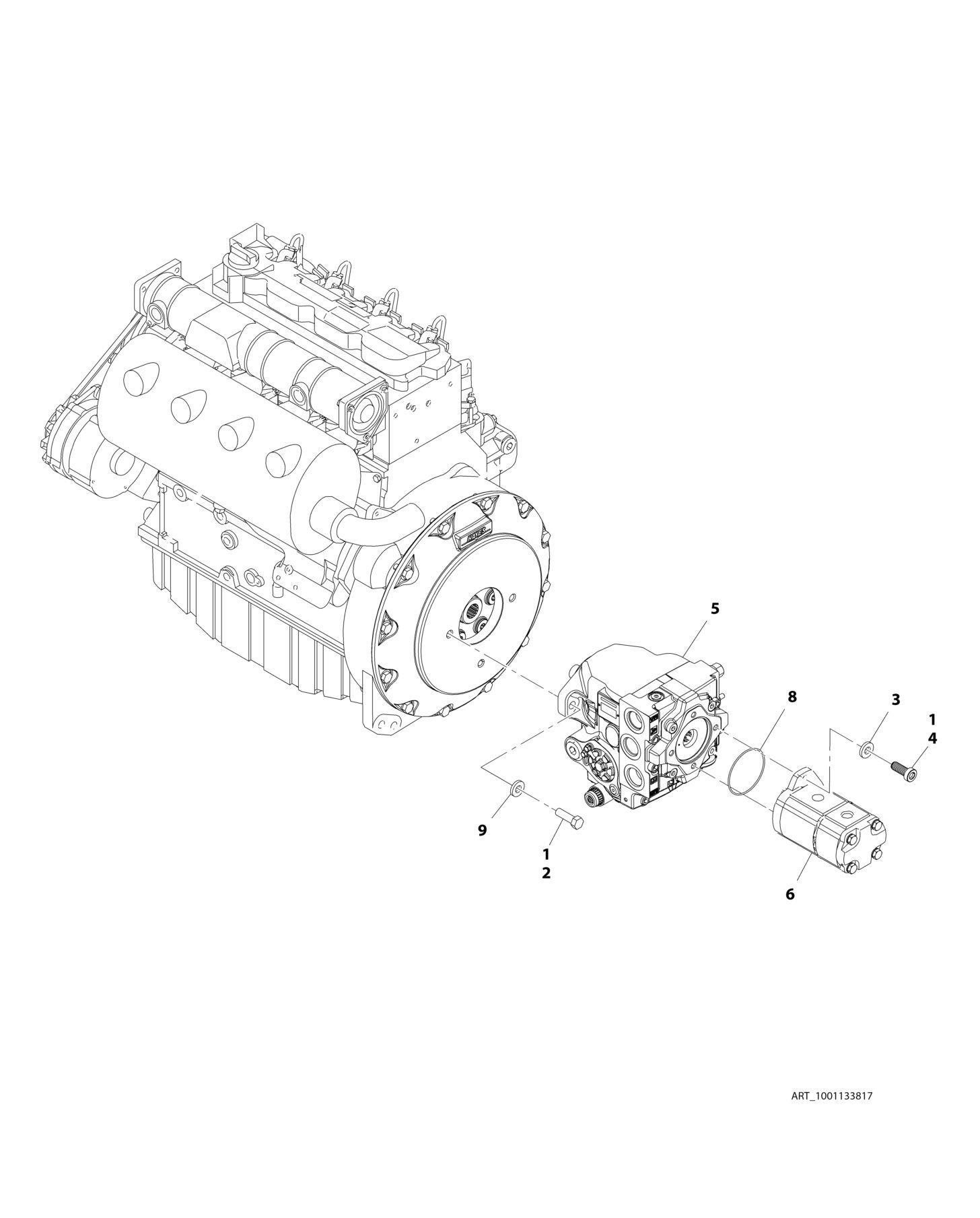

FIGURE 3-2. ENGINE AND PUMP ASSEMBLY

FIGURE 3-2. ENGINE AND PUMP ASSEMBLY

FIGURE 3-2. ENGINE AND PUMP ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001133817 Ref ENGINE AND PUMP ASSEMBLY 1 0100011 AR Compound, Locking 2 0641813 2 Bolt 1/2 x 1-5/8 3 4891600 2 Washer 3/8 4 1001150756 2 Bolt 5 1001132305 1 Piston Pump Assembly (See PISTON PUMP ASSEMBLY for Breakdown) 6 1001132307 1 Gear Pump Assembly (Note: No Serviceable Parts Available Purchase Complete Pump) 8 3790152 1 O-Ring 9 4891800 2 Washer

REV

E
