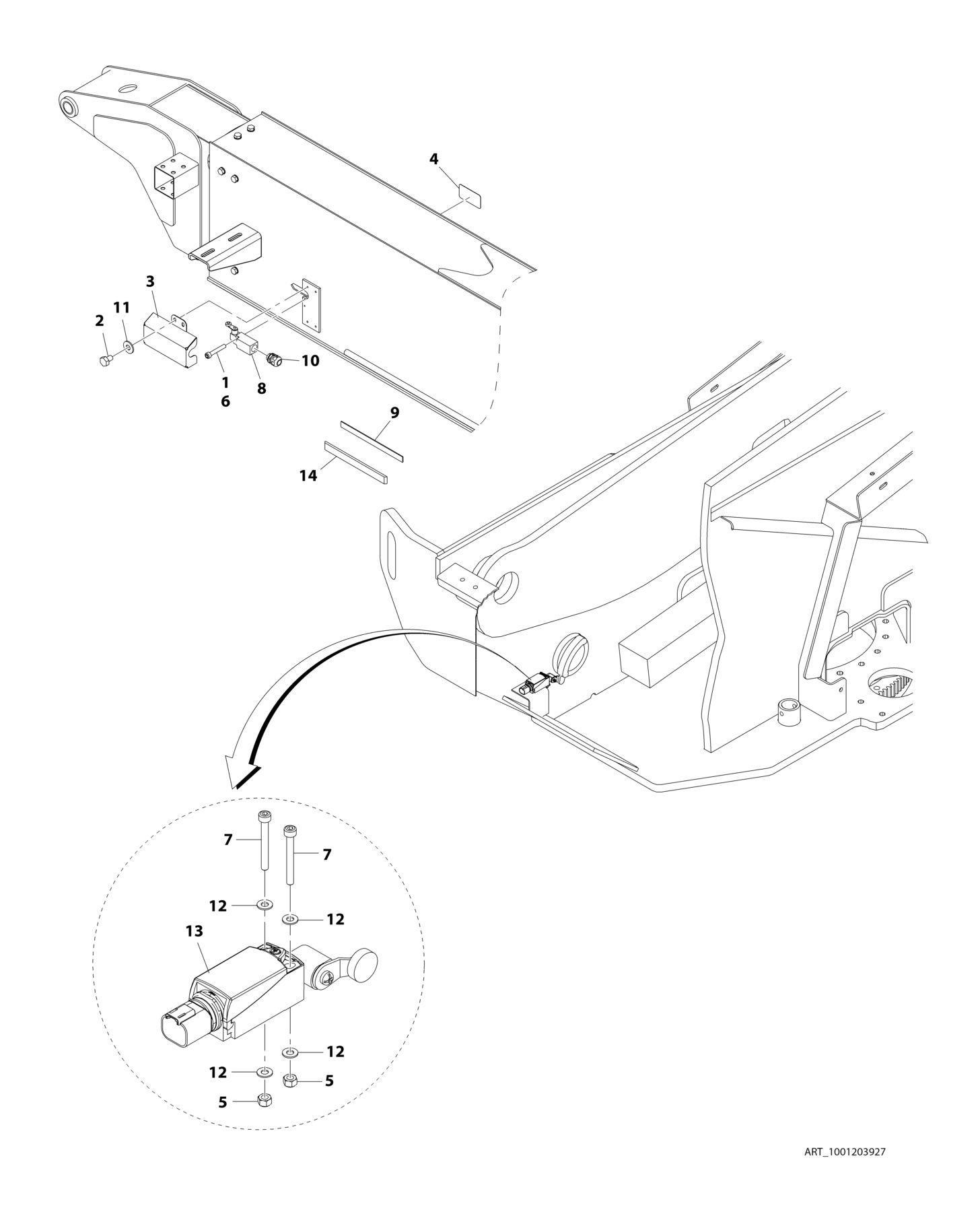

FIGURE 2-24. LIMIT SWITCH INSTALLATION - 24RSJ

from JLG 24RS 24RSJ Parts Manual (3121288) - PDF DOWNLOAD (En)

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 2-24. LIMIT SWITCH INSTALLATION - 24RSJ

ITEM PART NUMBER QTY

DESCRIPTION

1001203927 Ref LIMIT SWITCH INSTALLATION - 24RSJ 1 0100035 AR Compound, Locking 2 0641403 4 Bolt 1/4 x 3/8 3 1670824 1 Cover, Limit Switch 4 1670836 1 Cover, Boom 5 3290405 2 Nut M4 6 3930816 2 Capscrew #8 x 1 7 4031511 2 Capscrew M4 x 35 8 4360578 1 Switch, Limit 9 4420060 AR Tape 10 4460968 1 Connector, Strain Relief 11 4751400 4 Washer 1/4 12 4811400 4 Washer M4 13 1001137033 1 Switch, Limit 14 1001206600 2 Bar, Vinyl

FIGURE 2-24. LIMIT SWITCH INSTALLATION - 24RSJ
