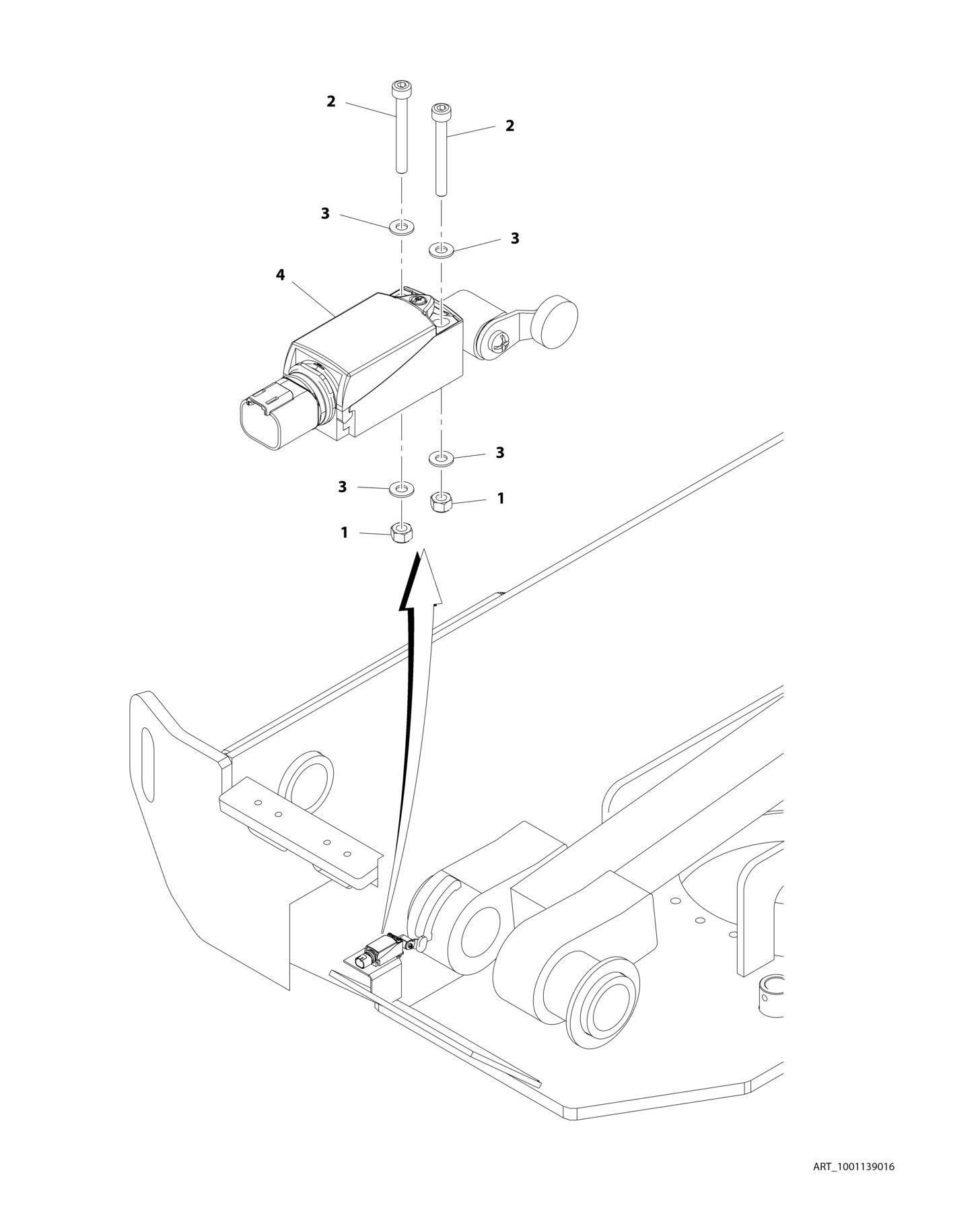

FIGURE 2-23. LIMIT SWITCH INSTALLATION - 24RS
FIGURE 2-23. LIMIT SWITCH INSTALLATION - 24RS
FIGURE 2-23. LIMIT SWITCH INSTALLATION - 24RS
ITEM PART NUMBER QTY
DESCRIPTION
1001139016 Ref LIMIT SWITCH INSTALLATION - 24RS 1 3290405 2 Nut M4 2 4031511 2 Capscrew M4 x 35 3 4811400 4 Washer M4 4 1001137033 1 Switch, Limit
REV
A
