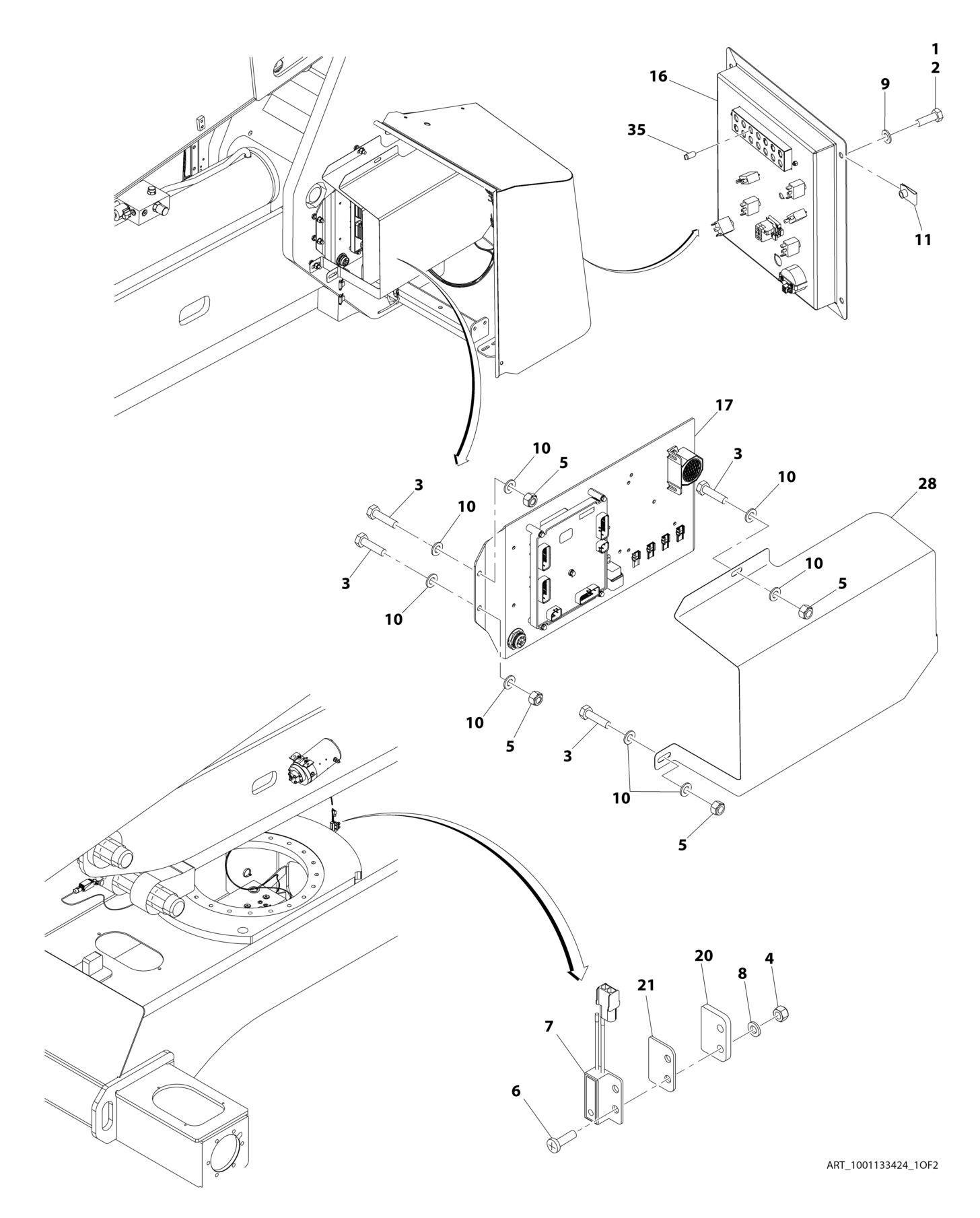

FIGURE 2-16. ELECTRICAL INSTALLATION - 24RS

FIGURE 2-16. ELECTRICAL INSTALLATION - 24RS

FIGURE 2-16. ELECTRICAL INSTALLATION - 24RS

ITEM PART NUMBER QTY

DESCRIPTION

1001133424 Ref ELECTRICAL INSTALLATION - 24RS 1 0100011 AR Compound, Locking 2 0760812 4 Bolt M8 x 25 3 0761016 6 Bolt M10 x 40 4 3290605 2 Nut M6 5 3291005 6 Nut M10 6 3900392 2 Bolt M6 x 30 Stainless Steel 7 4360514 1 Switch, Proximity 7 4460424 1 Connector - 2 Position 7 4460227 2 Pin, Male 8 4811700 2 Washer M6 9 4811900 6 Washer M8 10 4812000 12 Washer M10 11 1001149160 4 Nut, Tinnerman M8 12 1001132511 1 Turntable Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 13 1001132556 1 Engine Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 14 1001134026 1 Chassis Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 15 1001134067 1 Valve Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 16 1001134791 1 Ground Control Panel Assembly (See GROUND CONTROL PANEL ASSEMBLY for Breakdown) 17 1001134830 1 Electrical Panel Assembly (See ELECTRICAL PANEL ASSEMBLY for Breakdown) 18 1001135506 1 Ground Control Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 19 1001139886 1 Auxiliary Pump Cable - Positive (Not Shown) 20 1001140710 2 Shim 21 1001141075 3 Shim 23 4240018 AR Tie-Strap (Not Shown) 24 1001142167 1 Auxiliary Pump Cable - Negative (Not Shown) 28 1001148387 1 Cover 35 2920129 5 Bulb, Light 37 1001159284 1 EMR2 Harness (Not Shown - See ELECTRICAL SECTION for Breakdown)

REV

G
