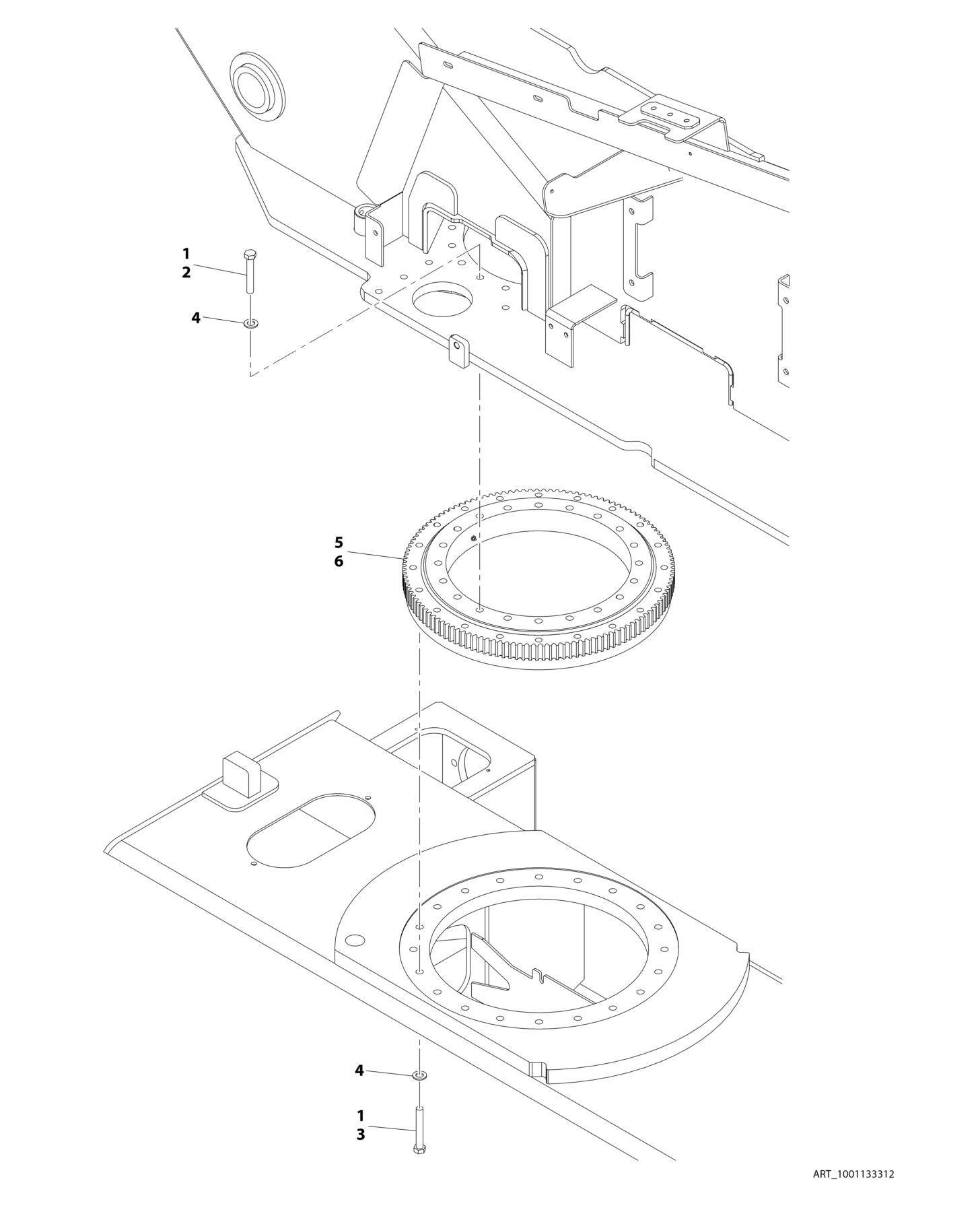

FIGURE 2-9. TURNTABLE BEARING INSTALLATION

from JLG 24RS 24RSJ Parts Manual (3121288) - PDF DOWNLOAD (En)

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 2-9. TURNTABLE BEARING INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001133312 Ref TURNTABLE BEARING INSTALLATION 1 0100019 AR Compound, Locking 2 0711627 20 Bolt M16 x 100 Grade 10.9 3 0711628 20 Bolt M16 x 110 Grade 10.9 4 5241600 40 Washer M16 5 1001132705 1 Bearing, Swing 6 3020029 AR Grease, Bearing

FIGURE 2-9. TURNTABLE BEARING INSTALLATION

Next Article

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 2-9. TURNTABLE BEARING INSTALLATION

FIGURE 2-9. TURNTABLE BEARING INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
