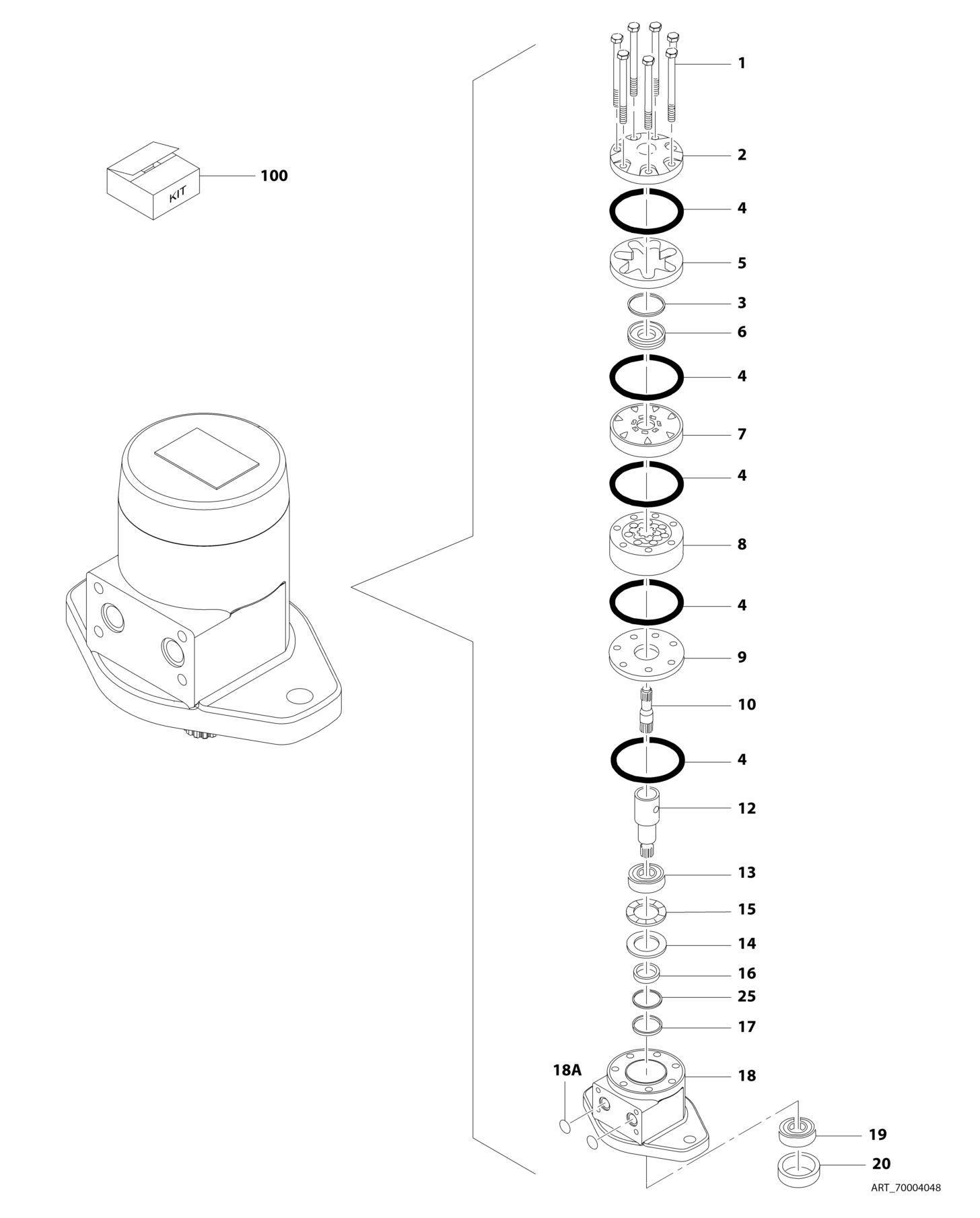

FIGURE 2-7. SWING MOTOR ASSEMBLY
FIGURE 2-7. SWING MOTOR ASSEMBLY
FIGURE 2-7. SWING MOTOR ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
70004048 Ref SWING MOTOR ASSEMBLY 1 See Note NSS Bolt (Note: Not Available - Purchase Complete Assembly) 2 See Note NSS Cover (Note: Not Available - Purchase Complete Assembly) 3 7023318 1 Seal, Commutator 4 7004036 5 Seal, Ring 5 7024453 1 Commutator and Ring Assembly 6 See Note NSS Ring (Note: Use p/n 7024453) 7 7024379 1 Manifold 8 See Note 1 Rotor Set (Note: Not Available - Purchase Complete Assembly) 9 7024380 1 Plate, Wear 10 See Note 1 Link, Drive (Note: Not Available - Purchase Complete Assembly) 12 7024458 1 Shaft, Coupling 13 7024381 1 Bushing, Bronze 14 7004043 1 Thrustwasher 15 7004044 1 Bearing, Thrust 16 7004049 1 Seal, Inner 17 7004045 1 Washer, Back-up 18 See Note NSS Housing (Note: Not Available - Purchase Complete Assembly) 18A 80324055 2 O-Ring 19 7024390 1 Bearing 20 7004047 1 Seal, Dirt and Water 100 7024389 1 Seal Kit - 70004048 Motor (Includes Items 3, 4, 16, 17 & 20)
