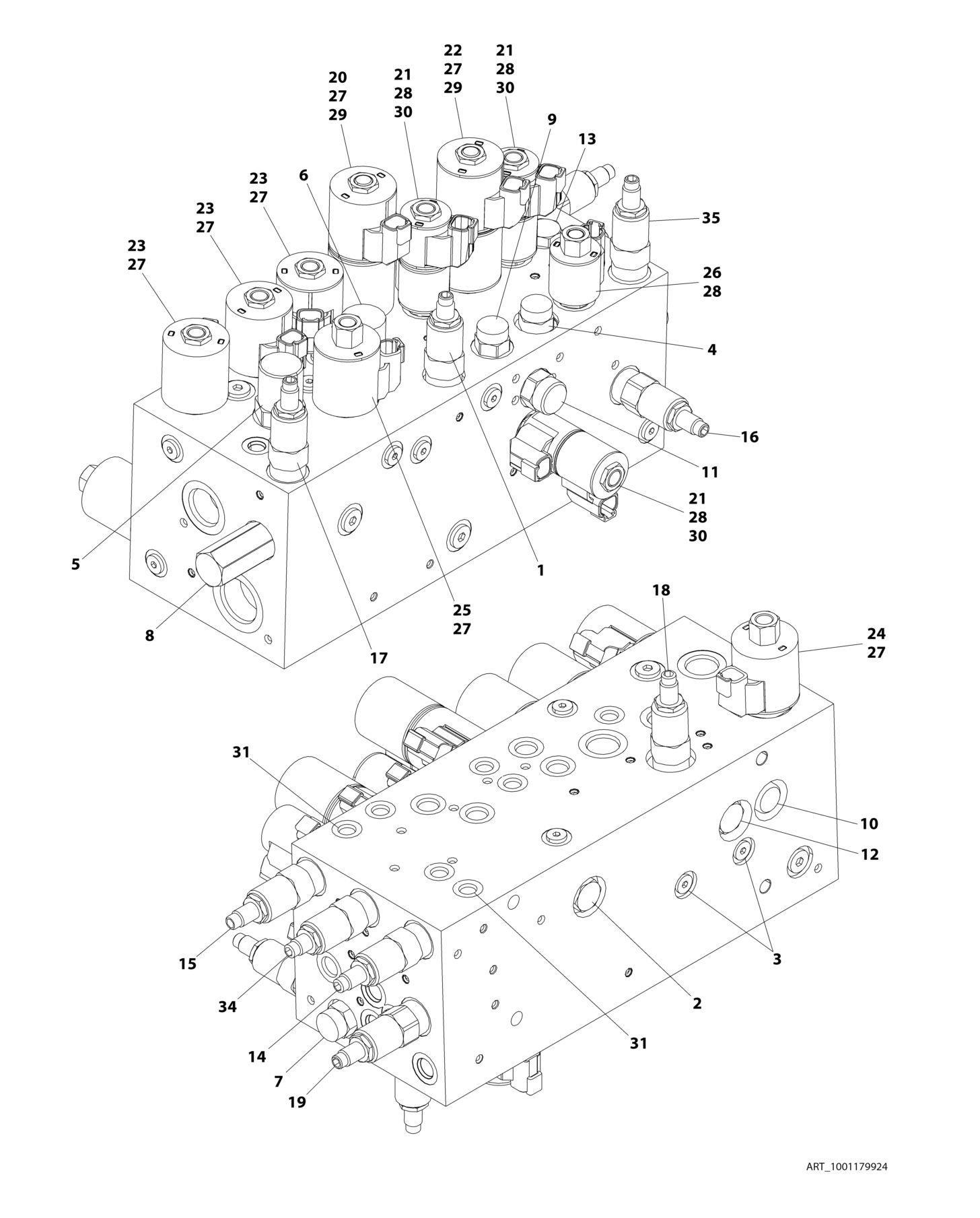

FIGURE 2-4. MAIN CONTROL VALVE ASSEMBLY - 24RSJ
FIGURE 2-4. MAIN CONTROL VALVE ASSEMBLY - 24RSJ
FIGURE 2-4. MAIN CONTROL VALVE ASSEMBLY - 24RSJ
ITEM PART NUMBER QTY
DESCRIPTION
1001179924 Ref MAIN CONTROL VALVE ASSEMBLY - 24RSJ 1 70003961 1 Cartridge, Crossover Relief 1 7021653 1 Seal Kit - 70003961 Cartridge 2 7012975 1 Cartridge, Check 2 7012540 1 Seal Kit - 7012975 Cartridge 3 70002975 2 Cartridge, Check 3 70002976 2 Seal Kit - 70002975 Cartridge 4 70003963 1 Cartridge, Compensator 4 7010543 1 Seal Kit - 70003963 Cartridge 5 70003964 1 Cartridge, Compensator 5 7012925 1 Seal Kit - 70003964 Cartridge 6 70003965 1 Cartridge, Compensator 6 7012925 1 Seal Kit - 70003965 Cartridge 7 70006291 1 Cartridge, Flow Control 7 7010543 1 Seal Kit - 70006291 Cartridge 8 70003966 1 Cartridge, Flow Control 8 70003649 1 Seal Kit - 70003966 Cartridge 9 7012989 1 Cartridge, Flow Regulator 9 7012953 1 Seal Kit - 7012989 Cartridge 10 70003967 1 Cartridge, Flow Regulator 10 7012953 1 Seal Kit - 70003967 Cartridge 11 70005438 1 Cartridge, Flow Regulator 11 7010545 1 Seal Kit - 70005438 Cartridge 12 10837580 1 Cartridge, Load Shuttle 12 7010543 1 Seal Kit - 10837580 Cartridge 13 70005439 1 Cartridge, Valve 13 7017402 1 Seal Kit - 70005439 Cartridge 14 7017489 1 Cartridge, Relief 14 7012998 1 Seal Kit - 7017489 Cartridge 15 70003968 1 Cartridge, Relief 15 7012998 1 Seal Kit - 70003968 Cartridge 16 7017420 1 Cartridge, Relief 16 7012998 1 Seal Kit - 7017420 Cartridge 17 7021613 1 Cartridge, Relief 17 7012998 1 Seal Kit - 7021613 Cartridge 18 70003969 1 Cartridge, Relief 18 7017496 1 Seal Kit - 70003969 Cartridge 19 7017421 1 Cartridge, Relief 19 7012998 1 Seal Kit - 7017421 Cartridge 20 70003970 1 Cartridge, Solenoid (Without Coil) 20 70003976 1 Seal Kit - 70003970 Cartridge 20 7022390 1 Nut, Coil 21 70003971 3 Cartridge, Solenoid (Without Coil) 21 70002967 3 Seal Kit - 70003971 Cartridge 21 7022390 3 Nut, Coil 22 70003972 1 Cartridge, Solenoid (Without Coil) 22 70003976 1 Seal Kit - 70003972 Cartridge 22 7022390 1 Nut, Coil 23 70002401 3 Cartridge, Solenoid (Without Coil) 23 7017496 3 Seal Kit - 70002401 Cartridge
REV
C
ITEM PART NUMBER QTY DESCRIPTION
23 7022390 3 Nut, Coil 24 70003973 1 Cartridge, Solenoid (Without Coil) 24 7023973 1 Seal Kit - 70003973 Cartridge 24 70003977 1 Nut, Coil 25 7012910 1 Cartridge, Solenoid (Without Coil) 25 2900708 1 Seal Kit - 7012910 Cartridge 25 70003977 1 Nut, Coil 26 7017410 1 Cartridge, Solenoid (Without Coil) 26 7012967 1 Seal Kit - 7017410 Cartridge 26 70003978 1 Nut, Coil 27 70003788 9 Coil 28 70002386 7 Coil 29 70003974 2 Disc, Check Valve 30 70002974 3 Disc, Check Valve 31 70003975 2 Orifice 32 See Note AR Plug Options (Note: Not called out on drawing) 32 2220885 5 Plug 3/8 (#6) 32 2220883 12 Plug 1/4 (#4) 34 70003962 1 Cartridge, Crossover Relief 34 7021653 1 Seal Kit - 70003962 Cartridge 35 7017422 1 Cartridge, Relief 35 7012998 1 Seal Kit - 7017422 Cartridge 36 70005717 1 Lock Down Kit (Not Shown) 37 70005724 1 Lock Down Kit (Not Shown)
