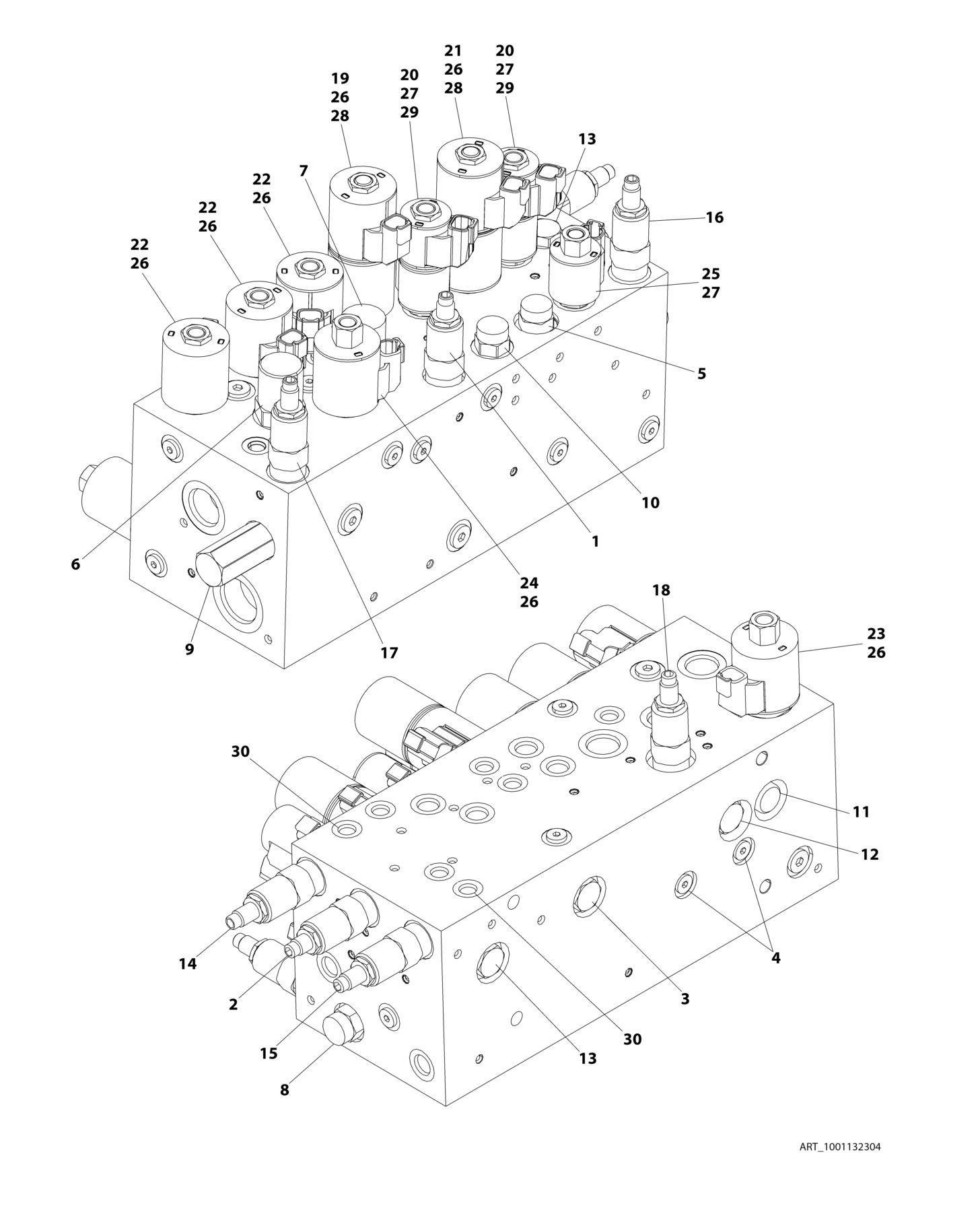

FIGURE 2-3. MAIN CONTROL VALVE ASSEMBLY - 24RS
FIGURE 2-3. MAIN CONTROL VALVE ASSEMBLY - 24RS
FIGURE 2-3. MAIN CONTROL VALVE ASSEMBLY - 24RS
ITEM PART NUMBER QTY
DESCRIPTION
1001132304 Ref MAIN CONTROL VALVE ASSEMBLY - 24RS 1 70003961 1 Cartridge, Crossover Relief 1 7021653 1 Seal Kit - 70003961 Cartridge 2 70003962 1 Cartridge, Crossover Relief 2 7021653 1 Seal Kit - 70003962 Cartridge 3 7012975 1 Cartridge, Check 3 7012540 1 Seal Kit - 7012975 Cartridge 4 70002975 2 Cartridge, Check 4 70002976 2 Seal Kit - 70002975 Cartridge 5 70003963 1 Cartridge, Compensator 5 7010543 1 Seal Kit - 7003963 Cartridge 6 70003964 1 Cartridge, Compensator 6 7012925 1 Seal Kit - 70003964 Cartridge 7 70003965 1 Cartridge, Compensator 7 7012925 1 Seal Kit - 70003965 Cartridge 8 70006291 1 Cartridge, Flow Control 8 7010543 1 Seal Kit - 70006291 Cartridge 9 70003966 1 Cartridge, Flow Control 9 70003649 1 Seal Kit - 70003966 Cartridge 10 7012989 1 Cartridge, Flow Regulator 10 7012953 1 Seal Kit - 7012989 Cartridge 11 70003967 1 Cartridge, Flow Regulator 11 7012953 1 Seal Kit - 70003967 Cartridge 12 10837580 1 Cartridge, Load Shuttle 12 7010543 1 Seal Kit - 10837580 Cartridge 13 7012914 2 Cartridge, Pilot Check 13 7012918 2 Seal Kit - 7012914 Cartridge 14 70003968 1 Cartridge, Relief 14 7012998 1 Seal Kit - 70003968 Cartridge 15 7017489 1 Cartridge, Relief 15 7012998 1 Seal Kit - 7017489 Cartridge 16 7017422 1 Cartridge, Relief 16 7012998 1 Seal Kit - 7017422 Cartridge 17 7021613 1 Cartridge, Relief 17 7012998 1 Seal Kit - 7021613 Cartridge 18 70003969 1 Cartridge, Relief 18 7017496 1 Seal Kit - 70003969 Cartridge 19 70003970 1 Cartridge, Solenoid (Without Coil) 19 70003976 1 Seal Kit - 70003970 Cartridge 19 7022390 1 Nut, Coil 20 70003971 2 Cartridge, Solenoid (Without Coil) 20 70002967 2 Seal Kit - 70003971 Cartridge 20 7022390 2 Nut, Coil 21 70003972 1 Cartridge, Solenoid (Without Coil) 21 70003976 1 Seal Kit - 70003972 Cartridge 21 7022390 1 Nut, Coil 22 70002401 3 Cartridge, Solenoid (Without Coil) 22 7017496 3 Seal Kit - 70002401 Cartridge 22 7022390 3 Nut, Coil 23 70003973 1 Cartridge, Solenoid (Without Coil)
REV
F
ITEM PART NUMBER QTY
DESCRIPTION
23 7023919 1 Seal Kit - 70003973 Cartridge 23 70003977 1 Nut, Coil 24 7012910 1 Cartridge, Solenoid (Without Coil) 24 2900708 1 Seal Kit - 7012910 Cartridge 24 70003977 1 Nut, Coil 25 7017410 1 Cartridge, Solenoid (Without Coil) 25 7012967 1 Seal Kit - 7017410 Cartridge 25 70003978 1 Nut, Coil 26 70003788 9 Coil 27 70002386 5 Coil 28 70003974 2 Disc, Check Valve 29 70002974 2 Disc, Check Valve 30 70003975 2 Orifice 31 See Note AR Plug Options (Note: Not called out on drawing) 31 7024844 5 Plug 3/8 (#6) 31 7017406 12 Plug 1/4 (#4)
