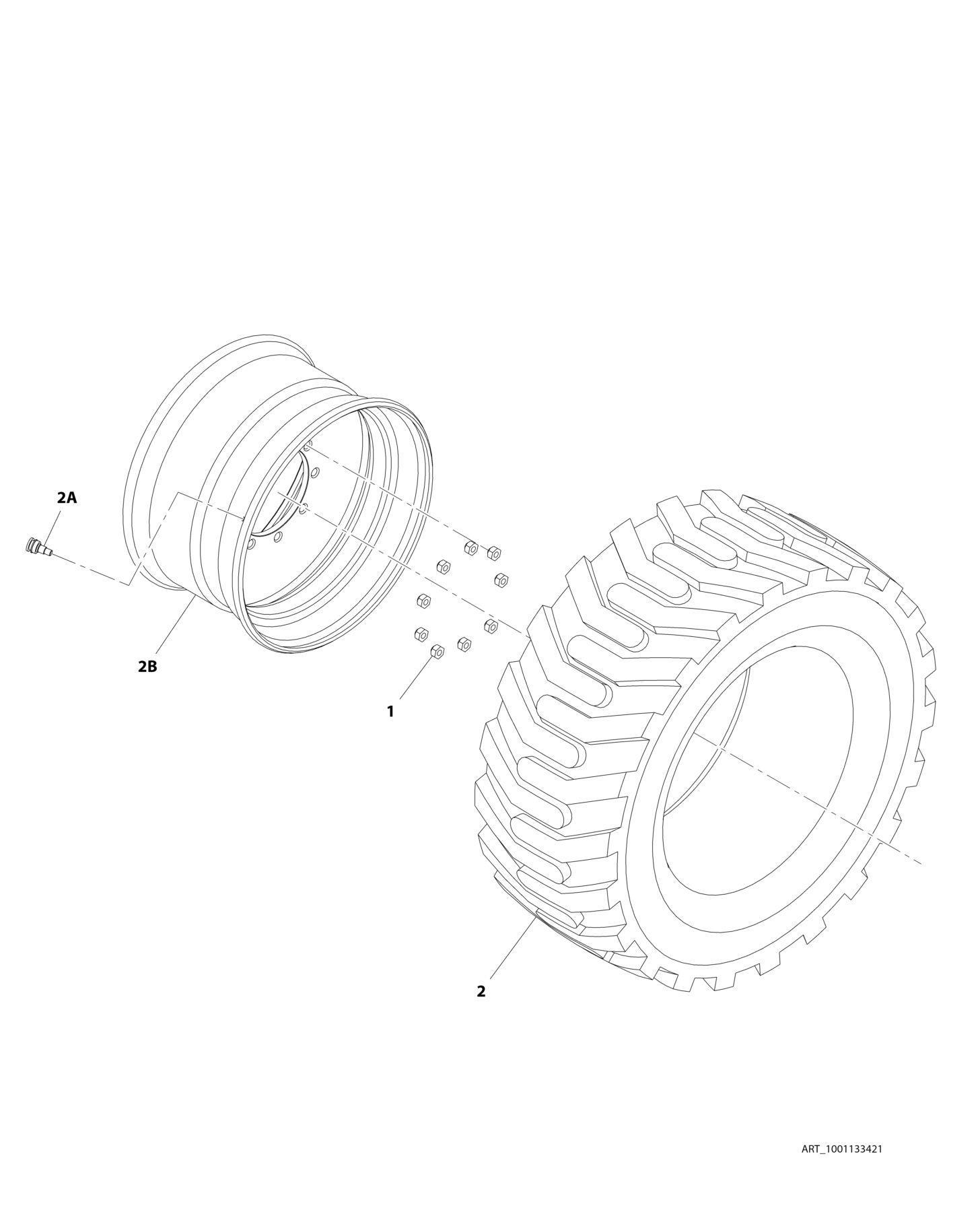

FIGURE 1-5. TIRE AND WHEEL INSTALLATION

FIGURE 1-5. TIRE AND WHEEL INSTALLATION

FIGURE 1-5. TIRE AND WHEEL INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001133421 Ref TIRE AND WHEEL INSTALLATION 1 3300106 36 Nut, Wheel (9 per Wheel) 2 Ref Tire and Wheel Assembly Options: 2 1001133360 2 39 x 15-22.5 Foam-Filled Left Side 2 1001133361 2 39 x 15-22.5 Foam-Filled Right Side Ref Note: Assemblies may require ballast/foam filling to

manufacture's specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and/or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly.

2 1001097351 1 Tire 39 x 15-22.5 2A 8786514 1 Valve Stem, Air 2B 1001133359 1 Rim, Wheel

REV

B
