LUBRICATION DETAILS

Grease Fittings

Lubricate all grease fittings (refer to TABLE 6) every 50 hours of operation using No. 2 multipurpose lithium base grease. Clean the grease gun and fittings before and after greasing to prevent dirt/dust.

NOTE:When operating in muddy or extremely wet conditions, lubricate the all grease fittings daily.

Engine Oil & Filter

Low-ash engine oil (Oil quality : ACEA E-9, equivalent to API standard CK-4) must be replaced.

NOTE: Using not applicable engine oil would causes clogging DPF early due to ash. Ash is the metal additives contained in Engine oil. It cannot be removed by burnt and will be accumulated in DPF.

After finishing the maintenance with carrying out DPF regeneration for a long time, replace the engine oil. There is a possibility that oil viscosity becomes lower due to mixing the fuel to the engine oil.

CAUTION: Muffler tail pipe is extremely hot just after operation, so take care not to touch it to avoid burns. Be sure to wear gloves before checking engine oil level.

Engine oil should be changed after the first 50 hours of operation and every 200 hours. Engine oil filter should be changed after the first 50 hours of operation and every 200 hours.

FIG. 105: To Check Engine Oil Level - Park tractor on level ground. Make sure to allow the engine to cool sufficiently before checking the engine. Pull out dipstick (1) and check that oil level is between upper limit, F, and lower limit, L, on dipstick. Wipe off dipstick, momentarily reinstall in engine and check oil level again. If the oil level is higher than the cut part on dipstick, replace the engine oil immediately to prevent engine trouble.

FIG. 106: To add oil, open the engine hood and remove the filler cap (2) add oil using a funnel to prevent oil from spilling. After adding oil, make sure that oil level is between upper limit and lower limit on dipstick.

NOTE: Add oil slowly to assist in venting air from the crankcase.

FIG. 107: To Change Engine Oil - Operate the tractor until oil is adequately warmed. Remove the drain plug (3) from the engine and allow all oil to drain out. Reinstall the drain plug and fill the engine oil through filler opening (2) to the upper limit on the dipstick.

FIG. 108: To Replace Engine Oil Filter - Remove the oil filter (2) from the engine and take the old filter to a proper disposal point. Make sure that the original filter gasket has been removed.

Lubricate the O-ring on the new element with clean engine oil. Turn in the new element until its sealed face comes in contact with the O-ring. Use a filter wrench to further turn in the cartridge by 3/4 turn.

(Tightening torque : 15.0 - 20.0 N・m)

Clean spilled oil and refill new oil. Start the engine, check for leaks and oil level.

IMPORTANT : Engine warranty is valid only when original engine maker manufacturer’s oil filter is used.

Transmission Oil & Filters

Transmission oil lubricates the transmission, center housing, and rear axles and also serves as hydraulic fluid. Transmission oil should be changed and the filter should be cleaned after the first 50 hours of operation and then every 400 hours thereafter.

FIG. 109: To Check Transmission Oil Level - Park the tractor on level ground. Oil level should be indicated in oil level window (1). Oil level is replenished, as necessary, by removing the filler plug (2) and adding oil through the filler opening.

NOTE: Adding oil to the transmission will also maintain correct oil level in the center housing and rear axles.

FIG. 110: To Replace Transmission Oil - Remove the drain plug (3) and completely drain oil from system.

(Tightening torque : 44.1 - 53.9 N・m)

IMPORTANT: Completely lower the 3-point linkage prior to draining transmission oil. When completely drained replace and tighten all drain plugs. Refill with oil as mentioned above.

(Only for HST TYPE)

FIG. 111: To Clean Transmission Oil Filter - Always replace the transmission oil filter while oil is removed. Carefully unscrew the oil filter (4) from its transmission. Use filter wrench.

Clean the filter adapter and lubricate the O-ring on the replacement filter adapter with clean transmission oil. Install the new filter until O-ring contacts the transmission and tighten additional 2/3 turn by hand. Do not use a filter wrench to install the filter.

(Tightening torque : 20.0 - 25.0 N・m)

Replace the cartridge after the first 50 hours, and then every 400 hours.

FIG. 112: To Clean Transmission Strainer(Suction)

- Clean the transmission oil filter while oil is removed. Loosen bolt (3) and draw out filter (1). When assembling, apply grease on O-ring (2) so as not to damage.

NOTE: After transmission oil has been replaced, or when the tractor restart after a long term of storage, or when the hydraulic system does not operate properly, consult your dealer.

Front Axle Oil

Front drive axle has a common oil level for front differential housing and each wheel reduction unit. Oil level should be checked every 200 hours of tractor operation and replaced after every 600 hours.

FIG. 113: To Check Oil Level - Park the tractor on level ground and then remove the filler cap (1). Check that the oil level is at the center of driving shaft. If necessary, fill up oil from filler cap.

To Change Oil - Park the tractor on level ground. Remove the drain plug (2) from both wheel reduction units. When all oil has drained out, replace the drain plugs. Fit the drain plugs and fill up oil.

(Tightening torque : 29.1 - 34.3 N・m)

After changing the oil, sometimes the oil level gets low after running the engine. Check the oil level after test running and make sure that there are no difference in oil level before and after the test run.

Cooling System

CAUTION: Do not open the radiator cap except when checking or replacing the coolant. Make sure to allow the engine to cool sufficiently before opening the cap. If the cap is opened while the engine is hot, coolant can pout, resulting in a burn or other injury.

Checking / Replenishing Coolant

FIG. 114: The radiator is provided with a reserve tank (1) to maintain the coolant in the radiator at the proper level. Check the level in this reserve tank during the daily inspection.

Open the hood, and make sure that the coolant in the reserve tank is between FULL and LOW levels. If the coolant level is near to the LOW level, add coolant to the reserve tank up the FULL level.

When the coolant level is below the LOW level, remove the radiator cap (2) after allowing the engine to cool sufficiently. Add coolant and make sure that there is an adequate amount of coolant in the radiator.

IMPORTANT: Do not fill the reserve tank higher than the FULL level. This will prevent the radiator from functioning optimally, and may result in leakage of coolant.

Flushing Radiator / Replacing Coolant

FIGS. 115 & 116: Pull the hose (1) out from the pole at the right side of the engine to drain coolant. Open the radiator cap (2) at the same time to allow the coolant to drain. Remove the reserve tank (3) to drain coolant from it.

Thoroughly flush out the inside of the radiator with tap water.

Set the drain hose (1) onto the pole and pour coolant into the reserve tank up to the FULL level to fill the radiator.

Securely close the radiator cap (2) and reserve tank cap, and start the engine, allowing it to run for about 5 minutes in the mid speed range (Approx. 1500 min1). Then stop the engine.

When the engine cools, the coolant in the reserve tank will be sucked into the radiator.

Add coolant to the reserve tank up to the FULL level.

Use of Anti-Freeze

Freezing of the coolant may result in damage to the engine. Mix in 50/50 anti-freeze (Long Life Coolant) when the outside temperature will drop below 0 °C (32 °F) during the winter.

The mixture ratio of anti-freeze differs depending upon the anti-freeze manufacturer and temperature. Follow the instruction for the anti-freeze.

Cleaning Radiator

WARNING: Make sure to stop the engine when cleaning the radiator. Placing your hands in this area while the engine is operating may result in serious injury.

FIG. 117: Cleaning Radiator Net

When the tractor is operated in fields or at night, radiator net may become clogged with grass, straw, insects and other matter. Park the tractor on level, and open the hood. Pull out the radiator net (1) and clean it.

NOTE: Before pulling out the radiator net, 1, turn the steering wheel slightly to the right. Otherwise, radiator net, 1, interferes with tire.

Cleaning Radiator Core

Wash away any dirt or other foreign matter in the fins and the radiator core (2) with water.

IMPORTANT: When the radiator becomes clogged, it will overheat, resulting in increased oil consumption.

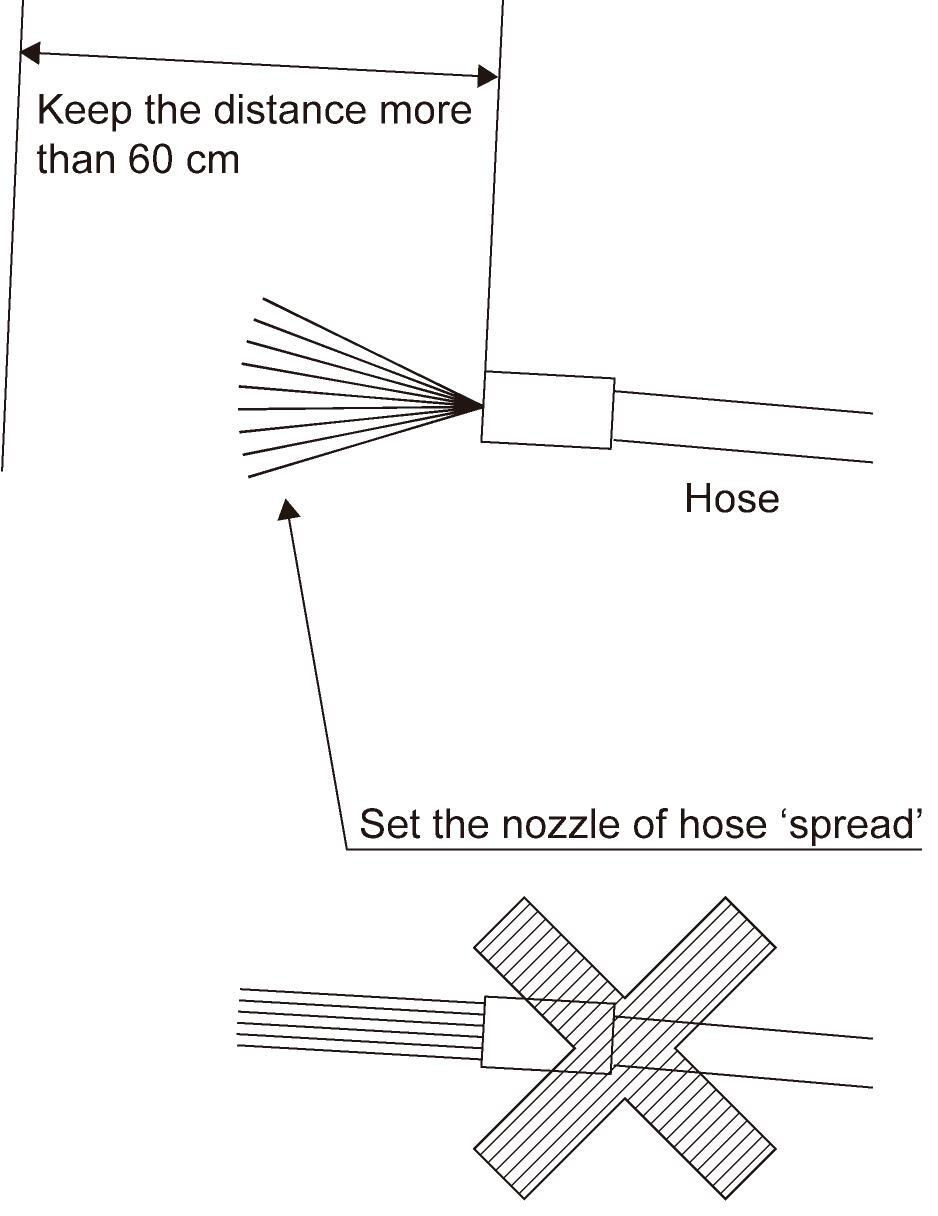

Be careful not to apply high pressure water directly to the radiator as this may result in deformation of the fins.

Do not directly spray water on the electrical wiring or electrical parts around the engine.

Fan Belt

WARNING: Before checking the fan belt, stop the engine and remove the starter key without fail. Wait until the engine and accessories cool down completely to prevent burns.

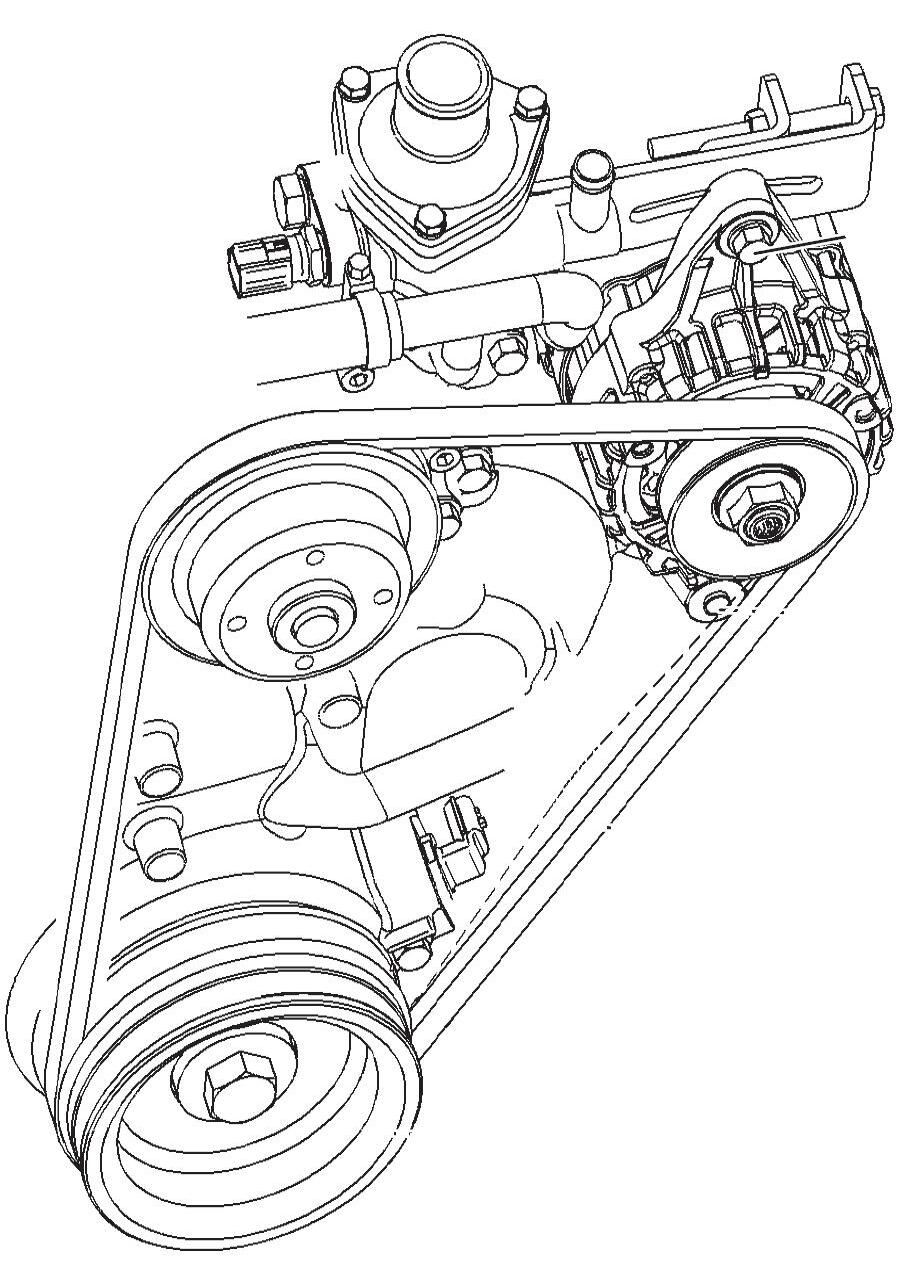

FIG.118: The fan belt (1) is accessible from the left of the engine room by opening the engine hood. Check the belt for tension and damage.

Push down the belt with a finger at the intermediate point between the alternator (2) and crankshaft pulley (3) with a force of 10 kgf (22 lb) and see its deflection (A). If belt deflection is approximately 10 mm, the tension is proper.

When the belt deflection is improper, correct in the following procedure: a. Loosen the bolt M10 (4) and M8 (5). b. Loosen the lock nut M8 (7), and adjust the belt tension by adjustment bolt (6). c. Fix the lock nut M8 (7) for adjustment bolt M8 (6).Tighten the bolt M10 (4) and M8 (5), and check the belt deflection.

IMPORTANT: When the belt is found to be defective, ask your dealer for replacement.

Engine Air Cleaner

IMPORTANT: Never operate the engine with the air filters removed.

Cleaning / Replacing Air Cleaner Element

FIGS. 119 & 120: The engine air cleaner (1) is located above the engine. To service the engine air cleaner, gain access, open the hood.

Press the vacuator valve (2) to discharge any dirt inside. Release clips (3). Remove cover (4) and take the element (5) out of the air cleaner.

If there is moisture, wipe the inside of the air cleaner (1). If the element (5) is damaged, replace it.

IMPORTANT: Only genuine air cleaner and element must be installed to the machine.The air cleaner is designed as installing single element. Hence, do not add the second element. If the air cleaner is designed as installing double element, do not use the air cleaner with only single element. In case installing not applicable air cleaner, including replacing single to double elements, the sensor error will be occurred to measure intake air volume. As the result, it could have negative effect to control the temperature of DPF regeneration, or to estimate DPF soot accumulation.

FIG. 121: Element can be cleaned (if in serviceable condition) using following procedures:

• Using compressed air not to exceed 200 kPa from the inside of the element, remove loose dirt, grass, chaff, etc. Be careful not to damage element pleats with air flow.

NOTE: Clean the air cleaner frequently. Clogging the air cleaner causes worsening the engine combustion and clogging DPF. When cleaning air cleaner, pay attention not to damage the air flow sensor. (Do not blow the high pressure air or spray for cleaning to the sensing parts of air flow sensor.)

• After cleaning the element examine for pin holes, punctures, or tears. If the element paper, canister or seal show any signs of physical damage, the element must be replaced.

IMPORTANT: Do not hit the filter element against a rock, concrete or other hard item when cleaning it. This may result in damage or deformation of the filter element, inhibiting engine performance.

FUEL SYSTEM

Use only clean diesel fuel of correct grade. Introduction of water or dirt into the fuel tank or other portion of the fuel system can cause repeated plugging of the fuel filter and possible injection pump and injector damage.

IMPORTANT: Do not use Kerosine or heavy oil as fuel. Do not add fuel additive. Do not use diesel after long-term storage in dram can or home tank. Usage of unspecified fuel causes breakage of fuel filter, parts of fuel injection or postprocessor.

Use only ultra-low-sulfur diesel.In case to use the fuel containing much sulfur, it will be cause of poisoning DOC and DPF. Then, DPF and DOC lose the functions of cleaning exhaust gas and raising temperature of the exhaust gas.

Do not tamper with injection pump, or injector adjustment. Such tampering will spoil engine itself and / or cause severe engine damage. And warranty will not be covered for the machine with such tampering.

Fuel Filter

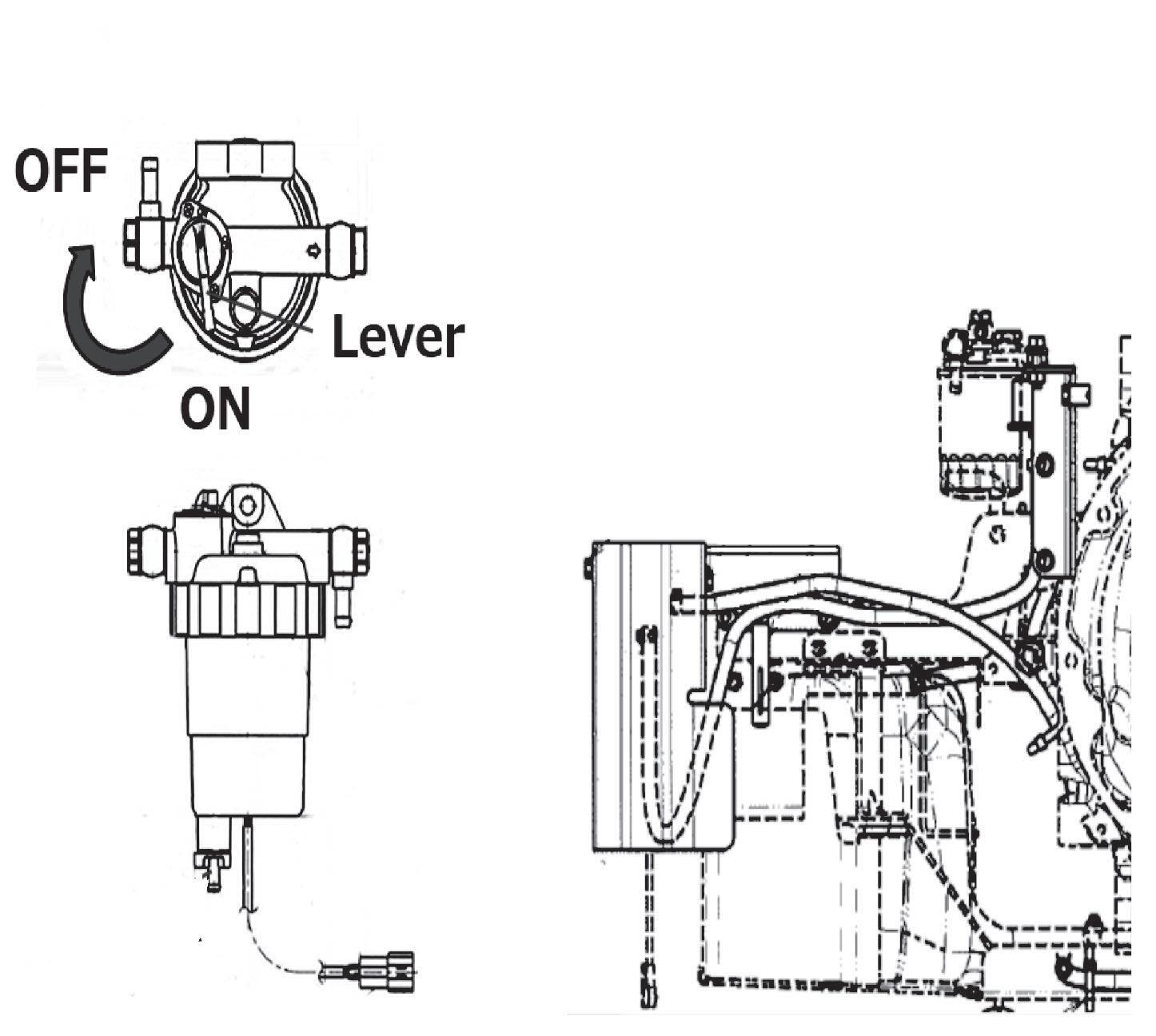

FIG. 122:The main fuel filter (1) and the pre-filter (2) are located the right side. Both filter remove particles in the fuel before the fuel reaches the injection pump. The main filter removes finer particles that have passed through the pre-filter. Since the drain plug (3) is attached to the pre-filter, drain the water immediately after the indicator lamp lights up. Also, periodically remove the filter bowl (case), clean to remove deposits of sediment or water, and inspect and replace the element.

(Pre-filter)

Water drain procedure

1) When water reaches specified level, indicates warning on the instrument panel.

2) Turn off the fuel cock lever (4). Then, loosen the bolt (5).

3) Drain water from drain plug (3).

4) Tighten up the drain plug (Tightening torque:1 N・m)

5) Tighten the bolt (5) and turn on the lever(4). (Main filter)

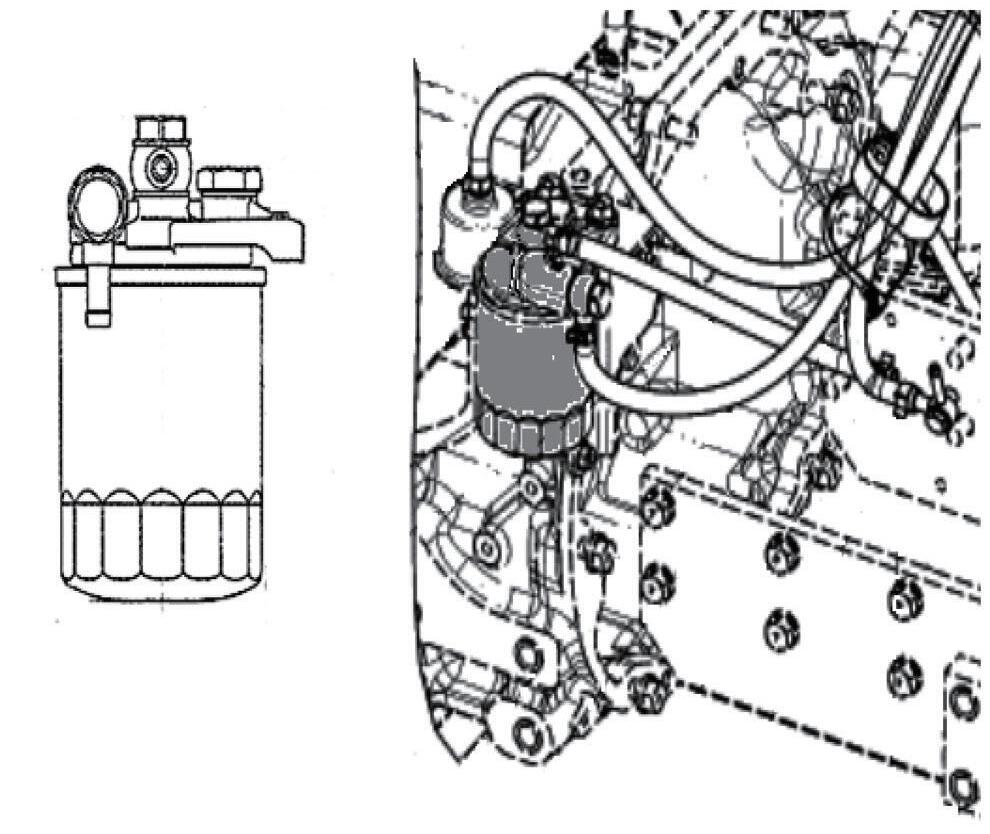

FIG. 123: Filter element replacing procedure

1) Loosen the filter cartridge (1) and remove it.

2) Install new filter cartridge.

NOTE: Do not reuse with washing the element. Be sure to replace genuine new parts.

(Pre-filter)

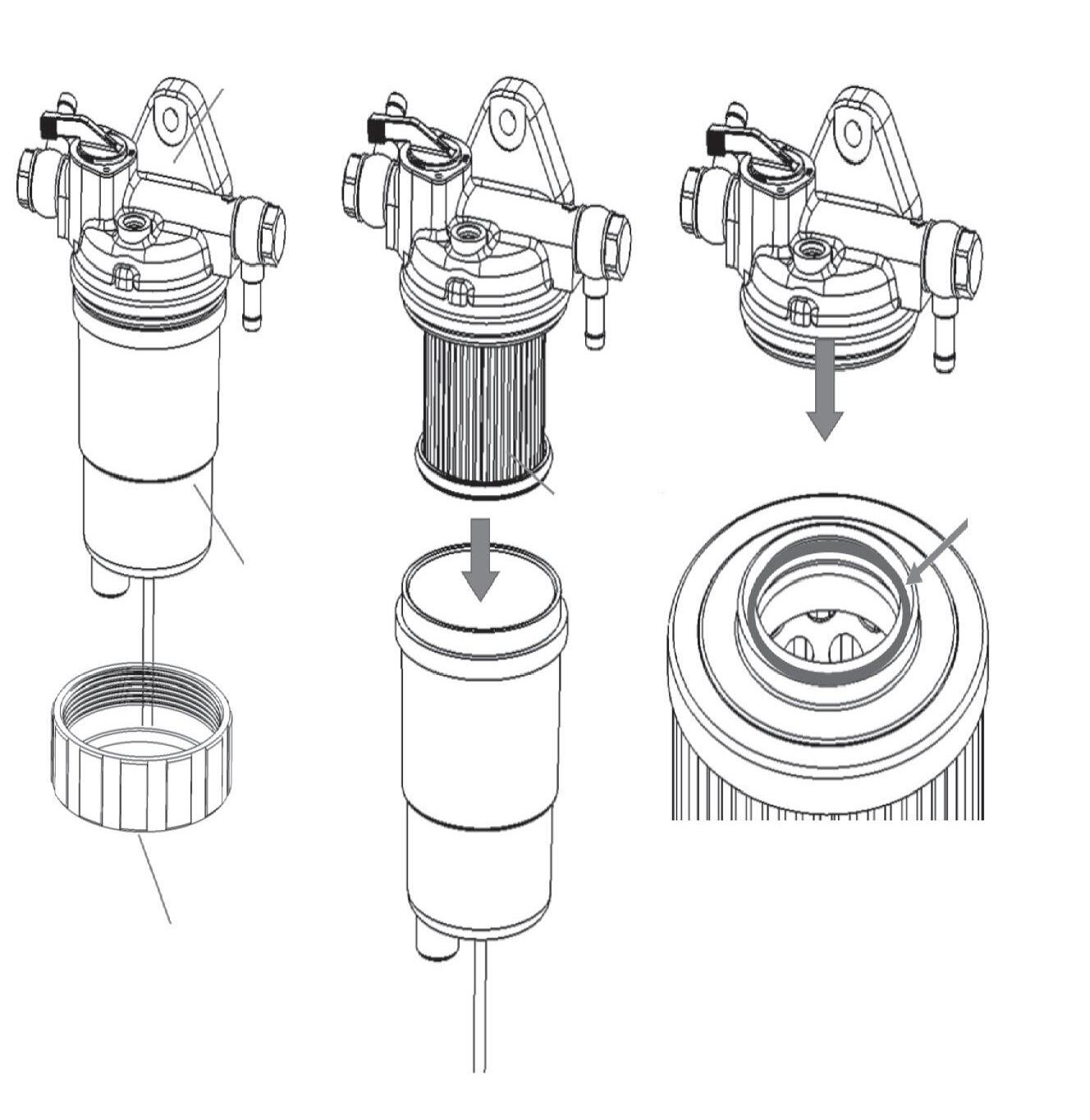

FIG. 124: Filter element (1) replacing procedure

* Replace after draining water.

1. Loosen the ring (2).

2. Pull the case (3) down.

3. Pull the used element down.

4. Replace the element.

5. Apply grease to the O-ring (4) inside the new element.

6. After coating, attach the element to the head (5), assemble the case.

Tighten the ring (about 3/4 circumference [tightening torque: about 30 Nm])

NOTE: Do not reuse with washing the element. Be sure to replace genuine new parts.

When damaging the cupper washer due to dropping the washer (6), loosen the bolt by mistake during assembly or so on, the washer must be replaced to new one. Reusing or retightening the washer cause the fuel leakage. Confirm the parts for replacement with parts catalogue. Then, order the parts and 4 pcs. of the cupper washer to your dealer.

Air-Bleeding Fuel System

FIG. 125: Before starting the procedure : If any of the following conditions have occurred, bleeding the the system is necessary:

• The fuel tank is empty.

• The fuel lines, filter elements, and other components within the system have been disconnected or removed.

• The engine has not operated for a long period of time.

• The engine fails to start, or starts but stops again after a short time of operation.

Procedure :

1. Make sure that the drain plug (1) and bolt of the pre-filter (2) are tightened, and then turn on the fuel cock lever (3).

2. Turn on the main key switch to operate the fuel supply pump.

3. Loosen the air vent plug (4) of the main filter (5), and keep to turn on the key switch until no air bubbles are discharged with the fuel.

4. Tighten the air vent plug of the main filter. Tightening torque is 40 Nm

5. Turn off the main key switch.

NOTE: Normally, further air-bleeding is not required due to electric fuel pump operating when main switch in instrument panel is ON.

If engine will not start after several attempts, check fuel pump fuses (see “Electrical System”).

Crankcase Breather

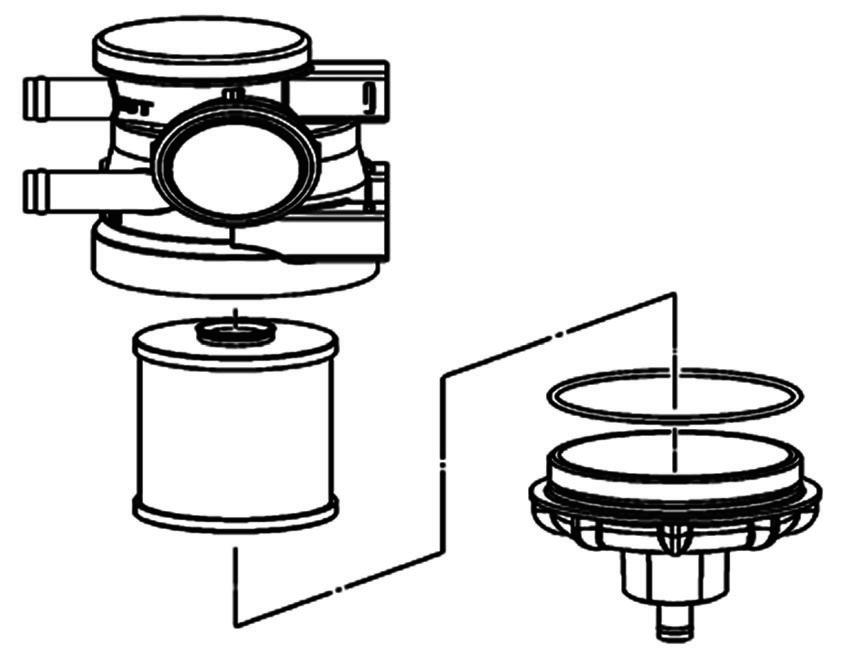

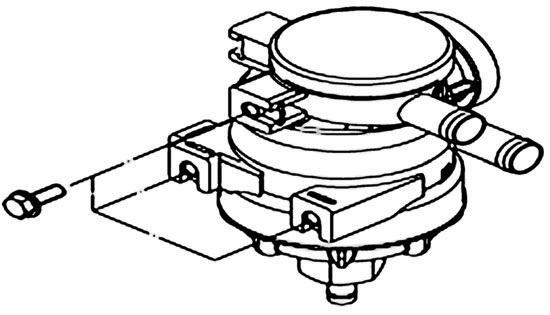

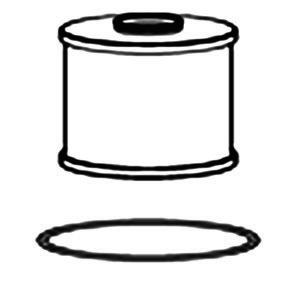

FIGS. 126 & 127: Crankcase breather (1) is located at the top of the engine.

1. Loosen the case (2), and take out the element (3).

2. Install new filter element (4).

IMPORTANT: Do not reuse the element. Use only genuine filter element.

3. Replace the O-ring (5) of the case simultaneously. This O-ring is contained in the new filter element (4).

4. Apply the engine oil onto O-ring and assembly the case onto the body (6).

(Tightening torque: 9.5 - 10.5 N m)

5. Fix the breather to the bracket with three bolts (7).

(Tightening torque: 7.0 - 8.0 N m)

Fuel Tank Filler Cap

FIG. 128: When fuel tank filler cap (1) is removed, a hissing or popping noise may be noticed. This is due to cap design and is a normal condition. Do not alter cap or use unapproved replacement as fuel leakage may occur in event of tractor upset.

Throttle Lever

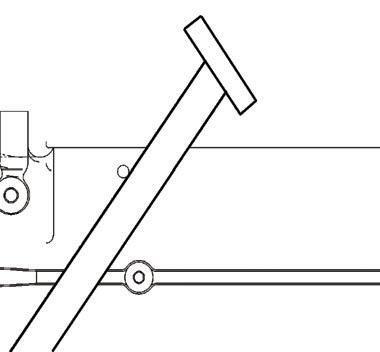

FIG. 129: The throttle lever (1) should remain in the position selected by the operator. Through normal use, friction against the lever may decrease, causing the lever to move out of the selected position. Turn the adjusting nut (2) as required to retain the throttle lever in the position selected.

NOTE: Throttle lever friction adjustment nut is reached by removing the steering column cover and instrument panel.

Electrical System

Battery

FIG. 130: Battery (1) is located under engine hood in front of radiator.

When battery is removed, electrolyte inspection or cable cleaning is necessary.

Keep top of battery clean and ensure cable connections are clean and tight. Debris on battery can cause discharge of battery and possible source of fire.

CAUTION: Batteries produce explosive hydrogen gas when charged. Keep all sparks and open flame away from battery.

When necessary to disconnect battery cables, always disconnect the grounded (-) cable first to prevent short circuits.

Batteries contain sulfuric acid electrolyte (fluid). Wear eye and face protection. If electrolyte comes in contact with skin or clothes, wash immediately. Contact a doctor if electrolyte is ingested or gets in eyes.

When the battery performance is weak, remove the battery and charge the battery, and follow instruction for the battery charger.

Repeated battery charging may be due to a defect in tractor charging system and / or a defective battery.

WARNING:

Never disassemble battery. Batteries contains sulfuric acid electrolyte (fluid). Keep away from sparks or flames, which could cause explosion.

When charging battery from an external source, Set charging voltage below 16V. Set charging ampere below 1/10 of the battery capacity. Prevent overcharge. Battery temperature must not exceed 45°C. When connecting and disconnecting battery cables, turn off power of battery charger. If you have any question about battery, consult your dealer.

IMPORTANT: Do not quick-charge the battery, or it may damage the battery and decrease its performance.

IMPORTANT: Charge the battery before the first use of this tractor.

IMPORTANT: When storing tractor for long period without operation, self discharge of battery will happen (especially in winter). If the tractor is stored for more than 1 month, the battery minus terminal should be disconnected.

When operating for the first time or after long term storage, check if the battery charge level is enough. (If measurement of battery voltage is available, check if the voltage is more than 12.5 V.) When the tractor is stored more than 2 months in summer or 3 months in winter, charge the battery.

NOTE: When handling the battery, never close or cover vent of battery.

FIG. 131: The battery is required the electrolyte inspection. Make sure that the electrolyte level is between upper limit (A) and lower limit (B). When the level is below lower limit, raise the level with distilled water.

FIG. 132: To replace the battery, disconnect negative (-) cable (1) first and then remove positive (+) cable (2). Loosen and remove battery securing clamp and carefully.

When installing battery, cable (2) connected to starter solenoid should be connected to positive (+) battery terminal first then cable (1) grounded to tractor frame can be connected to negative (-) battery terminal.

NOTE: Make sure that replacement battery is same size and equal capacity. (80D26R)

IMPORTANT: Do not reverse battery cable connections as severe electrical system damage will result.

Starting Switches

This tractor is equipped with a neutral-start system consisting of neutral switches and a relay. To start tractor, ALL the following is required:

• Range Gearshift Lever in neutral.

• PTO Switch in OFF position.

• Operator seated on the seat.

• For HST type, release the foot from HST pedal.

• For Mechanical transmission type, Main Gearshift Lever, Forward /Reverse Lever in neutral. Depress Clutch pedal.

WARNING: DO NOT bypass or modify the neutral switch. If the neutral start system does not operate properly, consult your dealer immediately.

NOTE: A seat safety switch is incorporated into system.

Wiring / Fuse Arrangement

CAUTION: Keep all wiring connections clean and tight. Make sure wiring is correctly secured to prevent damage.

CAUTION: DO NOT alter wiring by adding “home-made” extensions or replacements. Doing so can eliminate fuse protection and / or eliminate safety features of the system.

CAUTION: The tractor is equipped with negative (-) ground system. Tractor metal parts provide many electrical connections. For this reason, all positive (+) circuits must be insulated to prevent “grounding” or short circuits and prevent possible fire.

CAUTION: DO NOT replace any fuse with a fuse of higher amperage rating. DO NOT use wire (or foil) to by-pass fuse protection. Fire can result.

If fuses blow repeatedly, examine the electrical system for “earthed” or “shorted” circuits.

Wiring / Fuse Arrangement

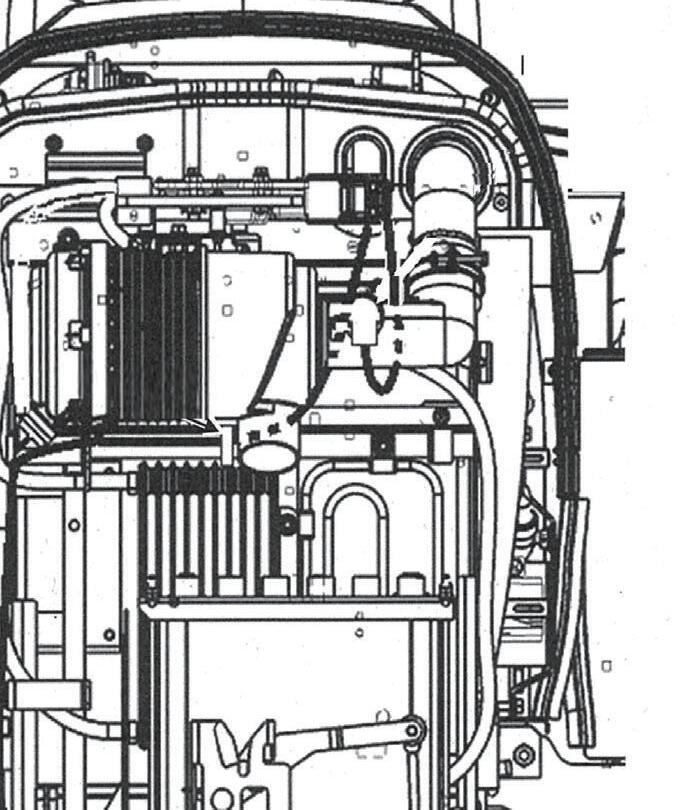

FIG. 133: General layout and location of electrical system components and fuses:

(A) Main Fuse Box - Located near the rear left-hand side of dash panel.

Ref.AmpFunction

15AECU

25AParking Buzzer

310AInstrument Panel

420AEngine ECU Main Relay

510AFuel Pump Safety Circuit

610AInstrument Pane; PTO control

715ABeacon Lamp

810APTO Switch

910ASafety Circuit for starting

1015AEngine Warning Lamp

1110ABrake Lamp

125AHorn

1315AHead Lamp

1410ATail Lamp etc.

1515AHazard Switch

1615AWorking Lamp

1715ACAB Power Supply

1810AECU Ignition

1915ABlinker

2010ACAB Power Supply

(B) Slow Blow Fuses - Located near the rear lefthand side of engine.

In-line fuses protect relevant circuit by melting when sustained heavy electrical load or short circuit is encountered.

IMPORTANT: Slow blow fuses are of amperage capacity for the circuit in which they are located. Use only authorized parts for replacements.

Ref.AmpFunction

B-140APower Supply for Lamps (Green)

B-250AGlow Plug / Starter (Red)

B-350AAlternator Circuit (Red)

B-430AMain Switch, ECU (Pink)

(C) 7-pin Trailer Socket - Located in the rear side of tractor.

TABLE 15: Function of 7 pins socket

Ref.DINFunction

 LLeft-hand side direction indicator lamp

 52-

 31Ground

 RRight-hand side direction indicator lamp

 58RRight-hand side position lamp

 54q Stop lamps for rear combination lamps

 58LLeft-hand side position lamp

(D) Seat Switch - Located under the seat.

BRAKE FREE-PLAY ADJUSTMENT

(HST TYPE)

FIG. 134: Check free-play of brake pedal (1). Correct free-play, A is 30 to 40 mm.

NOTE: Through use, free-play will increase and brake balance will be affected. Adjust and balance brakes before free-play is excessive.

FIGS. 135 & 136: Loosen both right (2) and left brake rod (3) by turnbuckle (4) until the free-play become more than 40mm.(do not lock yet)

Shorten the left brake rod (3) and set the free-play between 30mm to 40mm, and lock it with lock nuts (5). (tightening torque: 11.8~17.2N･m.

Push the the brake pedal (1) by hand and shorten the right brake rod until the free-play become “0cm”. When the hand, pushing the brake pedal, is pushed back, it means this position is free-play “0“. Then lengthen the right brake rod (2) and set the the freeplay same as left brake rod (3). Then, lock with lock nuts (5).

(Tightening torque: 11.8~17.2N･m)

After adjustment is complete, operate the tractor at low speed. Depress the pedal. If tractor has tendency to “pull” to one side, slight readjustment of one brake is required.

Make sure the lock nuts (5) are secured when brake adjustment is complete.

CAUTION: Brakes must be adjusted evenly to permit equal braking action at both rear wheels when brake pedals are latched together.

(MECHANICAL TRANSMISSION TYPE)

FIG. 137: Check free-play of brake pedal (1). Correct free-play, A is 30 to 40 mm.

NOTE: Through use, free-play will increase and brake balance will be affected. Adjust and balance brakes before free-play is excessive.

FIGS. 138: Loosen the brake rod for adjustment (Right brake rod (2), Left brake rod (3)).

Loosen lock nut (4). Adjust turnbuckle (5), so free-play is correct for respective brake pedal. Repeat procedure for other brake so free-play in pedals is equal. Secure lock nuts against turnbuckles.

When adjustment is complete, latch pedals together and operate tractor at low speed. Depress pedals. If tractor has tendency to “pull” to one side, slight readjustment of one side brake is required.

Make sure lock nuts are secured when brake adjustment is complete. Check operation of parking brakes after adjustment is made.

CAUTION: Brakes must be adjusted evenly to permit equal braking action at both rear wheels when brake pedals are latched together.

CLUTCH FREE-PLAY ADJUSTMENT (MECHANICAL TRANSMISSION TYPE)

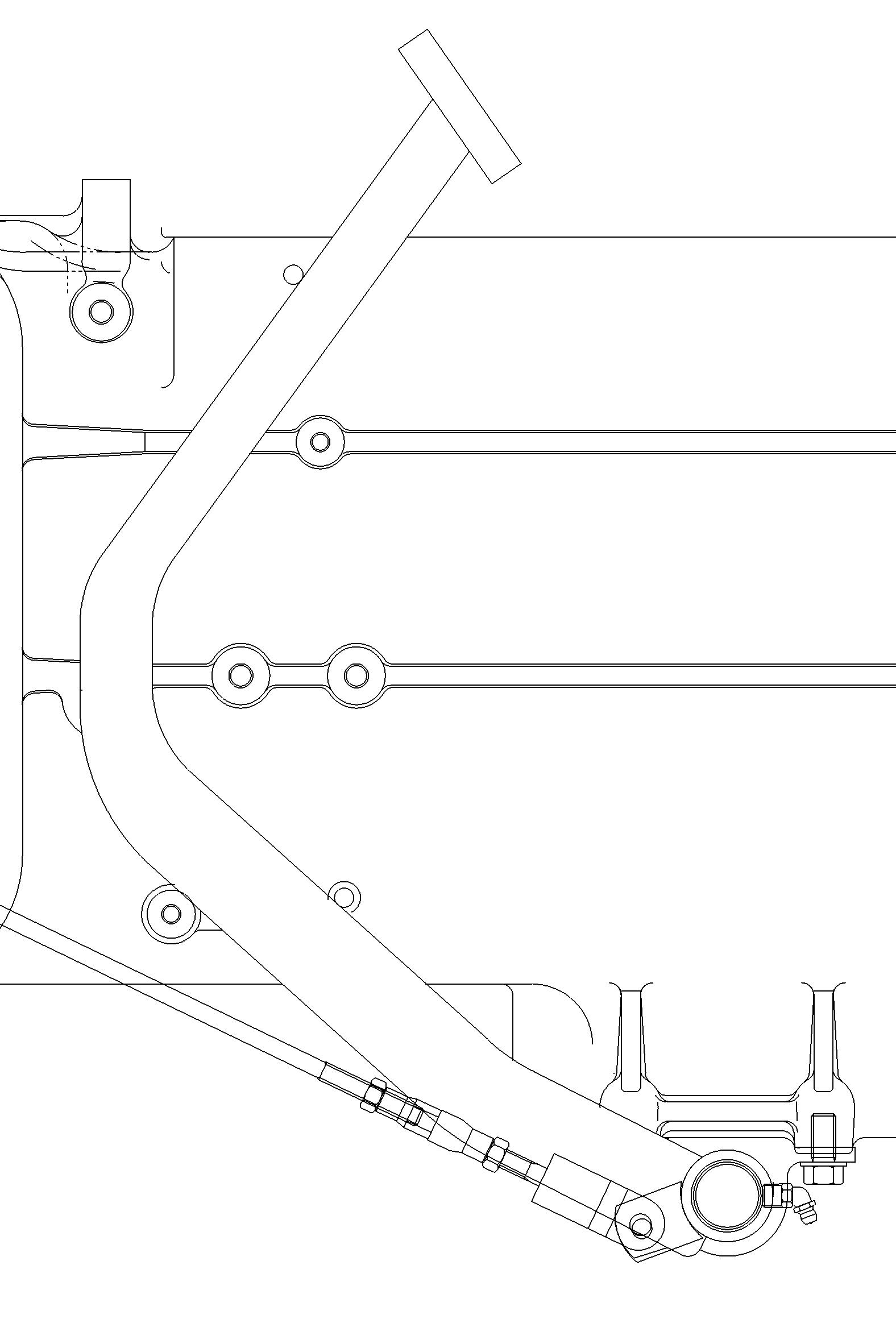

FIG. 139: Check clutch free-play regularly and adjust as necessary. Correct clutch pedal free-play, A, is 20 to 30 mm when measured at the end of the pedal as shown.

NOTE: Through use, clutch free-play will be reduced.

IMPORTANT: Correct free-play must be maintained to reduce wear on clutch and release bearing, and allow complete disengagement when pedal is depressed.

FIG. 140: To adjust clutch pedal free-play, loosen lock nut (1) (left-hand thread), and lock nut (2) (right-hand thread). Adjust turnbuckle (3) until free-play is correct. Lengthening linkage will increase free-play, shortening linkage will reduce free-play.

WHEELS & TIRES

Check wheels and tires periodically for correct inflation pressures, tight wheel bolts, and any physical damage that may be a detriment to tractor operation and operator safety. Correct condition prior to tractor operation.

Tire Inflation Pressures

TABLE 16: Maintaining correct tire pressure will help insure tire life. Never exceed the maximum inflation pressure specified on the tire. If tires have deep scratches, cuts or punctures, the respective tire should be repaired or replaced by qualified personnel as soon as possible.

IMPORTANT: If nece ssary to replace any tire (s), ensure original tire size is used. This is particularly true to ensure correct amount of front axle overspeed (or “lead”) is maintained.

TABLE 16: Tire inflation pressures

Periodically check all wheel bolt torques.

Correct bolt torques:

Front Wheel Bolts .......79.4 - 93.1 N･m

Rear Wheel Bolts........196.0 - 230.3 N m

DANGER: Correct wheel bolt torque must be maintained. Installation of front or midmounted implements (ex: loaders, mowers) impose increased loads and require frequent checking of wheel bolts.

Front Wheel Spacing

FIG. 141: Front 4WD Wheels

TABLE 17: Front wheel setting

LUBRICATION & PERIODIC MAINTENANCE

Rear Wheel Spacing

FIG. 142: Rear Wheels

TABLE 18: Rear wheel setting

(*1)Front

(*2)Front wheel: Agri 240/70R16

CAUTION: Rear wheels are heavy. Use care when moving them. Make sure the tractor is blocked securely. Tighten all wheel bolts securely and recheck after short period of operation.

Steering Free-Play

FIG. 143: Check steering for excessive looseness, as indicated by steering wheel free-play. Maximum freeplay is approximately 30 to 60 mm when measured at the outside of steering wheel rim as shown at “X”.

Excessive free-play can be caused by:

• Loose or worn ball joints

• Worn or damaged steering column shaft / universal joints

• Worn or damaged power steering unit (if equipped)

CAUTION: Excessive steering free-play must be corrected before use. Contact your ISEKI dealer.

Front Wheel Alignment

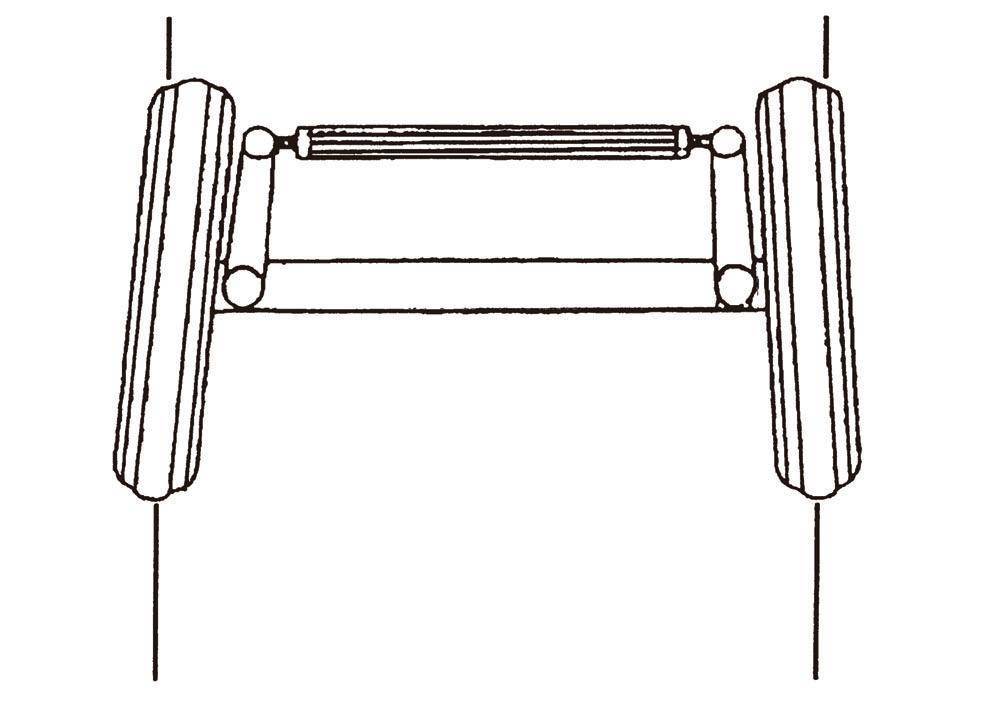

FIG. 144: Correct “toe-in” dimensions of front wheels (A minus B) are as follows:

Toe-in ................................................................2-6 mm

To adjust, loosen lock nuts, 1, and adjust tie rod length by turning turnbuckle, 2. Adjust each side evenly. Ball joints must move freely after lock nuts are tightened.

NOTE: Measure toe-in from tire center to tire center at a point halfway up on face of each tire.

Tie rod

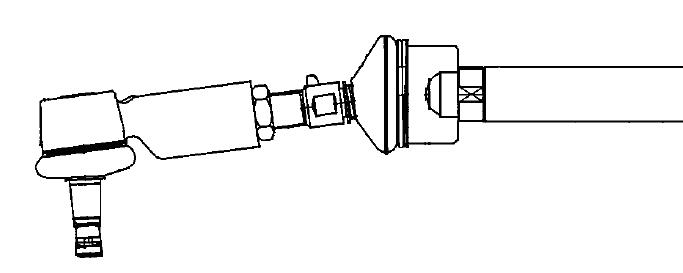

FIG. 145: Make sure that nuts (1) on both tie rod ends (2) are not loosened. If loose, tighten the nuts.

When tie rod is defective, consult your dealer.

WARNING: Take notice that handling may be caught of cause the extreme shaking by the loosened nut. Otherwise it may result in the unexpected accident.

Torque Chart

TABLE 19: All fasteners should be tightened in accordance with the torque chart unless a specific torque value is called out in relevant maintenance information.

FIGS. 146 & 147: If the tractor is to be stored for extended periods such as off-season non-use, certain measures should be taken for its preservation during such periods. These measures will vary according to geographical area and storage season.

1. Replace engine oil and filter. Operate at low idle 5 minutes to lubricate parts.

2. Lubricate all grease fittings and lightly oil control linkage pivots.

3. Detach implements.

4. Store the tractor in an enclosed area, if possible, for protection from weather.

5. Block up the tractor to remove weight from tires and to protect tires from oily or damp floor.

6. Raise and lock the 3-point lift linkage in up position by turning the lowering rate control knob (1) fully clockwise.

7. Fill the fuel tank to prevent condensation from forming on inside of the tank. Turn the fuel cock lever (2) of pre-filter (3) to OFF position.

8. Remove the battery and store in cool dry place. Maintain charge during storage period.

9. If the tractor is stored during cold weather season insure that anti-freeze is adequate. Alternatively, the radiator and engine block may be drained.

10. Check with your diesel fuel supplier on the availability of a diesel fuel additive to place in the fuel system during storage period.

11. If the tractor cannot be placed in an enclosed area place it under some sort of cover and cover exhaust pipe to prevent entrance of rain or snow.

12. For Mechanical transmission type, depress clutch pedal and secure in the disengaged position with hook in order to prevent clutch seizure during long periods of tractor storage.

13. Touch-up scratches with paint.

At the end of storage period: Perform appropriate lubrication and maintenance before placing the tractor back in service. Refer to “Lubrication and Maintenance” section.

• Conduct full pre-start inspection. Make sure all controls operate correctly.

• Allow the engine to idle approximately 30 minutes. Check for leaks and repair as required.

Washing Of The Machine

Wash the machine periodically. Carefully wash the area where mud spatters easily such as fender inner part.

CAUTION: If you use high pressure washer, be sure to use in accordance with operator’s manual and safety label of washer. In case of irregular using, it may cause personal injury and damage to the machine.

CAUTION: Set the nozzle of hose ‘spread’ and keep the distance more than 60 cm in order to avoid damaging to the machine. Especially, be care for not to hit the water to electrical parts and label.

FIG. 148: Unsuitable washing may cause the following accidents;

1. Fire as a result of short circuit or the damage to the electrical parts.

2. Oil leakage as a result of the damage to the hydraulic hose.

3. Damage to the machine.

(1) Label is come off.

(2) Accident occurs by the damaged electrical parts, engine, radiator, and interior.

(3) Rubber parts (tire, seal) and resin parts are damaged.

(4) Paint is come off.
