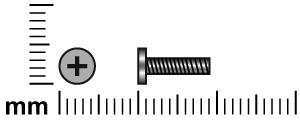

Phillips PM2.0×9.0 screw

Color Quantity Length Thread Head width

Black 20 9.0 mm 2.0 mm 5.0 mm

Where used:

(1) One screw that secures the optical drive to the computer (2) Five screws that secure the switch cover to the computer (3) Two screws that secure the keyboard to the computer

Where used: 2 screws that secure the display assembly to the computer

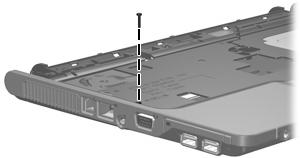

Where used: One screw that secures the base enclosure to the computer

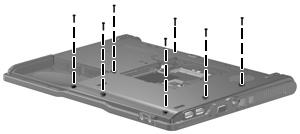

Where used: 7 screws that secure the base enclosure to the computer

Where used:

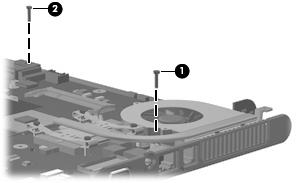

(1) One screw that secures the fan assembly to the computer (2) One screw that secures the speaker to the computer
