Self-Leveling (Option)

Self-leveling automatically keeps the tilt angle of the attachment constant, relative to the ground plane, when the lift arm is raised (A, Figure 68). This feature is especially useful when using pallet forks.

Important: Self-leveling operates only when the lift arm is raised: when the lift arm is lowered (B), self-leveling is not activated.

Note: Self-leveling is activated by default. To deactivate self-leveling, see “Self-Leveling Cancel” on page 104

Self-Leveling Cancel

The self-leveling cancel option allows deactivation of the self-leveling feature when equipped with this option.

To deactivate self-leveling, press the self-level cancel button (E, Figure 69) on the control pad. To restore self-leveling, press button (E) again.

Note: If equipped with this option, selfleveling is activated by default. If the engine is shut off, self-leveling defaults to the activated condition.

Note: Indicator (F) above button (E) is lit when the self-leveling cancel option is on and the self-leveling feature is deactivated. This indicator will light if the unit does not have this installed option.

Using Buckets

Read the “Safety” section in this manual, starting on page 13, before working with a bucket. Pay special attention to the “During Operation” information, starting on page 16. Always follow the information included in the “Safety” section. Serious injury or death can occur if the safety information is not followed.

Always maintain a safe distance from electric power lines and avoid contact with any electrically charged conductor or gas line. Accidental contact or rupture can result in electrocution or an explosion. Contact the “Call Before You Dig” referral system at 8-1-1 in the U.S., or 888-2580808 in the U.S. and Canada or proper local authorities for utility line locations before starting to dig.

Make sure the bucket is securely attached to the hitch before starting work. See “Connecting Attachments” on page 98.

Avoid tilting a bucket back when the lift arm is fully raised. Material may fall over the rear of the bucket and onto the operator. If necessary, fit the rear of the bucket with a guard to prevent material from falling out of the back of the bucket.

Always carry the loaded bucket with the lift arm in the transport position. See “Attachment Transport Position” on page 96. For additional stability when operating on inclines, always travel with the heavier end of the machine toward the top of the incline.

Make sure you have a good view of the material you are digging, and of the area you will be working in.

Use extreme care when digging around foundations or walls. Never remove material that might compromise a wall or foundation.

Never push the “float” button with the bucket or attachment raised, because this will cause the lift arm to fall.

Caution

Follow the recommendations in “Fields of Application” on page 6.

Digging with a Bucket

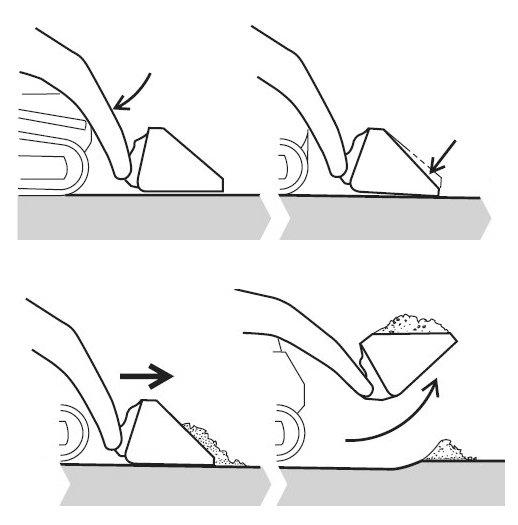

1. (Figure 70) Approach the digging site with the lift arm slightly raised. Tilt the bucket forward until the cutting edge contacts the ground.

2. Tilt the cutting edge of the bucket down at an angle appropriate for ground hardness.

3. Drive forward slowly, digging into the ground with the cutting edge of the bucket and gradually lower the lift arm.

4. When the bucket is full, raise the bucket and tilt it back and back away from the material.

Always carry the loaded bucket with the lift arm in the transport position. See “Attachment Transport Position” on page 96. For additional stability when operating on inclines, always travel with the heavier end of the machine toward the top of the incline.
