Disconnecting Attachments

Position the attachment so that after disconnecting, the attachment will stand safely and not tip over. Serious injury can occur if an attachment tips over onto a person.

1. Empty the attachment and drive to an open, level area to disconnect the attachment.

2. Lower the attachment to the ground.

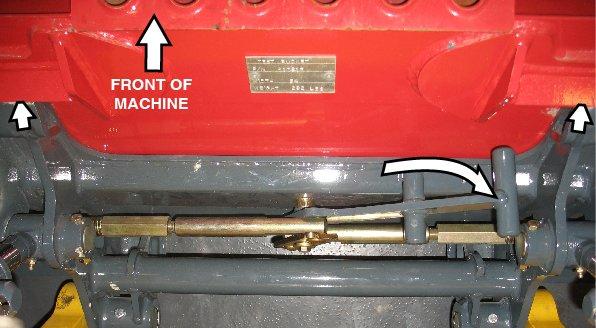

3. Place the attachment lock into the unlocked position (Figure 64):

• All-Tach® system manual hitch: Move hitch lock lever (G) all the way to the right.

• Power-A-Tach® system quick attach hitch: Press the Power-A-Tach® system unlock button (I) on the control keypad until safety flags (H) have moved all the way in.

4. Lower the lift arm until tabs (J) on top of the attachment plate disengage out of hooks (K) on the back of the attachment.

5. Look behind you for bystanders and obstacles. Drive straight back in reverse away from the attachment.
