Table 12: Pre-Start Checks

Check Refer To:

Engine cover securely closed and latched? Rags, tools, debris and other loose objects removed? (check especially after maintenance)

Approved warning triangle, hazard warning light and first aid kit in the machine?

Perform safety interlock system test

Seat position correctly adjusted?

Seat belt fastened?

Checks During Operation

See “Safety Interlock System Test” on page 42.

“Operator’s Seat” on page 39

“Seat Belt” on page 40.

Complete the following checks after starting the engine and during operation.

Table 13: Checks During Operation

Check Refer To: After Starting the Engine/During Operation

Engine oil pressure and charge indicator lights not on?

Parking brake released after starting engine and before operating machine?

Coolant temperature indicator light not on?

Perform restraint bar safety interlock system test.

Steering operating properly?

Engine exhaust excessively smoky? Anyone hazardously close to the machine? When Driving on Public Roads

Attachments in transport position?

“Control Keypad” on page 48

“Control Keypad” on page 48.

See “Restraint Bar Test” on page 42.

“Controls” on page 59

“Attachment Transport Position” on page 96

Cab Entry and Exit

Warning

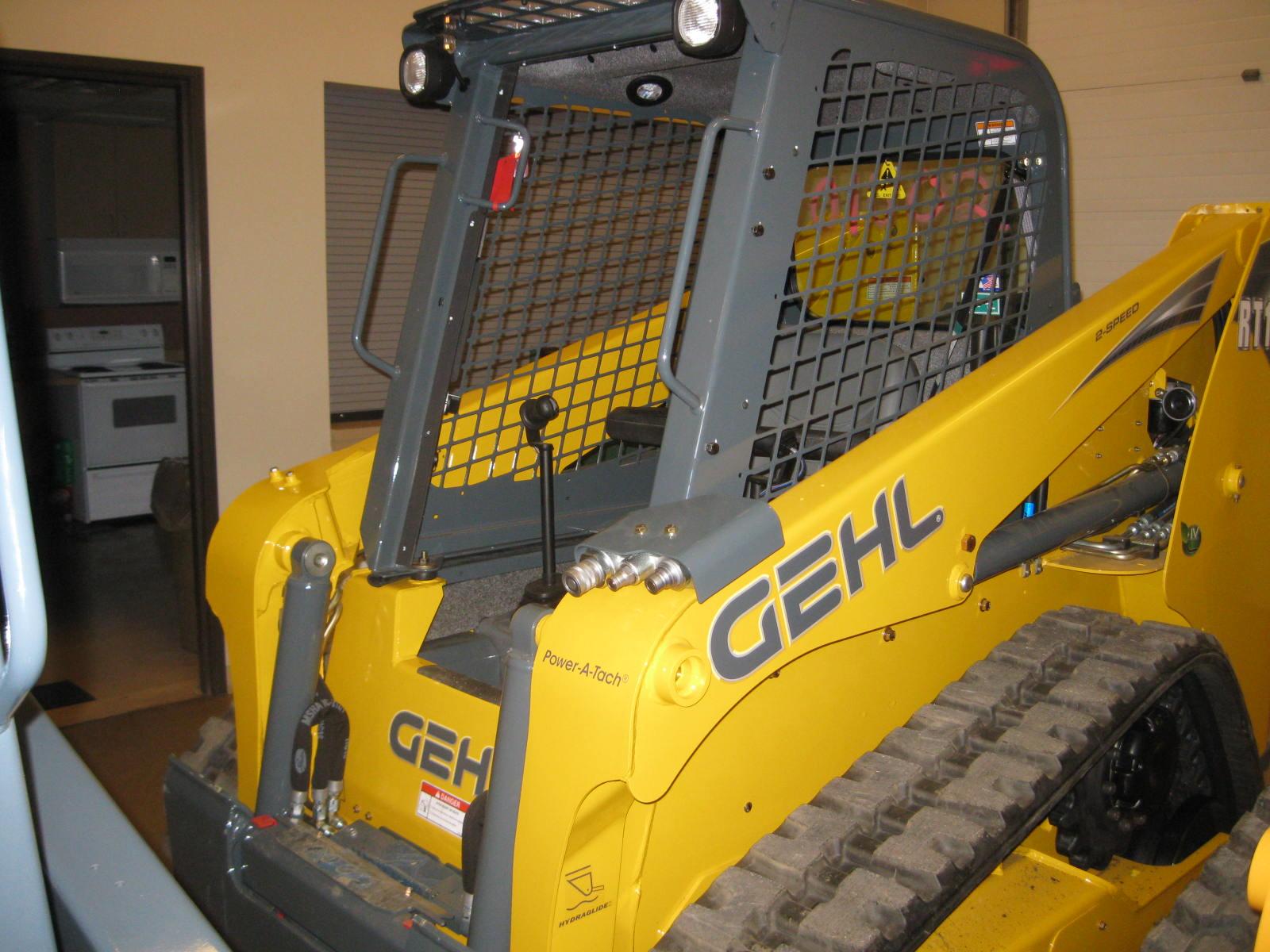

Use only steps (A, Figure 50) and handles (B) on the machine when entering/exiting. Keep the steps and the handles clean to ensure a secure hold at all times. Never use the controls as hand holds. Remove dirt (oil, grease, earth, snow and ice) from handles (B), steps (A) and your shoes before entering the cab. Always face the machine when entering/exiting. When entering/ exiting the cab.

Do not jump on or off the machine. Never climb onto or exit a moving machine.

Opening/Closing the Cab Door (Option)

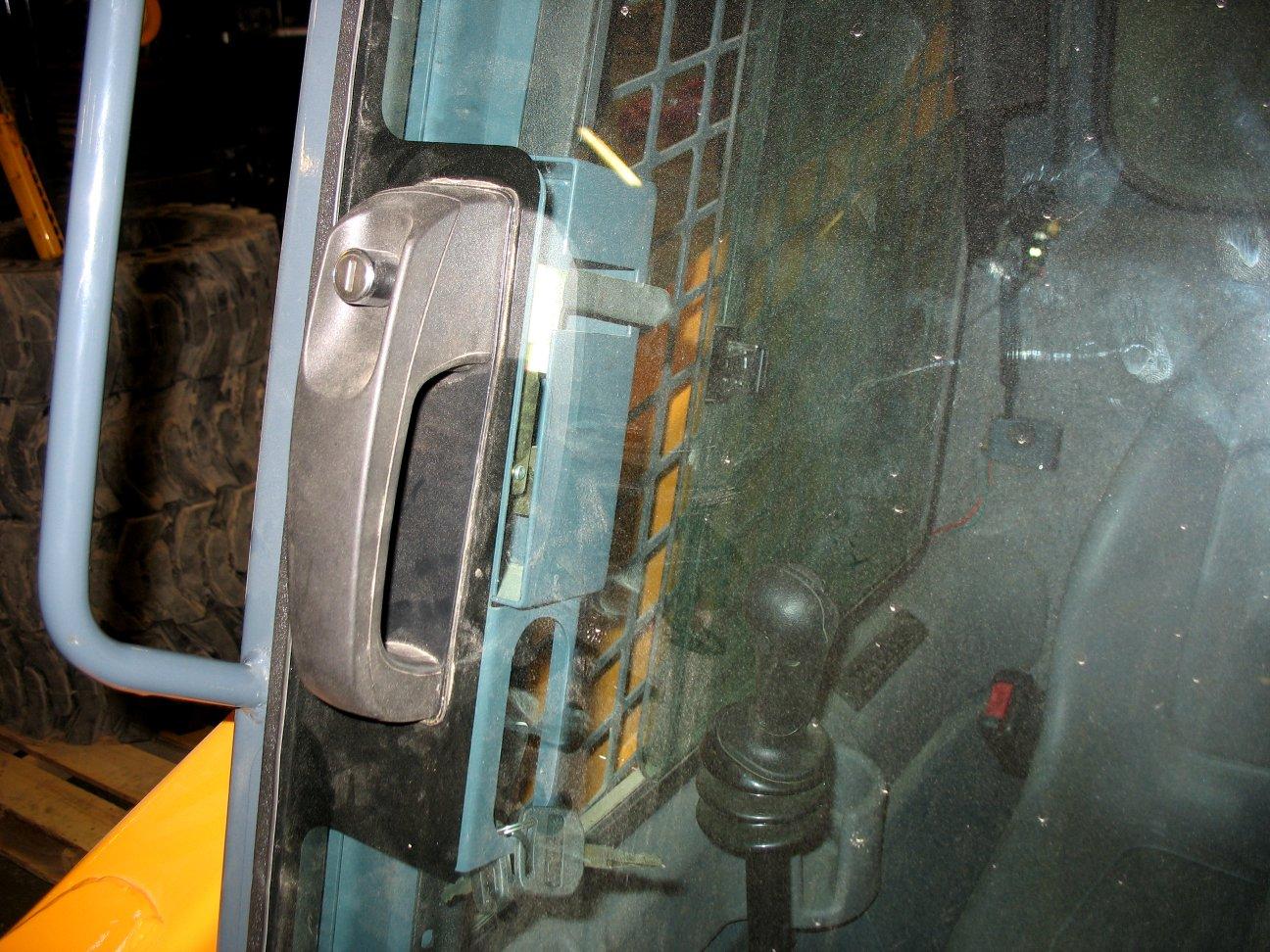

Operate the door latch outside the cab using button (C, Figure 51) on the exterior door handle.

Lock/unlock the door using the ignition key in the key slot in button (C).

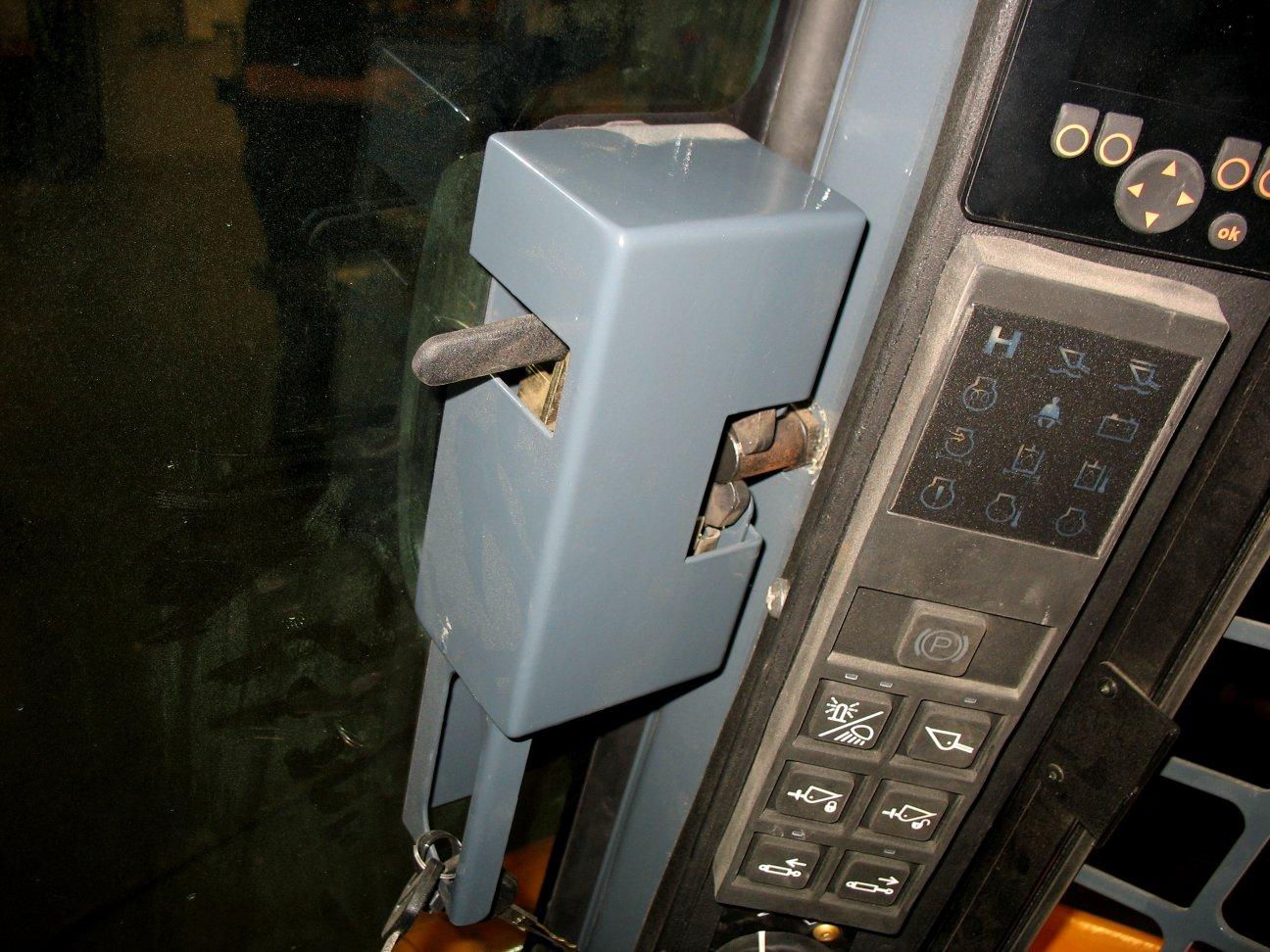

Operate the door latch inside the cab using lever (D, Figure 52) located along the interior door frame.

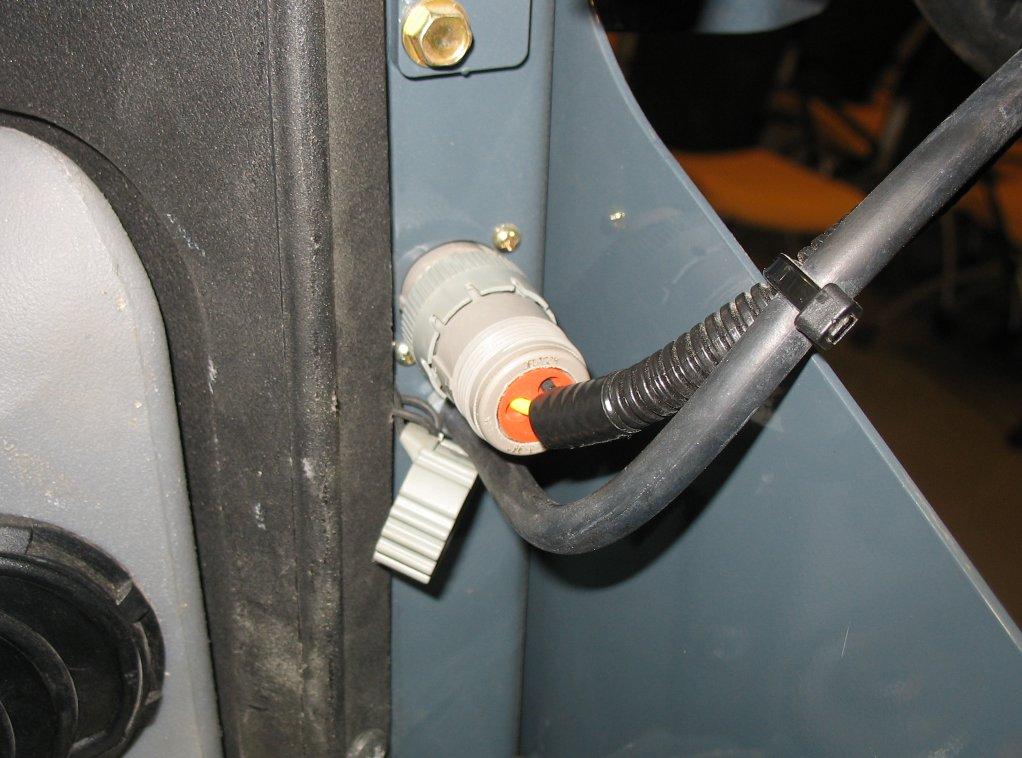

Important: If the door is removed for any reason, make sure to re-connect the door electrical connection (E, Figure 53) when the door is replaced.

Operating the machine with the door electrical connection (E) disconnected can result in damage to the machine not covered under warranty.
