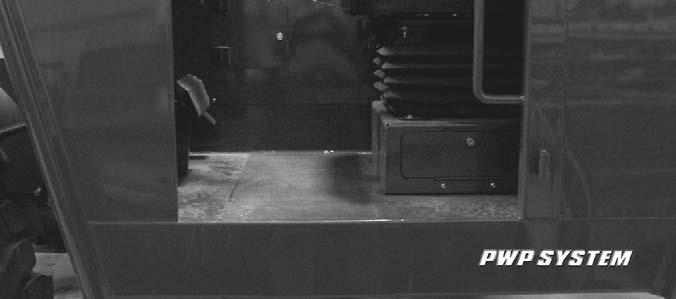

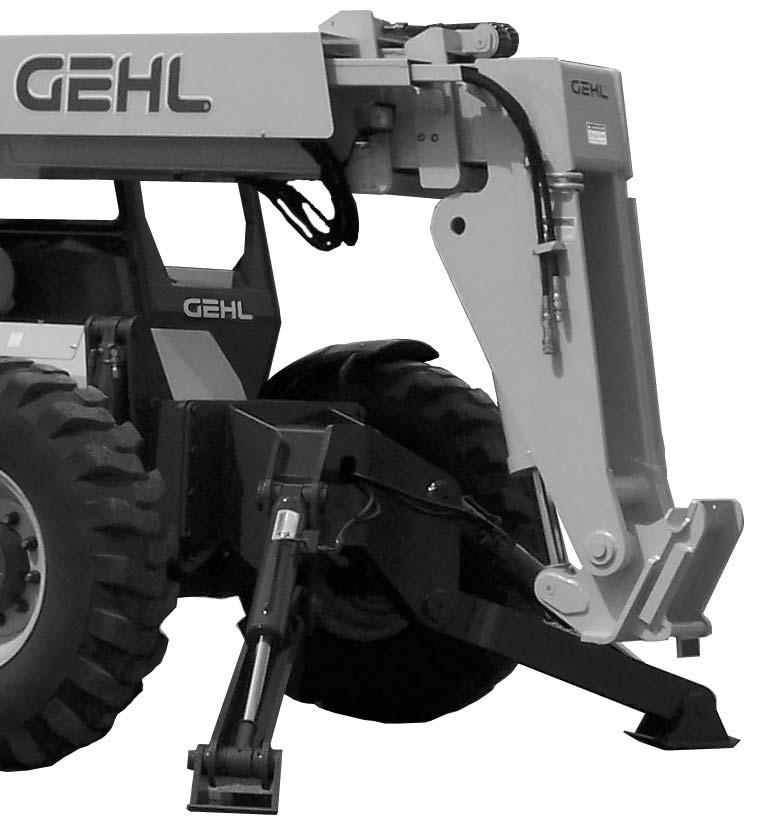

PWP SYSTEM OPERATIONAL TROUBLESHOOTING

from Gehl RS6-42 GEN2 RS8-42 44 GEN2 RS9-50 GEN2 RS10-44 55 GEN2 RS12-42 GEN2 Handler Operator's Manual

by www.heydownloads.com

Pre-Start Walk-Around Inspection Illustration

Problem

PWP System mode lamp flashes when switch is turned “ON.”

Parking brake does not engage when the PWP System switch is turned “ON.”

Carriage tilt and auxiliary functions continue operating when the PWP System switch is turned “ON.”

Transmission does not remain de-clutched when shifted into “FORWARD or REVERSE” when the PWP switch is “ON.”

Possible Cause

Remedy

Boom control functions do not operate.

PWP System is not activated.

With PWP System switch “ON,” apply service brakes for three seconds until PWP mode lamp is on continously.

PWP System mode lamp flashes when switch is turned “OFF.”

Parking brake lamp stays “ON” when PWP System switch is turned “OFF.”

Machine is not level.

Remote PWP System switch is de-activated.

Remote PWP System switch is not plugged into the connector at the end of the boom.

PWP System angle sensor is unplugged or faulty.

Level the machine. Activate the remote PWP System switch.

Plug in and engage the remote PWP System switch.

PWP System is not de-activated.

Contact your Gehl dealer for assistance. With engine running, apply service brakes for three seconds until PWP mode lamp goes off.

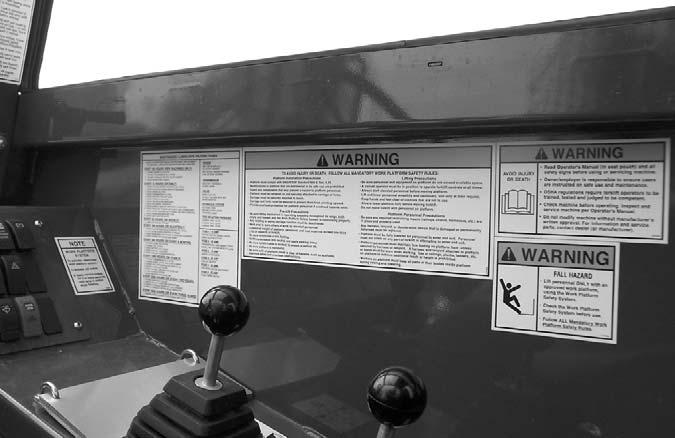

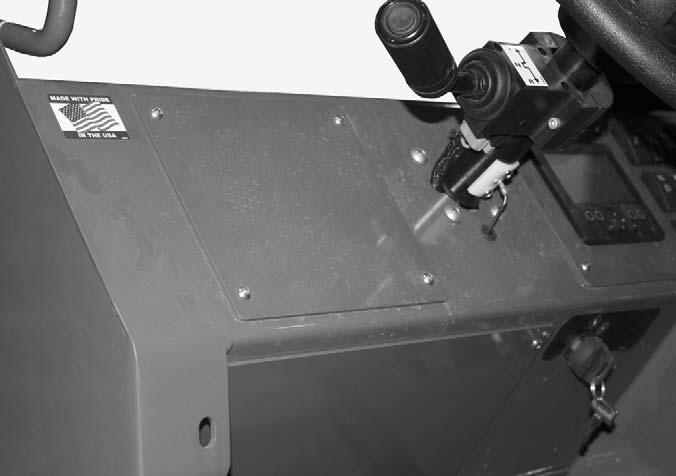

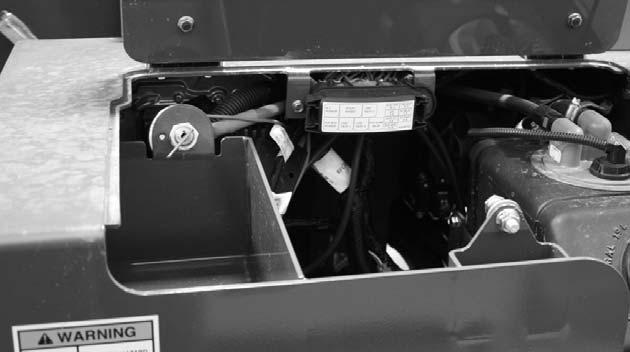

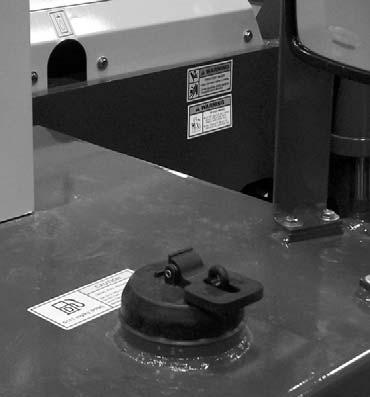

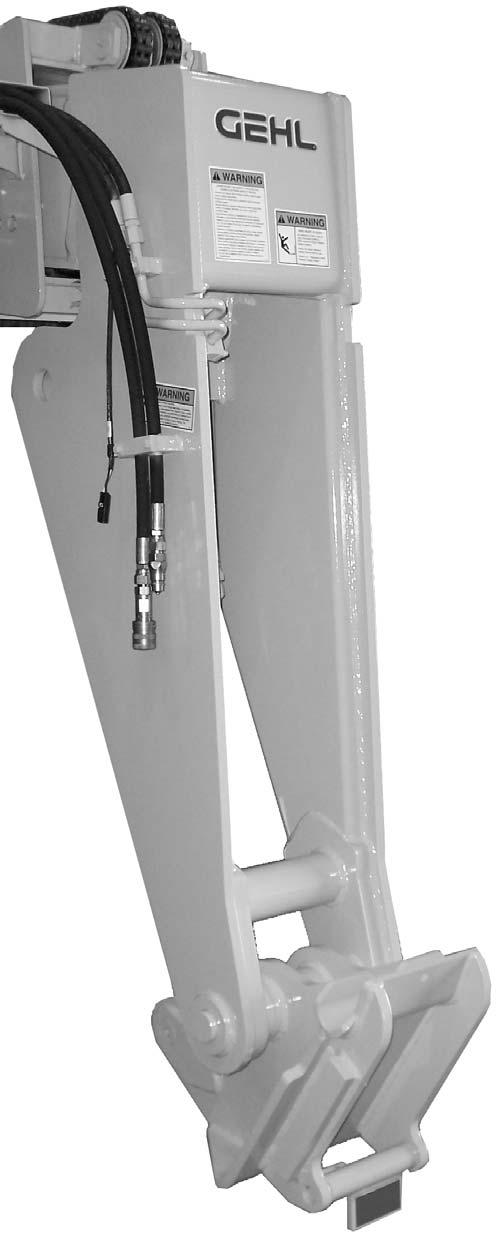

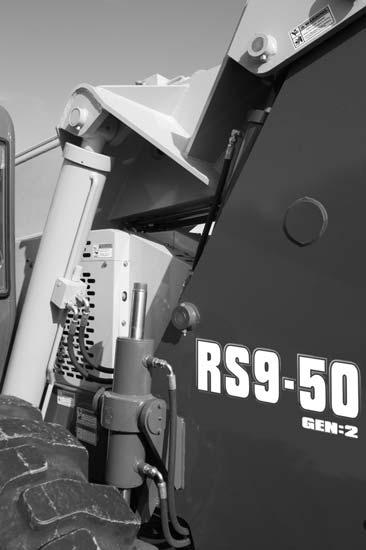

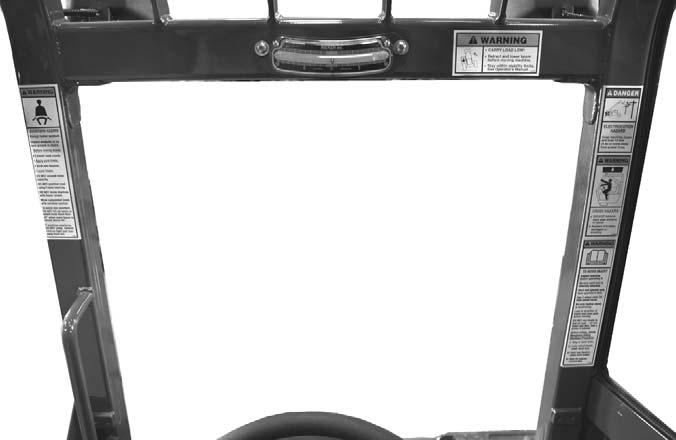

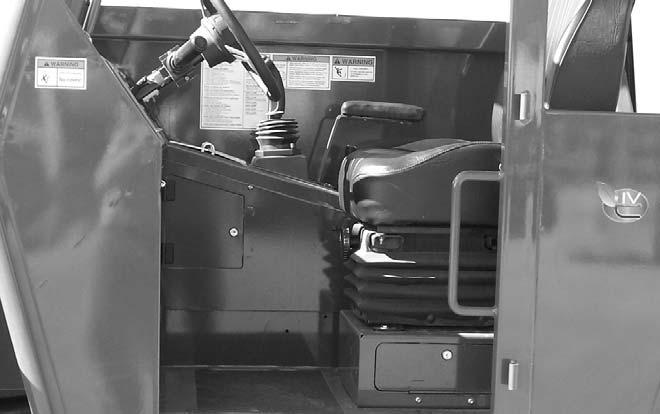

Chapter 9 Decal Locations

General Information

Caution

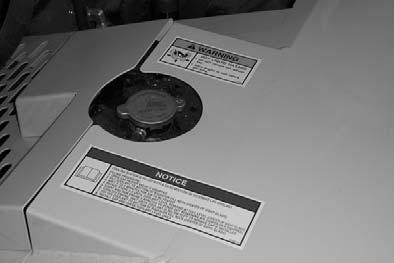

ALWAYS read and follow the safety precautions on decals. Replace decals if they are damaged, or if the unit is repainted. If repainting, BE SURE that all applicable decals are affixed in their proper locations.

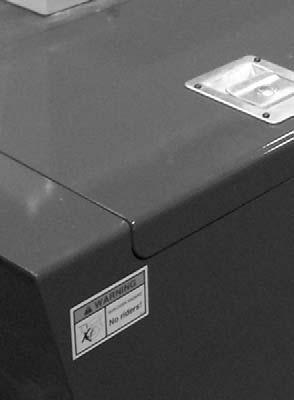

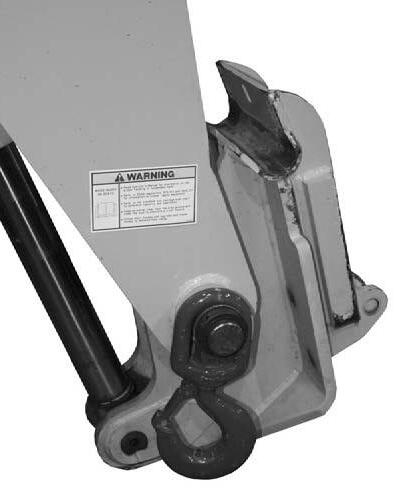

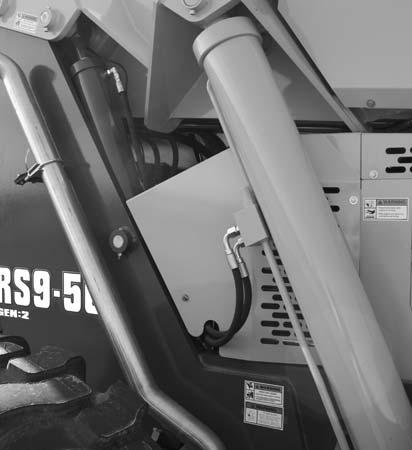

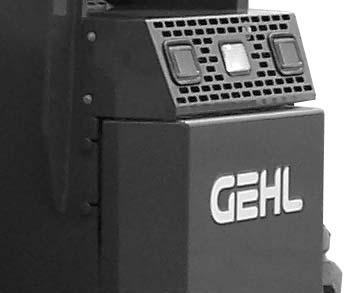

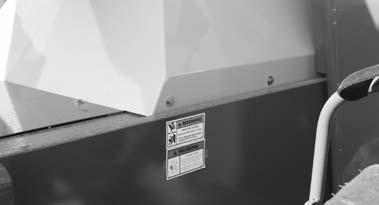

Decal locations information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted.

For correct replacement of decals, compare the location illustrations to the machine before starting to refinish the unit. Check off each required decal using the illustration reference number to find the part number, description and quantity in the list. Refer to the appropriate illustrations for replacement locations.

If there is a decal on a part that is being replaced, be sure that the decal is applied to the replacement part.

New Decal Application

Before applying the new decals, surfaces must be free from dirt, dust, grease and other foreign material. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth out decal surface. To apply a die-cut decal, first remove the backing paper. Then, properly orient and position the decal onto the clean mounting surface. After the decal is firmly applied and smoothly pressed down, remove the front covering paper.

Decal Kits

50220885RS6-42 Telescopic Handler without PWP

50220886RS6-42 Telescopic Handler with PWP

50220887RS8-42 Telescopic Handler without PWP

50220888RS8-42 Telescopic Handler with PWP

50220889RS8-44 Telescopic Handler without PWP

50220890RS8-44 Telescopic Handler with PWP

50221033RS9-50 Telescopic Handler without PWP

50221034RS9-50 Telescopic Handler with PWP

50220891RS10-44 Telescopic Handler without PWP

50220892RS10-44 Telescopic Handler with PWP

50220893RS10-55 Telescopic Handler without PWP

50220894RS10-55 Telescopic Handler with PWP

50220895RS12-42 Telescopic Handler without PWP

50220896RS12-42 Telescopic Handler with PWP

NOTE: Decals may be purchased in kits or individually.

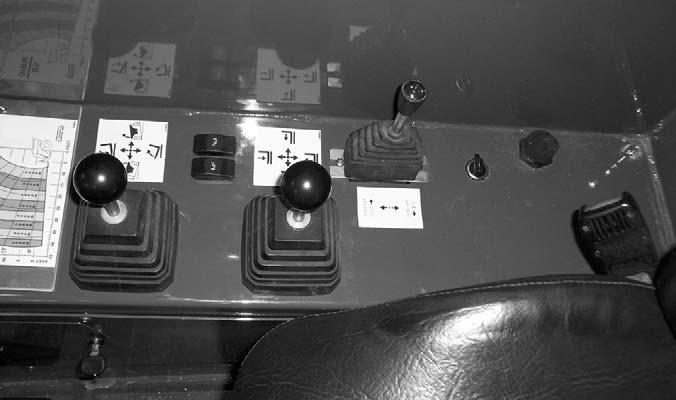

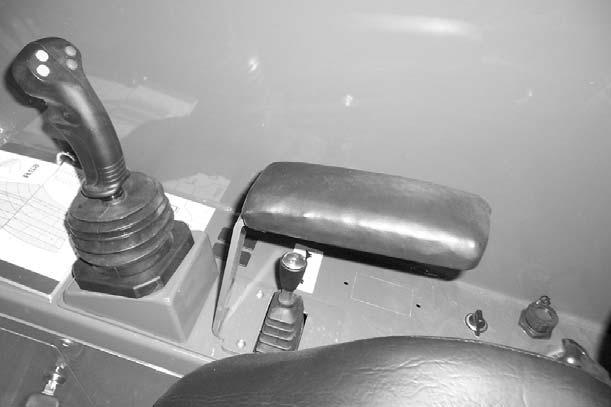

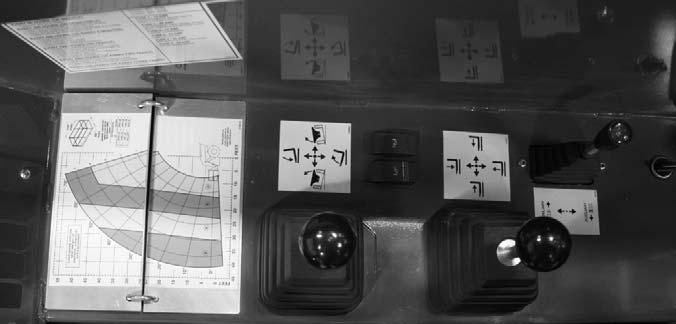

NOTE: Decal kits contain decals for both control configuations. Refer to the following reference pages to determine the correct control decals for the machine.
